Kenmore 720-0773

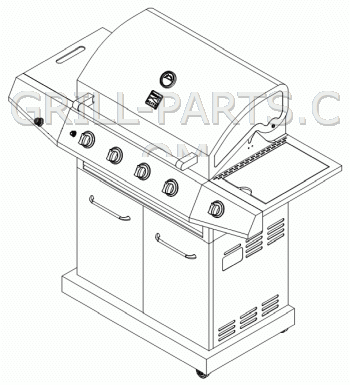

Kenmore 4-Burner LP Gas Grill with side burner



Highest quality replacement parts for your Kenmore 720-0773 - Free USA shipping $49 or more* - No Sales Tax*



Kenmore 720-0773 owners manual and diagrams
Click the small images on the right to view Kenmore 720-0773 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Kenmore 720-0773-32499922531-PartsExpS1.gif  Kenmore 720-0773-32499922531-PartsLstS1.gif

Replacement gas grill parts for Kenmore model: 720-0773
This page shows all of the parts we know fit model Kenmore 720-0773. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Kenmore grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Kenmore 720-0773 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



720-0773 Burners

Stainless Steel tube burner for Kenmore model 720-0773.

Part Number: CBP10
Dimensions: 14 7/8” x 1”
Material: stainless steel
Weight: .40

$37.00

Qty


Stainless steel burner for Kenmore model 720-0773.

Part Number: NGKT1
Dimensions: 14 7/8” x 1”
Material: stainless steel
Weight: 1.0

$33.61

Qty








720-0773 Cooking Grids

Premium quality stainless steel cooking grid for Kenmore model 720-0773. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it..

  • 304 commercial grade stainless steel
  • Solid rod diameter 1/4”
  • Made in USA.
  • Sold individually.


Part Number: CLA-GS0189
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 13 1/8”
Material: stainless steel
Weight: 4.7

$56.30

Qty


Cast iron cooking grids for Kenmore model 720-0773. Porcelain enameled, glossy finish. Sold as a set of two (2).

Part Number: 66342
Dimension Front-to-Back: 17 1/4”
Dimension Side-to-Side: 26 1/2”
Material: gloss cast iron
Weight: 10.1

$78.11

Qty








720-0773 Heat Plates

Heat Plate / Flame tamer for Kenmore model 720-0773.

Part Number: CBHP10
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 4 5/8”
Material: stainless steel
Weight: 1.0

$27.95

Qty








720-0773 Igniter Components

Universal extention wire, male spade end & female round end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.37

Qty


Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B
Weight: 0.3

$31.52

Qty


46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 03750
Dimensions: 1/16
Weight: 0.05

$5.77

Qty


Electrode with 24.5” wire that has a female spade/flat end. To lengthen the wire use adapter # 03198 and extension wire # 03750.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04432
Dimensions: 4”
Material: ceramic
Weight: 0.1

$9.89

Qty








720-0773 Heat indicators and Meat Thermometers

Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.
  • Requires minimum 3/8” mounting hole
  • Single 1 3/8” probe
  • Threaded portion of probe stops at 1/2” from base
  • See photo for details


Part Number: 00012
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

$15.16

Qty








720-0773 Accessories

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

$24.00
SALE  $19.49
Qty


15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92

Qty


EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty
