Kenmore 119.176790 Grill Parts

Highest quality replacement parts for your Kenmore 119.176790 - Free USA shipping $49 or more* - No Sales Tax*

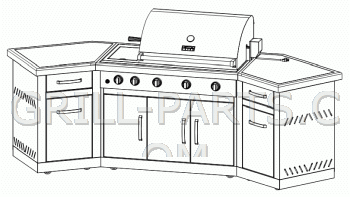

Kenmore 119.176790 owners manual and diagrams

Click the small images on the right to view Kenmore 119.176790 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Kenmore 119.176790-38800823209839-PartsExpS1.gif

Kenmore 119.176790-38800823209839-PartsLstS1.gif

Kenmore 119.176790-38800823209839-PartsLstS2.gif

Kenmore 119.176790-38800823209839-PartsLstS3.gif

Replacement grill parts for the Kenmore model: 119.176790

All of the parts we have for Kenmore 119.176790 are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Kenmore grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Kenmore 119.176790 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

119.176790 Burners

Click for photos

Stainless steel burner for Kenmore model 119.176790.

Part Number: SCTB2 (Replaces Kenmore SD0001-1)
Dimensions: 15 1/2” x 4 3/4”
Material: stainless steel
Weight: 1.0

==> All Kenmore Burners.

119.176790 Cooking Grids

Cooking grid not known for Kenmore model 119.176790. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Kenmore cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

==> All Kenmore Cooking Grids.

119.176790 Heat Plates

Click for photos

Stainless steel heat plate for Kenmore model 119.176790.

Part Number: SCHP2 (Replaces Kenmore SA0021-1)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 8 1/8”
Material: stainless steel
Weight: 1.3

Click for photos

SET OF THREE/3 PACK Stainless steel heat diffuser for Kenmore model 119.176790. On some grill models it is also known as a Flame Tamer. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0151-X3
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 8 1/16”
Material: stainless steel
Weight: 4.05

==> All Kenmore Heat Plates.

119.176790 Heat indicators and Meat Thermometers

Click for photos

Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.

Requires minimum 3/8” mounting hole
Single 1 3/8” probe
Threaded portion of probe stops at 1/2” from base
See photo for details

Part Number: 00012 (Replaces Kenmore SE0076)
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

==> All Kenmore Heat indicators and Meat Thermometers.

119.176790 Accessories

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All 119.176790 Accessories.
