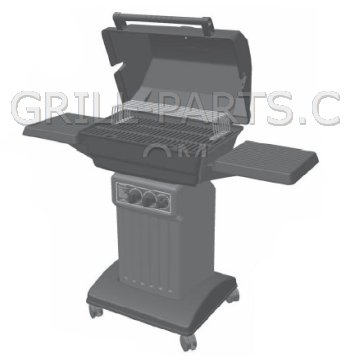

Great Outdoors 8100LP Grill Parts

AZ001503-R Replacement cast iron burner for Great Outdoors model 8100LP. Includes venturi mounting bolts. Venturi not included, sold separately. Replaces original Great Outdoors part# AZ001503.

Fits models:

• 8000
• 8100
• 8500

NOTE: The original Great Outdoors cast brass and cast iron burners are no longer available. This replacement burner is slightly smaller, but fully functional. It's ”legs” are not threaded, so it simply sits in the bottom of the grill.

Part Number: AZ001503-R (Replaces Great Outdoors AZ001503)
Dimensions: 15 1/2” x 8”
Material: cast iron
Weight: 7.7

Replacement stainless steel burner for Great Outdoors model 8100LP. Includes venturi mounting bolts/screws. Venturi not included, sold separately.

NOTE: The original cast brass and cast iron burners are no longer available. This replacement stainless steel version is slightly smaller, but supports the same amount of gas with good heat distribution. The stainless steel version will not screw down into the base of the grill, but simply sits in the bottom of the grill using adjustable support brackets, which are included.

Part Number: AZ001503-SS
Dimensions: 15 7/8” x 8”
Material: stainless steel
Weight: 2.5

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

AZ000506-R Replacement venturi tube. Includes gasket and screws. Replaces original Great Outdoors part# AZ000506.

Fits models:

• 5500
• 8000
• 8100
• 8500

Part Number: AZ000506-R (Replaces Great Outdoors AZ000506)
Dimensions: 5 1/2” x 1 1/2”
Material: zinc plated steel
Weight: 0.7

AF000102-MCI Cooking Grid for Great Outdoors 1000, 8000, 8100, and 8500 series grills for Great Outdoors model 8100LP. Porcelain treated, matte finish cast iron. Sold as a set of three (3).

These grills came originally with either two (2) porcelain cast iron grids (original part# AZ001600), or two (2) porcelain coated steel wire grids (original part# AF000102). The original grids are no longer available. This grid is a about 1/8” shorter than the original but fully functional and a good replacement for AF001600 if you like cast iron cooking grids.

Part Number: AF000102-MCI (Replaces Great Outdoors AF000102)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 12.0

AZ001600-MCI Cooking Grids - Set of Three (3) for Great Outdoors 1000, 8000, 8100, and 8500 series grills for Great Outdoors model 8100LP. Porcelain treated, matte finish cast iron; three (3) panels are required.

These grills came originally with either two (2) porcelain cast iron grids (original part# AZ001600), or two (2) porcelain coated steel wire grids (original part# AF000102). The original grids are no longer available. This grid is a about 1/8” shorter than the original but fully functional and a good replacement for AF001600 if you like cast iron cooking grids.

Part Number: AZ001600-MCI (Replaces Great Outdoors AZ001600)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 12.0

AF000102-SS Cooking Grid for Great Outdoors 1000, 8000, 8100, and 8500 series BBQ grills for Great Outdoors model 8100LP. Heavy duty stainless steel. If you're looking for the best, you've found it. Each panel is over 7 pounds of solid stainless.

• Large diameter 5/16” stainless steel rods.
• Commercial grade 304 stainless.
• Sold individally.
• Made in USA.

Originally equipped with either two (2) porcelain coated steel wire grids (original part# AF000102), or two (2) porcelain cast iron grids (original part# AZ001600), these parts are no longer available. This stainless part is a high quality replacement for AF001600. The grid is slightly wider than the original, creating a snug fit.

.

Part Number: AF000102-SS
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 12 5/8”
Material: stainless steel
Weight: 7.2

AZ001600-SS Cooking Grid for Great Outdoors 1000, 8000, 8100, and 8500 series BBQ grills for Great Outdoors model 8100LP. Heavy duty stainless steel. If you're looking for the best, you've found it. Each panel is over 7 pounds of solid stainless.

• Large diameter 5/16” stainless steel rods.
• Commercial grade 304 stainless.
• Sold individally.
• Made in USA.

Originally equipped with either two (2) porcelain coated steel wire grids (original part# AF000102), or two (2) porcelain cast iron grids (original part# AZ001600), these parts are no longer available. This stainless part is a high quality replacement for AF001600. The grid is slightly wider than the original, creating a snug fit.

Part Number: AZ001600-SS
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 12 5/8”
Material: stainless steel
Weight: 7.2

Carbon steel rock grate with 1/4” rods. Made in USA.

Part Number: CLA-RX0010 (Replaces Great Outdoors AF000202)
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 22 5/8”
Material: carbon steel
Weight: 5.3

Heat Plate/ Flame Tamer not known for Great Outdoors model 8100LP. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Heat Shield. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0067 (Replaces Great Outdoors AI000204)
Dimensions: 10 1/4” x 16 3/8”
Material: stainless steel
Weight: 1.4

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Ignitor collector box and electrode for thru casting mounts. Preassembled. Includes:

• Collector box and ceramic electrode with male spade connector
• Locking nuts and washer
• Ground lug (not shown)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-4B (Replaces Great Outdoors AN000103)
Weight: 0.3

Collector box and ceramic electrode with male spade connector. Will not work with original wire, which is attached directly to the original electrode. Requires two (2) 03400 wires with female spade connectors. Mounts perpendicular through casting with threaded rod and locking nuts. Includes igniter ground lug, no wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03800 (Replaces Great Outdoors AN000103)
Material: ceramic
Weight: 0.2

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B (Replaces Great Outdoors AN000203)
Weight: 0.02

Universal two outlet rotary spark generator. Includes knob and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-6B (Replaces Great Outdoors AN000303)
Weight: 0.3

Premium quality polyester lined vinyl cover, E-Z on velcro tabs. For large grills, full length.

• 60” left to right
• 20” front to back
• 42” top to bottom

Please measure your grill to determine which cover fits best. Avoid too snug a fit as a slightly oversized cover is easier to take off and put back on.

Part Number: CV-4PREM
Material: Vinyl
Weight: 3.5

Silver plastic control knob. Replaces original part# 50002552. Can also be used to replace knob part# AZ000703.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 8mm
• Knob shaft: None

Part Number: 02552 (Replaces Great Outdoors AZ000703)
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

Premium quality stainless steel warming rack. You simply can't buy a better quality warming rack than this, which weighs in at almost 5lbs of solid 304 grade stainless steel. This super heavy-duty warming rack was made to replace AF000303, the porcelain coated steel racks found on BBQ grills made by The Great Outdoors Grill Company, but can fit in any grill with 23 inches or more for the rack to sit on.

• Far superior to the original porcelain coated steel rack
• Rests on your existing cooking grids.
• Solid 1/4” 304 stainless steel rods.
• Stands 3 inches tall.
• Made in USA.

WARNING: Before ordering this universal rack, please verify your grill has enough space to accomodate it. At least 23” inside the closed lid is required.

Part Number: AF000303-SS (Replaces Great Outdoors AF000303)
Dimensions: 6 1/4” x 22 3/4”
Material: stainless steel
Weight: 4.8

T manifold for twin valves with 3/8” male flare. Use with hose & regulator #80012.

Part Number: 34100
Dimensions: 2” x 1 5/16”
Material: brass
Weight: 0.3

Durable 2 5/16” round briquettes

• Self-cleaning
• Control flare-ups while holding an even heat pattern.
• About 53 pieces, covers approximately 275 sq. inches.
• Fits all gas grills

Part Number: BQ-5 (Replaces Great Outdoors AQ000102)
Weight: 7.2

High quality, long lasting ceramic briquettes. 59 flat top pyramid-shaped briquettes per box. Placed 1/2” apart, 59 briquetes will cover about 368 square inches. This is an area roughly 15” x 24”.

• Top quality product
• Each briquette measure 2” x 2”
• Self cleaning
• Great heat distibution, retains heat longer
• Can be used on all grills that use briquettes or lava rock
• Use a single layer (multiple layers can reduce temperatures)

NOTE: These high quality ceramic briquetes are available in 59 count, 70 count, and 90 count qantities.

• 59 briquetes covers an area apprimately 15” x 24”
• 70 briquetes covers an area apprimately 17” x 26”
• 90 briquetes covers an area apprimately 17” x 33”

Part Number: CLA-AC0394
Dimensions: 2” x 2”
Material: ceramic
Weight: 7.65

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8
