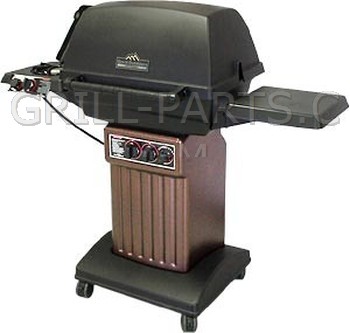

Great Outdoors 7500W Grill Parts

Replacement stainless steel burner for Great Outdoors model 7500W. Includes venturi mounting bolts/screws. Venturi not included, sold separately.

NOTE: The original cast brass and cast iron burners are no longer available. This replacement stainless steel version is slightly smaller, but supports the same amount of gas with good heat distribution. The stainless steel version will not screw down into the base of the grill, but simply sits in the bottom of the grill using adjustable support brackets, which are included.

Part Number: AZ001504-SS
Dimensions: 15 7/8” x 8”
Material: stainless steel
Weight: 2.5

AZ001504-R Replacement cast iron burner for Great Outdoors model 7500W. Includes venturi mounting bolts. Venturi not included, sold separately. Replaces original Great Outdoors part# AZ001504.

Fits models:

• 5500
• 6000
• 6100
• 7000
• 7500

NOTE: The original Great Outdoors cast brass and cast iron burners are no longer available. This replacement burner is slightly larger, but fully functional. It's ”legs” are not threaded, so it simply sits in the bottom of the grill.

Part Number: AZ001504-R (Replaces Great Outdoors AZ001504)
Dimensions: 15 1/2” x 8”
Material: cast iron
Weight: 7.0

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

AZ000505-R Replacement venturi tube. Includes gasket and screws. Replaces original Great Outdoors part# AZ000505.

Fits models:

• 6000
• 6100
• 7000
• 7500

Part Number: AZ000505-R (Replaces Great Outdoors AZ000505)
Dimensions: 2 15/16” x 4 1/8”
Material: zinc plated steel
Weight: 0.7

Cast iron cooking grids for Great Outdoors model 7500W. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 61602
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 23 1/2”
Material: matte cast iron
Weight: 12.8

Stainless Steel cooking grid for Great Outdoors model 7500W.

• Made in USA
• Solid 1/4” 304 stainless rods
• Each panel measures 15” x 11 3/8”

Part Number: CG-12SS
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 11 3/8”
Material: stainless steel
Weight: 3.40

Stainless Steel cooking grids for Great Outdoors model 7500W. SET OF TWO (2) panels.

• Made in USA
• Solid 1/4” 304 stainless rods
• Each panel measures 15” x 11 3/8”
• Overall dimensions: 18 1/4” x 22 3/4”

Part Number: CG-12SS-X2 (Replaces Great Outdoors AF000105)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 22 3/4”
Material: stainless steel
Weight: 6.8

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-7 (Replaces Great Outdoors AF000205)
Dimension Front-to-Back: 12 3/4”
Dimension Side-to-Side: 20”
Material: carbon steel
Weight: 4.2

Heat Plate/ Flame Tamer not known for Great Outdoors model 7500W. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Heat Shield. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0067 (Replaces Great Outdoors AI000204)
Dimensions: 10 1/4” x 16 3/8”
Material: stainless steel
Weight: 1.4

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Ignitor collector box and electrode for thru casting mounts. Preassembled. Includes:

• Collector box and ceramic electrode with male spade connector
• Locking nuts and washer
• Ground lug (not shown)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-4B (Replaces Great Outdoors AN000103)
Weight: 0.3

Collector box and ceramic electrode with male spade connector. Will not work with original wire, which is attached directly to the original electrode. Requires two (2) 03400 wires with female spade connectors. Mounts perpendicular through casting with threaded rod and locking nuts. Includes igniter ground lug, no wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03800 (Replaces Great Outdoors AN000103)
Material: ceramic
Weight: 0.2

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B (Replaces Great Outdoors AN000203)
Weight: 0.02

Universal two outlet rotary spark generator. Includes knob and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-6B (Replaces Great Outdoors AN000303)
Weight: 0.3

Premium quality polyester lined vinyl cover, E-Z on velcro tabs. For large grills, full length.

• 60” left to right
• 20” front to back
• 42” top to bottom

Please measure your grill to determine which cover fits best. Avoid too snug a fit as a slightly oversized cover is easier to take off and put back on.

Part Number: CV-4PREM
Material: Vinyl
Weight: 3.5

Silver plastic control knob. Replaces original part# 50002552. Can also be used to replace knob part# AZ000703.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 8mm
• Knob shaft: None

Part Number: 02552 (Replaces Great Outdoors AZ000703)
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Premium quality stainless steel warming rack. You simply can't buy a better quality warming rack than this, which weighs in at almost 5lbs of solid 304 grade stainless steel. This super heavy-duty warming rack was made to replace AF000303, the porcelain coated steel racks found on BBQ grills made by The Great Outdoors Grill Company, but can fit in any grill with 23 inches or more for the rack to sit on.

• Far superior to the original porcelain coated steel rack
• Rests on your existing cooking grids.
• Solid 1/4” 304 stainless steel rods.
• Stands 3 inches tall.
• Made in USA.

WARNING: Before ordering this universal rack, please verify your grill has enough space to accomodate it. At least 23” inside the closed lid is required.

Part Number: AF000303-SS (Replaces Great Outdoors AF000303)
Dimensions: 6 1/4” x 22 3/4”
Material: stainless steel
Weight: 4.8

Universal four piece mini thermometer set. Great gift idea.

• 2 calibrated for steak, and 2 for chicken
• Mini thermometers for testing doneness of individual cuts of meat
• Silicone bezels for easy removal when hot
• Always use caution when handling hot objects

Part Number: 11381
Weight: .25

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

Rib & Roast Rack.

Reversible rib rack and roast support. Made of stainless steel with a frame that holds 6 racks of ribs and a roast support for large cuts of meat.

Part Number: 41616
Material: stainless steel
Weight: 0.5

Stuffed Burger Press

The stuffed burger press is the best way to make gourmet stuffed and regular burger patties right at home. Easy to disassemble and clean.

Part Number: 24795
Weight: .3
