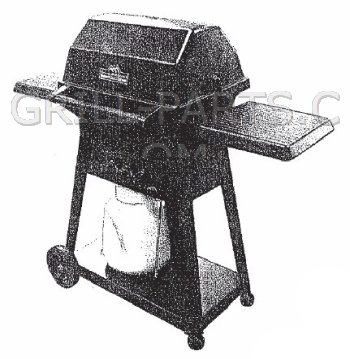

Great Outdoors 5500K Grill Parts

Replacement stainless steel burner for Great Outdoors model 5500K. Includes venturi mounting bolts/screws. Venturi not included, sold separately.

NOTE: The original cast brass and cast iron burners are no longer available. This replacement stainless steel version is slightly smaller, but supports the same amount of gas with good heat distribution. The stainless steel version will not screw down into the base of the grill, but simply sits in the bottom of the grill using adjustable support brackets, which are included.

Part Number: AZ001504-SS
Dimensions: 15 7/8” x 8”
Material: stainless steel
Weight: 2.5

AZ001504-R Replacement cast iron burner for Great Outdoors model 5500K. Includes venturi mounting bolts. Venturi not included, sold separately. Replaces original Great Outdoors part# AZ001504.

Fits models:

• 5500
• 6000
• 6100
• 7000
• 7500

NOTE: The original Great Outdoors cast brass and cast iron burners are no longer available. This replacement burner is slightly larger, but fully functional. It's ”legs” are not threaded, so it simply sits in the bottom of the grill.

Part Number: AZ001504-R (Replaces Great Outdoors AZ001504)
Dimensions: 15 1/2” x 8”
Material: cast iron
Weight: 7.0

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

AZ000506-R Replacement venturi tube. Includes gasket and screws. Replaces original Great Outdoors part# AZ000506.

Fits models:

• 5500
• 8000
• 8100
• 8500

Part Number: AZ000506-R (Replaces Great Outdoors AZ000506)
Dimensions: 5 1/2” x 1 1/2”
Material: zinc plated steel
Weight: 0.7

Premium quality heavy duty stainless steel cooking grid for Great Outdoors model 5500K. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, almost 6 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 15” x 11 1/8”
• Made in USA.
• Sold individually.

Part Number: CLA-GS0006
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 11 1/8”
Material: stainless steel
Weight: 5.8

Commercial 304 grade stainless steel cooking grid with 1/4” diameter rods for Great Outdoors model 5500K. Sold individually. Made in USA.

Part Number: CG-53SS
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: Stainless steel
Weight: 5

Carbon steel rock grate with 1/4” rods. Made in USA.

Part Number: CLA-RX0007 (Replaces Great Outdoors AF000203)
Dimension Front-to-Back: 13”
Dimension Side-to-Side: 19”
Material: carbon steel
Weight: 4.5

Heat Plate/ Flame Tamer not known for Great Outdoors model 5500K. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Ignitor collector box and electrode for thru casting mounts. Preassembled. Includes:

• Collector box and ceramic electrode with male spade connector
• Locking nuts and washer
• Ground lug (not shown)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-4B (Replaces Great Outdoors AN000103)
Weight: 0.3

Collector box and ceramic electrode with male spade connector. Will not work with original wire, which is attached directly to the original electrode. Requires two (2) 03400 wires with female spade connectors. Mounts perpendicular through casting with threaded rod and locking nuts. Includes igniter ground lug, no wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03800 (Replaces Great Outdoors AN000103)
Material: ceramic
Weight: 0.2

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B (Replaces Great Outdoors AN000203)
Weight: 0.02

Universal two outlet rotary spark generator. Includes knob and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-6B (Replaces Great Outdoors AN000303)
Weight: 0.3

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

T manifold for twin valves with 3/8” male flare. Use with hose & regulator #80012.

Part Number: 34100
Dimensions: 2” x 1 5/16”
Material: brass
Weight: 0.3

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

BBQ'er choice porcelain grill briquets. The finest available.

• Self-Cleaning Porcelain Briquettes.
• Made of fired porcelain for even heat transfer.
• Virtually indestructible.
• About 56 pieces covers approximately 310 square inches.
• Made in USA.

NOTE: MHP model TJK requires two (2) bags.

Part Number: BQ-3A (Replaces Great Outdoors AQ000103)
Weight: 4.2

Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8
