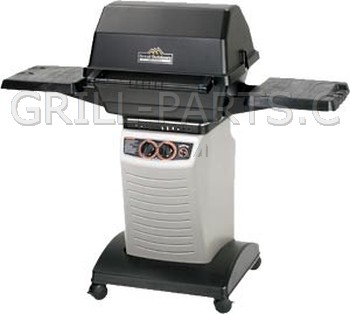

Great Outdoors 4000 Grill Parts

Replacement stainless steel burner for Great Outdoors model 4000. Includes venturi mounting bolts/screws. Venturi not included, sold separately.

NOTE: The original cast brass and cast iron burners are no longer available. This replacement stainless steel version is slightly smaller, but supports the same amount of gas with good heat distribution. The stainless steel version will not screw down into the base of the grill, but simply sits in the bottom of the grill using adjustable support brackets, which are included.

Part Number: AZ001505-SS
Dimensions: 15 7/8” x 8”
Material: stainless steel
Weight: 2.5

AZ001505-R Replacement cast iron burner for Great Outdoors model 4000. Includes venturi mounting bolts. Venturi not included, sold separately. Replaces original Great Outdoors part# AZ001505.

Fits models:

• 4000
• A052041

NOTE: The original Great Outdoors cast brass and cast iron burners are no longer available. This replacement burner is slightly larger, but fully functional. It's ”legs” are not threaded, so it simply sits in the bottom of the grill.

Part Number: AZ001505-R (Replaces Great Outdoors AZ001505)
Dimensions: 15 1/2” x 8”
Material: cast iron
Weight: 7.0

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

AZ000507-R Replacement venturi tube. Includes gasket and screws. Replaces original Great Outdoors part# AZ000507.

Fits models:

• 4000
• A052041

NOTE: The original OEM venturi and aftermarket replacements are no longer available. Using two adjustable single venturis, slightly modified, we have created a working replacement that, whie not perfect, works well.

Part Number: AZ000507-R (Replaces Great Outdoors AZ000507)
Dimensions: 5 1/2” x 6 1/8”
Material: chrome steel
Weight: 0.8

Cooking grid not known for Great Outdoors model 4000. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Great Outdoors cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

Carbon steel rock grate with 1/4” rods. Made in USA.

Part Number: CLA-RX0007 (Replaces Great Outdoors AF000203)
Dimension Front-to-Back: 13”
Dimension Side-to-Side: 19”
Material: carbon steel
Weight: 4.5

Heat Plate/ Flame Tamer not known for Great Outdoors model 4000. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Heat Shield. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0067 (Replaces Great Outdoors AI000204)
Dimensions: 10 1/4” x 16 3/8”
Material: stainless steel
Weight: 1.4

Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

Snap In Piezo Ignitor. Fits Weber Genesis Silver A,B,C and Newer Spirit E310 & E320.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-9B
Weight: 0.2

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Ignitor collector box and electrode for thru casting mounts. Preassembled. Includes:

• Collector box and ceramic electrode with male spade connector
• Locking nuts and washer
• Ground lug (not shown)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-4B (Replaces Great Outdoors AN000103)
Weight: 0.3

Collector box and ceramic electrode with male spade connector. Will not work with original wire, which is attached directly to the original electrode. Requires two (2) 03400 wires with female spade connectors. Mounts perpendicular through casting with threaded rod and locking nuts. Includes igniter ground lug, no wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03800 (Replaces Great Outdoors AN000103)
Material: ceramic
Weight: 0.2

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B (Replaces Great Outdoors AN000203)
Weight: 0.02

Universal push-button piezo igniter. External grounding tab for use as ground or to power a side burner igniter.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-7B (Replaces Great Outdoors AN000304)
Weight: 0.3

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Heavy duty stainless steel 6 1/4” x 4” x 2 1/8” cased universal rotisserie motor. On-off switch and 3 foot cord. Maximum 25 lb. balanced load. (120V, 9W, 50/60 HZ, RPM: 2.5/2.8)

Part Number: RO-6
Material: Stainless steel case
Weight: 2.0

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

5-piece unique tennis oriented utensil set. Constructed of heavy stainless steel with ”tennis grips” on each utensil. Includes yellow tennis ball style salt & pepper shakers, along with spatula, fork and tong.

Makes a nice gift.for tennis-minded folks

Part Number: US10
Weight: 5.00

Deluxe non-stick flat spit basket. Attaches to 3/8” rotisserie rod with adjustable lid to secure food. 16”x7.5”x2”
WARNING: Before ordering, please verify that your rotisserie spit rod can fit through the .48 inch x .48 squared mounting holes. Our spit rod part numbers SR-5, SR-8 and SR-43 do fit.

Part Number: 24785
Dimensions: 7 1/2” x 16”
Weight: 1.5

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
