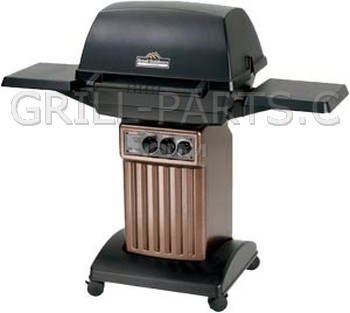

Great Outdoors 7000W Grill Parts

Replacement stainless steel burner for Great Outdoors model 7000W. Includes venturi mounting bolts/screws. Venturi not included, sold separately.

NOTE: The original cast brass and cast iron burners are no longer available. This replacement stainless steel version is slightly smaller, but supports the same amount of gas with good heat distribution. The stainless steel version will not screw down into the base of the grill, but simply sits in the bottom of the grill using adjustable support brackets, which are included.

Part Number: AZ001504-SS
Dimensions: 15 7/8” x 8”
Material: stainless steel
Weight: 2.5

AZ001504-R Replacement cast iron burner for Great Outdoors model 7000W. Includes venturi mounting bolts. Venturi not included, sold separately. Replaces original Great Outdoors part# AZ001504.

Fits models:

• 5500
• 6000
• 6100
• 7000
• 7500

NOTE: The original Great Outdoors cast brass and cast iron burners are no longer available. This replacement burner is slightly larger, but fully functional. It's ”legs” are not threaded, so it simply sits in the bottom of the grill.

Part Number: AZ001504-R (Replaces Great Outdoors AZ001504)
Dimensions: 15 1/2” x 8”
Material: cast iron
Weight: 7.0

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

AZ000505-R Replacement venturi tube. Includes gasket and screws. Replaces original Great Outdoors part# AZ000505.

Fits models:

• 6000
• 6100
• 7000
• 7500

Part Number: AZ000505-R (Replaces Great Outdoors AZ000505)
Dimensions: 2 15/16” x 4 1/8”
Material: zinc plated steel
Weight: 0.7

Cast iron cooking grids for Great Outdoors model 7000W. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 61602
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 23 1/2”
Material: matte cast iron
Weight: 12.8

Stainless Steel cooking grid for Great Outdoors model 7000W.

• Made in USA
• Solid 1/4” 304 stainless rods
• Each panel measures 15” x 11 3/8”

Part Number: CG-12SS
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 11 3/8”
Material: stainless steel
Weight: 3.40

Stainless Steel cooking grids for Great Outdoors model 7000W. SET OF TWO (2) panels.

• Made in USA
• Solid 1/4” 304 stainless rods
• Each panel measures 15” x 11 3/8”
• Overall dimensions: 18 1/4” x 22 3/4”

Part Number: CG-12SS-X2 (Replaces Great Outdoors AF000105)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 22 3/4”
Material: stainless steel
Weight: 6.8

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-7 (Replaces Great Outdoors AF000205)
Dimension Front-to-Back: 12 3/4”
Dimension Side-to-Side: 20”
Material: carbon steel
Weight: 4.2

Heat Plate/ Flame Tamer not known for Great Outdoors model 7000W. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Heat Shield. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0067 (Replaces Great Outdoors AI000204)
Dimensions: 10 1/4” x 16 3/8”
Material: stainless steel
Weight: 1.4

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Ignitor collector box and electrode for thru casting mounts. Preassembled. Includes:

• Collector box and ceramic electrode with male spade connector
• Locking nuts and washer
• Ground lug (not shown)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-4B (Replaces Great Outdoors AN000103)
Weight: 0.3

Collector box and ceramic electrode with male spade connector. Will not work with original wire, which is attached directly to the original electrode. Requires two (2) 03400 wires with female spade connectors. Mounts perpendicular through casting with threaded rod and locking nuts. Includes igniter ground lug, no wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03800 (Replaces Great Outdoors AN000103)
Material: ceramic
Weight: 0.2

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B (Replaces Great Outdoors AN000203)
Weight: 0.02

Universal two outlet rotary spark generator. Includes knob and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-6B (Replaces Great Outdoors AN000303)
Weight: 0.3

Premium quality polyester lined vinyl cover, E-Z on velcro tabs. For large grills, full length.

• 60” left to right
• 20” front to back
• 42” top to bottom

Please measure your grill to determine which cover fits best. Avoid too snug a fit as a slightly oversized cover is easier to take off and put back on.

Part Number: CV-4PREM
Material: Vinyl
Weight: 3.5

Silver plastic control knob. Replaces original part# 50002552. Can also be used to replace knob part# AZ000703.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 8mm
• Knob shaft: None

Part Number: 02552 (Replaces Great Outdoors AZ000703)
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Premium quality stainless steel warming rack. You simply can't buy a better quality warming rack than this, which weighs in at almost 5lbs of solid 304 grade stainless steel. This super heavy-duty warming rack was made to replace AF000303, the porcelain coated steel racks found on BBQ grills made by The Great Outdoors Grill Company, but can fit in any grill with 23 inches or more for the rack to sit on.

• Far superior to the original porcelain coated steel rack
• Rests on your existing cooking grids.
• Solid 1/4” 304 stainless steel rods.
• Stands 3 inches tall.
• Made in USA.

WARNING: Before ordering this universal rack, please verify your grill has enough space to accomodate it. At least 23” inside the closed lid is required.

Part Number: AF000303-SS (Replaces Great Outdoors AF000303)
Dimensions: 6 1/4” x 22 3/4”
Material: stainless steel
Weight: 4.8

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Maple wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00270
Weight: 1.3

Polished stainless steel turner with an ergonomic soft grip grey handle and red accents. Great for flipping burgers or turning delicate fish fillets.

Part Number: 43108
Dimensions: 16
Material: stainless steel
Weight: 0.10

Set of six 22” stainless steel V skewers with wood handles and silicone bezels. Silicone bezel helps the handle stay cool longer. V-shaped skewers keep food from spinning on shaft.

Part Number: 40538
Material: chrome steel
Weight: 1.1

GrillPro EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

This tank gauge will monitor your propane level, while you grill, and let's you know when you're running low on gas.

The magnetic tank gauge offers fast, accurate propane level monitoring for any size LP tank. The magnetic backing makes it easy to attach, remove, and reuse across multiple tanks—perfect for grilling, camping, patio heaters, and more

Part Number: 00030
Weight: 0.1

Stainless steel chicken roaster. Commonly called Beer Can roasters.

• The best way to roast poultry on the grill
• For use in barbecues and ovens
• Dishwasher safe
• Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
