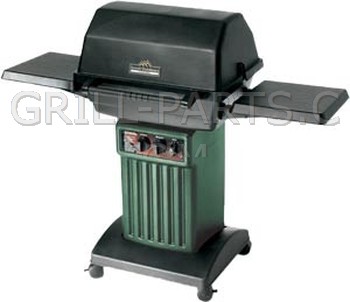

Great Outdoors 6000N Grill Parts

Replacement stainless steel burner for Great Outdoors model 6000N. Includes venturi mounting bolts/screws. Venturi not included, sold separately.

NOTE: The original cast brass and cast iron burners are no longer available. This replacement stainless steel version is slightly smaller, but supports the same amount of gas with good heat distribution. The stainless steel version will not screw down into the base of the grill, but simply sits in the bottom of the grill using adjustable support brackets, which are included.

Part Number: AZ001504-SS
Dimensions: 15 7/8” x 8”
Material: stainless steel
Weight: 2.5

AZ001504-R Replacement cast iron burner for Great Outdoors model 6000N. Includes venturi mounting bolts. Venturi not included, sold separately. Replaces original Great Outdoors part# AZ001504.

Fits models:

• 5500
• 6000
• 6100
• 7000
• 7500

NOTE: The original Great Outdoors cast brass and cast iron burners are no longer available. This replacement burner is slightly larger, but fully functional. It's ”legs” are not threaded, so it simply sits in the bottom of the grill.

Part Number: AZ001504-R (Replaces Great Outdoors AZ001504)
Dimensions: 15 1/2” x 8”
Material: cast iron
Weight: 7.0

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

AZ000505-R Replacement venturi tube. Includes gasket and screws. Replaces original Great Outdoors part# AZ000505.

Fits models:

• 6000
• 6100
• 7000
• 7500

Part Number: AZ000505-R (Replaces Great Outdoors AZ000505)
Dimensions: 2 15/16” x 4 1/8”
Material: zinc plated steel
Weight: 0.7

Cooking grid not known for Great Outdoors model 6000N. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Great Outdoors cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

Carbon steel rock grate with 1/4” rods. Made in USA.

Part Number: CLA-RX0007 (Replaces Great Outdoors AF000203)
Dimension Front-to-Back: 13”
Dimension Side-to-Side: 19”
Material: carbon steel
Weight: 4.5

Heat Plate/ Flame Tamer not known for Great Outdoors model 6000N. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Heat Shield. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0067 (Replaces Great Outdoors AI000204)
Dimensions: 10 1/4” x 16 3/8”
Material: stainless steel
Weight: 1.4

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Ignitor collector box and electrode for thru casting mounts. Preassembled. Includes:

• Collector box and ceramic electrode with male spade connector
• Locking nuts and washer
• Ground lug (not shown)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-4B (Replaces Great Outdoors AN000103)
Weight: 0.3

Collector box and ceramic electrode with male spade connector. Will not work with original wire, which is attached directly to the original electrode. Requires two (2) 03400 wires with female spade connectors. Mounts perpendicular through casting with threaded rod and locking nuts. Includes igniter ground lug, no wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03800 (Replaces Great Outdoors AN000103)
Material: ceramic
Weight: 0.2

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B (Replaces Great Outdoors AN000203)
Weight: 0.02

Universal two outlet rotary spark generator. Includes knob and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-6B (Replaces Great Outdoors AN000303)
Weight: 0.3

Silver plastic control knob. Replaces original part# 50002552. Can also be used to replace knob part# AZ000703.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 8mm
• Knob shaft: None

Part Number: 02552 (Replaces Great Outdoors AZ000703)
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.1

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Premium quality stainless steel warming rack. You simply can't buy a better quality warming rack than this, which weighs in at almost 5lbs of solid 304 grade stainless steel. This super heavy-duty warming rack was made to replace AF000303, the porcelain coated steel racks found on BBQ grills made by The Great Outdoors Grill Company, but can fit in any grill with 23 inches or more for the rack to sit on.

• Far superior to the original porcelain coated steel rack
• Rests on your existing cooking grids.
• Solid 1/4” 304 stainless steel rods.
• Stands 3 inches tall.
• Made in USA.

WARNING: Before ordering this universal rack, please verify your grill has enough space to accomodate it. At least 23” inside the closed lid is required.

Part Number: AF000303-SS (Replaces Great Outdoors AF000303)
Dimensions: 6 1/4” x 22 3/4”
Material: stainless steel
Weight: 4.8

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

GrillPro EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

This tank gauge will monitor your propane level, while you grill, and let's you know when you're running low on gas.

The magnetic tank gauge offers fast, accurate propane level monitoring for any size LP tank. The magnetic backing makes it easy to attach, remove, and reuse across multiple tanks—perfect for grilling, camping, patio heaters, and more

Part Number: 00030
Weight: 0.1

Beer Can Chicken Roaster. Stainless steel.

Just place any 12 oz can into the center frame and put your spiced chicken cavity over the can and then put on the grill or oven, Infuses with flavors from various beverage in the can, Like Beer, Juice, Wine, etc. Your chicken will impart a different flavor! After use, the racks can be cleaned easily.

Part Number: CCR
Weight: 1.0

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
