Charbroil Quickset Traditional Charcoal/Gas 463841705 Grill Parts

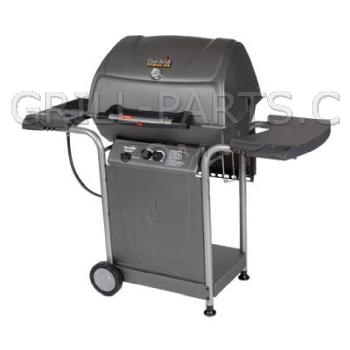

Char-Broil 2-Burner LP gas outdoor BBQ grill with side burner

Highest quality replacement parts for your Charbroil Quickset Traditional Charcoal/Gas 463841705 - Free USA shipping $49 or more* - No Sales Tax*

Charbroil 463841705 owners manual and diagrams

Diagrams & owners manual not available for grill model# 463841705. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement BBQ grill parts for Charbroil Quickset Traditional Charcoal/Gas 463841705

All of the parts we have for Charbroil 463841705 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463841705 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

463841705 Cooking Grids

Click for photos

Porcelain steel cooking grid for Charbroil model 463841705. Porcelain enameled, glossy finish. Sold individually.

Part Number: 55801 (Replaces Charbroil 4152778)
Dimension Front-to-Back: 14 23/32”
Dimension Side-to-Side: 26 5/8”
Material: porcelain steel wire
Weight: 6.2

==> All Charbroil Cooking Grids.

463841705 Heat Plates

Click for photos

Stainless steel Flame Tamers for Charbroil model 463841705. Sold individually, number required varies. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0035 (Replaces Charbroil 4500291)
Dimension Front-to-Back: 25 7/8”
Dimension Side-to-Side: 5 1/2”
Material: stainless steel
Weight: 1.4

==> All Charbroil Heat Plates.

463841705 Igniter Components

Click for photos

Collector Box and electrode for Charbroil top ported TBBC & TLBBC burners.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-28B (Replaces Charbroil 4500278)
Weight: 0.2

==> All Charbroil Igniter Components.

463841705 Knobs and Handles

Click for photos

Black control knob.

Off position D-Value: 9 o'clock
Knob diameter: 1 3/4”
Socket diameter: 8mm
Knob shaft: None

Part Number: 04470 (Replaces Charbroil 4154470)
Dimensions: 1 7/8” x 1 7/8”
Material: plastic
Weight: 0.1

==> All Charbroil Knobs and Handles.

463841705 Heat indicators and Meat Thermometers

Click for photos

Round heat indicator.

Single probe
1 13/16” diameter
Requires 3/8” mounting hole

Part Number: 00018 (Replaces Charbroil 4157171)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

==> All Charbroil Heat indicators and Meat Thermometers.

463841705 Accessories

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Click for photos

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Click for photos

Aluminum foil grilling trays. Package of three.

Heavy duty aluminum foil
Re-usable
Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All 463841705 Accessories.
