Charbroil 464720907 Grill Parts

Charbroil logo



Charbroil 464720907

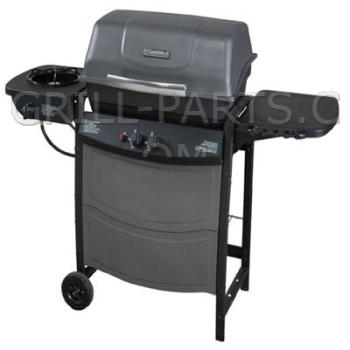

Kenmore Dual burner LP gas grill with side burner



Highest quality replacement parts for your Charbroil 464720907 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 464720907 owners manual and diagrams
Click the small images on the right to view Charbroil 464720907 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 464720907-463624909230-PartsExpS1.jpg

Replacement grill parts for the Charbroil model: 464720907
All of the parts we have for Charbroil 464720907 are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 464720907 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



464720907 Venturis

SG-B
Click for photos
Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

$7.62

Qty


==> All Charbroil Venturis.






464720907 Cooking Grids

80009841 / 53101
Porcelain steel heavy cooking grid for Charbroil model 464720907. Porcelain enameled, glossy finish. Sold individually.
NOTE: This grid has been designated as a replacement for part # 51051 that weighed 3.5 pounds, measured 13 3/4” x 25 1/4” and it had rounded corners. Due to the rounded corners, using # 53101as a replacement is about 1 3/4” shy on the side-to-side dimension.

Part Number: 53101 (Replaces Charbroil 80009841)
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 23 1/2”
Material: porcelain steel wire
Weight: 11.0

$59.43

Qty


==> All Charbroil Cooking Grids.






464720907 Heat Plates

80009840 / 98401
Click for photos
Porcelain enameled steel heat plate for Charbroil model 464720907.

Part Number: 98401 (Replaces Charbroil 80009840)
Dimension Front-to-Back: 6 1/8”
Dimension Side-to-Side: 23 13/16”
Material: porcelain steel
Weight: 1.13

$33.75

Qty


==> All Charbroil Heat Plates.






464720907 Igniter Components

IG-46B
Click for photos
Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.30

Qty


10342-T14
Click for photos
21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

$4.32

Qty


5156113 / UP-7B
Click for photos
Universal push-button piezo igniter. External grounding tab for use as ground or to power a side burner igniter.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: UP-7B (Replaces Charbroil 5156113)
Weight: 0.3

$8.19

Qty


IG-7B
Click for photos
20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-7B
Weight: 0.02

$4.75

Qty


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.51

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.35

Qty


IG-11B
Click for photos
Ignitor electrode and collector box assembly. Fits all grills equiped with the Charbroil Masterflame and MasterFlame II burner systems, including grill brands Charbroil, Coleman, Kenmore, and Thermos. Fits on our burner part numbers BBC, LBBC, TBBC, and TLBBC.
    Includes:
  • Gas collector box
  • Ceramic electrode and wire
  • Mounting hardware

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-11B
Weight: 0.3

$9.74

Qty


UP-9B
Click for photos
Snap In Piezo Ignitor. Fits Weber Genesis Silver A,B,C and Newer Spirit E310 & E320.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: UP-9B
Weight: 0.2

$8.81

Qty


==> All Charbroil Igniter Components.






464720907 Knobs and Handles

80000035 / 01700
Click for photos
Black control knob for Fire Magic Custom, Regal, and Gourmet grills.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01700 (Replaces Charbroil 80000035)
Dimensions: 2” x 2”
Material: plastic
Weight: 0.1

$10.84

Qty


01800
Click for photos
Universal black control knob. Counter-clockwise bezel.
  • Off position D-Value: Selectable
  • Knob diameter: 2 1/16”
  • Socket diameter: 8mm
  • Knob shaft: None


Part Number: 01800
Dimensions: 2 1/16” x 2 1/16”
Material: plastic
Weight: 0.05

$6.55

Qty


80009706 / B070084
Click for photos
Knob, Black (New Style), Fits P3/4/4, SR3, D3/4/5/2.
Also replaces part# B070286, which no longer available.
  • Off position D-Value: 3 o'clock
  • Knob diameter: 1 5/8”
  • Socket diameter: 5/16”
  • Knob shaft: 1/2”


Part Number: B070084 (Replaces Charbroil 80009706)
Weight: 0.04

$10.64

Qty


==> All Charbroil Knobs and Handles.






464720907 Heat indicators and Meat Thermometers

11381
Click for photos
Universal four piece mini thermometer set. Great gift idea.
  • 2 calibrated for steak, and 2 for chicken
  • Mini thermometers for testing doneness of individual cuts of meat
  • Silicone bezels for easy removal when hot
  • Always use caution when handling hot objects


Part Number: 11381
Weight: .25

$16.45

Qty


==> All Charbroil Heat indicators and Meat Thermometers.






464720907 Accessories

00220
Click for photos
GrillPro Texas hickory BBQ wood chips. 800g. For use in all BBQ Grill and smoker applications.

Part Number: 00220
Weight: 2.0

$6.87

Qty


43108
Click for photos

Polished stainless steel turner with an ergonomic soft grip grey handle and red accents.



Part Number: 43108
Dimensions: 16
Material: stainless steel
Weight: 0.10

$9.48

Qty


24785
Click for photos
Deluxe non-stick flat spit basket. Attaches to 3/8” rotisserie rod with adjustable lid to secure food. 16”x7.5”x2”
WARNING: Before ordering, please verify that your rotisserie spit rod can fit through the .48 inch x .48 squared mounting holes. Our spit rod part numbers SR-5, SR-8 and SR-43 do fit.

Part Number: 24785
Dimensions: 7 1/2” x 16”
Weight: 1.5

$22.60

Qty


91652
Click for photos
Non-Stick Aluminum Griddle. 19 in. x 10.75 in. Non-stick cast aluminum double sided griddle. One flat side for frying, and a ridge side for grilling.

Part Number: 91652
Dimensions: 19 1/2” x 10 3/4”
Material: aluminum
Weight: 3.0

$55.68

Qty


BRACT
Click for photos
Stainless Steel Ash Cleaning Tray For Use In Ceramic Kamado Grills

Part Number: BRACT
Weight: 1.0

$32.84

Qty


==> All 464720907 Accessories.
