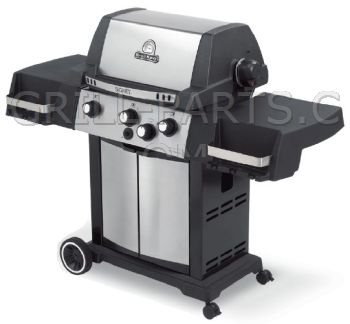

Broil King Signet 70 NGS 9865-77 Grill Parts

Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9865-77. Use air shutter to control flow of air for LP gas, less air, and for natural gas, more air. NOTE: Manufacturer changed back mounting to a 90 degree bend.

Part Number: 10390-E20
Dimensions: 14 3/8” x 1 1/4”
Material: Stainless steel
Weight: 0.75

Genuine OEM Broil King stainless steel rotisserie burner assembly for Broil King model 9865-77.

Includes:
• 26 3/16” SS rotisserie burner with deflector (part# S13005)
• Burner-mounted electrode, gas collector box, and 45” wire
• Completely assembled

Part Number: S13005A
Dimensions: 26 3/16”
Weight: 1.10

Genuine OEM Broil King reversible heavy cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 9865-77.

• Sold individually
• Number required varies, check your grill
• Porcelain treated, flat matte finish
• Pointed side is designed for perfect sear marks
• Grooved side captures juices for continuous basting

Note: See part 10225-E404 for a stainless steel version of this grid.

Part Number: 10225-T436
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Cast iron
Weight: 7.6

COOKING GRID 390 PORCELAIN, GLOSSY COATED for Broil King model 9865-77. SOLD INDIVIDUALLY.

• Sold individually
• Number required varies, check your grill

Part Number: 04160152
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 12 13/16”
Material: porcleain steel
Weight: 5.8

10225-E404 Genuine OEM Broil King stainless steel cooking grid for Broil King model 9865-77.

• SOLD INDIVIDUALLY.
• Number required varies, check your grill to be sure.
• Fits Signet and Crown models

Part Number: 10225-E404
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12 3/4”
Material: Stainless steel
Weight: 5.10

Genuine OEM Broil King stainless steel Flav-R-Wave for Broil King model 9865-77.

Part Number: 10222-E400
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 6 1/4”
Material: Stainless steel
Weight: 1.25

Replacement for stainless steele baffle. Fits Signet/Sovereign.

Part Number: 10222-E402-R
Dimensions: 9” x 7 7/8”
Material: stainless steel
Weight: 0.76

Genuine OEM Broil King electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil King electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E12
Weight: 0.05

Genuine OEM Broil King collector box, complete. Replaces parts 10342-E400 and 10342-E401, which have been discontinued as separate parts.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-E400A
Dimensions: 20
Weight: 0.75

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

Broil King 58” Select grill cover 67487. Broil King Select Series covers are crafted from durable and weather resistant PVC / 500 x 300 denier polyester lining. These durable covers feature:

• Hook-and-loop tabs that secure the cover around the grill
• Polyester handles for easy removal
• Hanging loops for convenient storage
• The Broil King brand logo on the front

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills

Dimensions:

• Side-to-Side: 58”
• Height: 46”
• Front-to-Back: 21.5”

Part Number: 67487
Weight: 3.0

Broil King 58” premium grill cover 68487. Broil King premium covers are crafted of durable water resistant PVC with heavy woven 900D polyester backing.

Exact fit for models:

• Baron 440, 490 Series grills
• Crown 10, 90 Series grills, post model
• Signet 70, 90 Series grills
• Sovereign 20, 40, 70, and 90 Series grills

Features:

• Mesh venting for enhanced air flow and moisture resistance
• Hook-and-loop closures for a superior fit
• Blue baseball stitching adds style to the extra-reinforced seams
• Molded rubber handles make the cover easy to remove

Dimensions:

• Side-to-Side: 58”
• Height: 46”
• Front-to-Back: 21.5”

Part Number: 68487
Weight: 5.0

Genuine OEM Broil King large control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 22001-768
Weight: 0.2

CONTROL KNOB - BEZEL BLK

Part Number: 10472-E38
Weight: 0.1

HANDLE W/STRAP SIGNET 400

Part Number: 10184-E702A
Weight: 1.0

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Heavy duty stainless steel 6 1/4” x 4” x 2 1/8” cased universal rotisserie motor. On-off switch and 3 foot cord. Maximum 25 lb. balanced load. (120V, 9W, 50/60 HZ, RPM: 2.5/2.8)

Part Number: RO-6
Material: Stainless steel case
Weight: 2.0

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

ALIGNMENT, BRACKET BLACK

Part Number: 10184-E691
Weight: 1.0

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

Genuine OEM Broil King End Cap, door. Left hand side, with magnet.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10184-E78A
Dimensions: 9 3/4
Weight: 0.36

END CAP DOOR BOTTOM LEFT A

Part Number: 10184-E76
Dimensions: 10
Weight: .25

Genuine OEM Broil King End Cap, door. RIght hand side, with magnet.

Part Number: 10184-E79A
Weight: 0.36

END CAP DOOR BOTTOM RIGHT A

Part Number: 10184-E77
Dimensions: 10
Weight: .25

Cherry wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00240
Weight: 1.14

2 in 1 chrome plated turner / tong with PVC coated handle

Part Number: 40730
Dimensions: 14
Material: chrome steel
Weight: 0.6

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
