Broil King Monarch 40 543-44 Grill Parts

Broil King logo

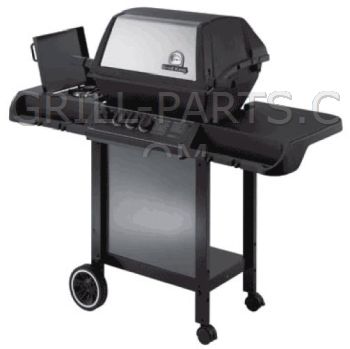

Broil King 543-44



Highest quality replacement parts for your Broil King Monarch 40 543-44 - Free USA shipping $49 or more* - No Sales Tax*



Broil King 543-44 owners manual and diagrams
Click the small images on the right to view Broil King 543-44 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil King 543-44-346556633-PartsExpS1.gif  Broil King 543-44-346556633-PartsExpS1.jpg  Broil King 543-44-346556633-PartsLstS1.gif  Broil King 543-44-346556633-PartsLstS1.jpg  Broil King 543-44-346556633-PartsLstS2.gif

Replacement gas grill parts for Broil King Monarch 40 543-44
On this page you'll find all of the parts that fit model Broil King 543-44. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Broil King grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil King 543-44 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



543-44 Burners

10390-T401
Click for photos
Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 543-44.

Part Number: 10390-T401
Dimensions: 6 1/2” x 14 5/8”
Material: Stainless steel
Weight: 2.3

$65.30

Qty


10390-E10
Click for photos
Genuine OEM Broil King Side Burner for Broil King model 543-44. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).

Part Number: 10390-E10
Weight: 0.4

$14.97

Qty


==> All Broil King Burners.






543-44 Cooking Grids

10225-T356
Click for photos
Genuine OEM Broil King cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 543-44.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain treated, flat matte finish


Part Number: 10225-T356
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 10 3/4”
Material: Cast iron
Weight: 6.1

$55.49

Qty


63262
Click for photos
Cast iron cooking grids for Broil King model 543-44. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 63262
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: matte cast iron
Weight: 15.1

$105.10

Qty


==> All Broil King Cooking Grids.






543-44 Heat Plates

10222-T325
Click for photos
Genuine OEM Broil King stainless steel Flav-R-Wave SS heat plate for Broil King model 543-44.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

$37.43

Qty


==> All Broil King Heat Plates.






543-44 Igniter Components

10342-249
Click for photos
Rotary igniter for two outlets uses round connector wires. INCLUDES KNOB, NOT SHOWN IN PHOTO. Also replaces part# 10342-242, which has been discontinued by the manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-249
Weight: 0.2

$17.43

Qty


10342-T301
Click for photos
Genuine OEM Broil King collector box and electrode assembly. Includes:
  • burner mounted box with mounting screw
  • ceramic electrode and 17” wire with round connector and protective sleeve
  • Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T301
Weight: 0.05

$10.95

Qty


10342-T14
Click for photos
Genuine OEM Broil King 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

$4.32

Qty


==> All Broil King Igniter Components.






543-44 Grease Trays

S15111
Click for photos
Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

$3.11

Qty


==> All Broil King Grease Trays.






543-44 Knobs and Handles

10472-K40
Click for photos
Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

$5.15

Qty


10239-7
Click for photos
Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

$1.95

Qty


PB20-60
Click for photos
S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

$1.95

Qty


==> All Broil King Knobs and Handles.






543-44 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Broil King Regulators and Hoses.






543-44 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


10892-13
Click for photos
Genuine OEM Broil King twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

$7.27

Qty


10240-13
Click for photos
Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

$2.23

Qty


==> All Broil King Wheels and Castors.






543-44 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.77

Qty


==> All Broil King Heat indicators and Meat Thermometers.






543-44 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


Y-11230
Click for photos
Cotter pin

Part Number: Y-11230
Weight: 0.01

$1.08

Qty


Y-6616
Click for photos
Bolt

Part Number: Y-6616
Weight: 0.02

$1.08

Qty


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08

Qty


==> All Broil King Miscellaneous Repair Parts.






543-44 Hardware

SCREW-PHCP 6-32X1/4 TY-F JS500

Part Number: Y-12835
Weight: 1.0

$0.70

Qty


==> All Broil King Hardware.






543-44 Shelves

10184-E461
Click for photos
SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

$7.02

Qty


SHELF SB EZ-BILT W/O BRACKET

Part Number: 10711-E563
Weight: 1.0

$36.00

Qty


==> All Broil King Shelves.






543-44 Accessories

BP-5
Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

$9.75

Qty


FS-1
Click for photos
Fish Spatula. Stainless steel fish spatula with genuine rosewood handle. 18 1/2”. 10” spatula width.

Part Number: FS-1
Dimensions: 18 1/2
Material: stainless steel
Weight: 1.0

$17.27

Qty


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$8.84

Qty


WB-3
18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

$12.50

Qty


==> All 543-44 Accessories.
