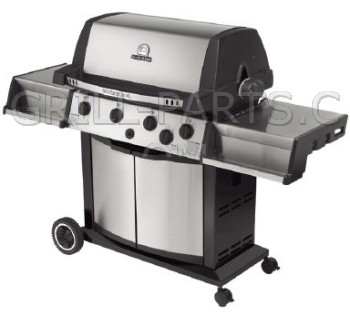

Broil King Sovereign XL70 9887-37 Grill Parts

Genuine OEM Broil King stainless steel Dual-Tube burner for Broil King model 9887-37. Use air shutter to control flow of air for LP gas, less air, and for natural gas, more air. NOTE: Manufacturer changed back mounting to a 90 degree bend.

Part Number: 10390-E20
Dimensions: 14 3/8” x 1 1/4”
Material: Stainless steel
Weight: 0.75

Genuine OEM Broil King stainless steel rotisserie burner assembly for Broil King model 9887-37.

Includes:
• SS rotisserie burner with deflector (part# S13016)
• burner-mounted electrode, gas collector box, and wire
• Completely assembled

Part Number: S13016A
Weight: 1.0

Genuine OEM Broil King premium stainless steel cooking grid for Broil King model 9887-37. SOLD INDIVIDUALLY, used in sets of three or four.

Part Number: S12033S
Dimension Front-to-Back: 17 1/8”
Dimension Side-to-Side: 8 5/16”
Material: Stainless steel
Weight: 4.8

Genuine OEM Broil King stainless steel Flav-R-Wave for Broil King model 9887-37.

Part Number: 10222-E400
Dimension Front-to-Back: 13 3/4”
Dimension Side-to-Side: 6 1/4”
Material: Stainless steel
Weight: 1.25

Genuine OEM Broil King electronic push-button 2-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole
• Also replaces part# 10342-242 and 10342-249

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-245
Weight: 0.3

Genuine OEM Broil King electrode with 14” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E13
Weight: 0.05

Genuine OEM Broil King disposable grease pans. Package of 10. Each measures 4.75”x6”x1”.

Part Number: S15115
Dimensions: 4 3/4” x 6”
Material: aluminum
Weight: 0.25

CONTROL KNOB - BEZEL BLK

Part Number: 10472-E38
Weight: 0.1

HANDLE W/STRAP SOVEREIGN XL -- 600

Part Number: 10184-E713A
Weight: 1.0

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Weight: 0.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 8” cart wheel with a 3/8” axel hole. Also replaces part# 10892-8, and 10892-8N which have been discontinued. Is a solid rubber wheel with a plastic hub, and it has a grey sidewall stripe instead of the white found on 10892-8N.

Part Number: 10892-8NG
Dimensions: 8
Weight: 1.6

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

ALIGNMENT, BRACKET BLACK

Part Number: 10184-E691
Weight: 1.0

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Push nut 3/8

Part Number: S21420
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

END CAP SIDE SHELF RHS

Part Number: 10711-E47
Weight: 1.0

HOW TO GRILL The Complete Illustrated Book of Barbecue Techniques. Steve Raichlen presents a full-color, step-by-step technique book that gets to the core of the grilling experience by showing and telling exactly how it's done. With more than 1,000 photographs, if features over 100 techniques and recipes, from how to set up a three-zone fire to how to grill a perfect prime rib, to grilling pizza, shellfish, vegetables, tofu, fruit, and s'mores.

Part Number: 0-7611-2014-9
Dimensions: 8” x 9 1/4”
Material: Paperback
Weight: 3.0

4 Piece Stainless Steel Tool Set With Accents Turner, tong, and fork constructed of high gade, polished stainless steel, with soft grip accents. Silicone tip tongs heat resistant to 500 degrees farenheit. High quality grill brush.

Part Number: 40070
Material: stainless steel
Weight: 2.12

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Roast holder. This holder is an ideal way to cook and also carry a roast from the grill. Made of heavy, bright nickel-plated steel, 15 1/4” L x 10 1/2” W.

Part Number: RR-3
Dimensions: 19 1/2
Weight: 1.0

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
