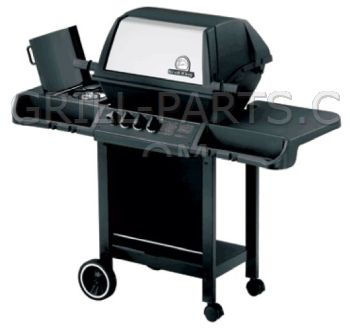

Broil King Monarch 30 543-37 Grill Parts

Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 543-37.

Part Number: 10390-T401
Dimensions: 6 1/2” x 14 5/8”
Material: Stainless steel
Weight: 2.3

Genuine OEM Broil King Side Burner for Broil King model 543-37. Use air shutter to adjust for LP (less air flow) or natural gas (more air flow).
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10390-E10
Weight: 0.4

Genuine OEM Broil King cooking grid SOLD INDIVIDUALLY for Broil King model 543-37.

• Sold individually
• Number required varies, check your grill
• Porcelain enameled steel, glossy finish

Part Number: 10225-T341
Dimension Front-to-Back: 14 7/8”
Dimension Side-to-Side: 11”
Material: Porcelain steel
Weight: 2.15

Genuine OEM Broil King stainless steel Flav-R-Wave SS heat plate for Broil King model 543-37.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

Rotary igniter for two outlets uses round connector wires. INCLUDES KNOB, NOT SHOWN IN PHOTO. Also replaces part# 10342-242, which has been discontinued by the manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-249
Weight: 0.2

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Genuine OEM Broil King 21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

S/B LID HANDLE WAGON ENCLOSER*

Part Number: PB20-60
Weight: 1.0

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Five piece 3/8” natural gas quick disconnect set includes:

• Part ASCPL-2 12ft vinyl 3/8” ID Sturgis hose (3/8” inside diameter outside diameter about 1/2”) with solid brass fittings
• Part ASCPL-3 Sturgis brand 3/8” quick connect brass coupler
• Hansen & Sturgis dust cover
• plastic dust plug
• Plastic 3/8 MPT Snap Tite
• Suitable up to approximately 60,000 BTU.

Part Number: ASCPL-1
Weight: 3.0

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Genuine OEM Broil King caster wheel; approximately 2 3/8” diameter.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10892-15
Weight: 0.35

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

Bolt hex head 1 1/2” length

Part Number: Y-6616
Weight: 0.02

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

SHELF SB EZ-BILT W/O BRACKET

Part Number: 10711-E563
Weight: 1.0

Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

• Ideal for searving or grilling appetizers
• Wide end for easy handling

Part Number: 11040
Dimensions: 7
Weight: 0.4

Deluxe 13” basting mop with hardwood handle and cotton mop head. Great for spreading BBQ sauces, marinades, and glazes on meat and poultry.

Part Number: 42055
Dimensions: 13
Weight: 0.2

Porcelain Coated Square Wok Topper.
12” x 12” x 2” porcelain coated grilling wok with stainless steel handles and perforations. The single draw design improves functionality and rigidity, it also makes it much easier to clean.

Part Number: 98121
Dimensions: 12” x 12”
Material: porcelain steel
Weight: 1.6

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
