Broil King Monarch 70 543-77 Grill Parts

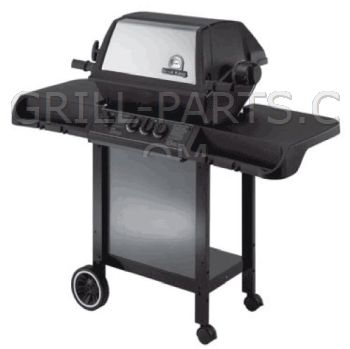

Broil King 543-77

Highest quality replacement parts for your Broil King Monarch 70 543-77 - Free USA shipping $49 or more* - No Sales Tax*

Broil King 543-77 owners manual and diagrams

Click the small images on the right to view Broil King 543-77 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Broil King 543-77-346552233-PartsExpS1.gif

Broil King 543-77-346552233-PartsExpS1.jpg

Broil King 543-77-346552233-PartsLstS1.gif

Broil King 543-77-346552233-PartsLstS1.jpg

Broil King 543-77-346552233-PartsLstS2.gif

Replacement BBQ grill parts for Broil King Monarch 70 543-77

All of the parts we have for Broil King 543-77 are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Broil King grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Broil King 543-77 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

543-77 Burners

10390-T401

Click for photos

Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 543-77.

Part Number: 10390-T401
Dimensions: 6 1/2” x 14 5/8”
Material: Stainless steel
Weight: 2.3

S13006

Click for photos

Genuine OEM Broil King stainless steel rear tube burner for Broil King model 543-77.

Part Number: S13006
Dimensions: 22 1/8”
Material: Stainless steel
Weight: 0.8

==> All Broil King Burners.

543-77 Cooking Grids

10225-T356

Click for photos

Genuine OEM Broil King cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 543-77.

Sold individually
Number required varies, check your grill
Porcelain treated, flat matte finish

Part Number: 10225-T356
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 10 3/4”
Material: Cast iron
Weight: 6.1

63262

Click for photos

Cast iron cooking grids for Broil King model 543-77. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 63262
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: matte cast iron
Weight: 15.1

==> All Broil King Cooking Grids.

543-77 Heat Plates

10222-T325

Click for photos

Genuine OEM Broil King stainless steel Flav-R-Wave SS heat plate for Broil King model 543-77.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

==> All Broil King Heat Plates.

543-77 Igniter Components

10342-247

Click for photos

Genuine OEM Broil King electronic push-button 4-spade igniter.

Uses AAA battery (not included)
Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-247
Weight: 0.5

10342-T301

Click for photos

Genuine OEM Broil King collector box and electrode assembly. Includes:

burner mounted box with mounting screw
ceramic electrode and 17” wire with round connector and protective sleeve
Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

==> All Broil King Igniter Components.

543-77 Grease Trays

S15111

Click for photos

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

==> All Broil King Grease Trays.

543-77 Knobs and Handles

10472-K40

Click for photos

Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

10239-7

Click for photos

Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

==> All Broil King Knobs and Handles.

543-77 Regulators and Hoses

10111-K45

Click for photos

Genuine OEM Broil King NG gas hose.

Part Number: 10111-K45
Weight: 2.1

==> All Broil King Regulators and Hoses.

543-77 Wheels and Castors

10892-7G

Click for photos

Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

10892-13

Click for photos

Genuine OEM Broil King twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

10240-13

Click for photos

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

==> All Broil King Wheels and Castors.

543-77 Heat indicators and Meat Thermometers

10571-6

Click for photos

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

==> All Broil King Heat indicators and Meat Thermometers.

543-77 Miscellaneous Repair Parts

S21233

Click for photos

Hinge pin clip.

Part Number: S21233
Weight: 0.01

S21362

Click for photos

REAR BURNER SPRING

Part Number: S21362
Weight: 1.0

Y-6616

Click for photos

Bolt

Part Number: Y-6616
Weight: 0.02

==> All Broil King Miscellaneous Repair Parts.

543-77 Shelves

10184-E461

Click for photos

SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

==> All Broil King Shelves.

543-77 Accessories

WB-1

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All 543-77 Accessories.
