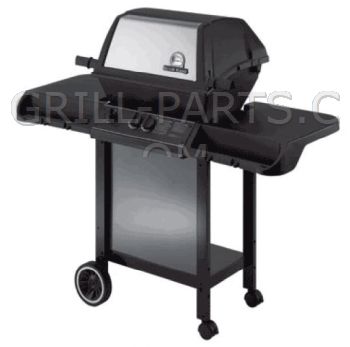

Broil King Monarch 20 543-24 Grill Parts

Broil King logo



Broil King 543-24



Highest quality replacement parts for your Broil King Monarch 20 543-24 - Free USA shipping $49 or more* - No Sales Tax*



Broil King 543-24 owners manual and diagrams
Click the small images on the right to view Broil King 543-24 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Broil King 543-24-346554633-PartsExpS1.gif  Broil King 543-24-346554633-PartsExpS1.jpg  Broil King 543-24-346554633-PartsLstS1.gif  Broil King 543-24-346554633-PartsLstS1.jpg  Broil King 543-24-346554633-PartsLstS2.gif

Replacement gas grill parts for Broil King Monarch 20 543-24
This page shows all of the parts we know fit model Broil King 543-24. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Broil King grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Broil King 543-24 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Broil King model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



543-24 Burners

10390-T401
Click for photos
Genuine OEM Broil King stainless steel burner and venturi assembly for Broil King model 543-24.

Part Number: 10390-T401
Dimensions: 6 1/2” x 14 5/8”
Material: Stainless steel
Weight: 2.3

$65.30

Qty


==> All Broil King Burners.






543-24 Cooking Grids

10225-T356
Click for photos
Genuine OEM Broil King cast iron cooking grid SOLD INDIVIDUALLY for Broil King model 543-24.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain treated, flat matte finish


Part Number: 10225-T356
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 10 3/4”
Material: Cast iron
Weight: 6.1

$55.49

Qty


63262
Click for photos
Cast iron cooking grids for Broil King model 543-24. Porcelain treated, flat matte finish. Sold as a set of two (2).

Part Number: 63262
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: matte cast iron
Weight: 15.1

$105.10

Qty


==> All Broil King Cooking Grids.






543-24 Heat Plates

10222-T325
Click for photos
Genuine OEM Broil King stainless steel Flav-R-Wave SS heat plate for Broil King model 543-24.

Part Number: 10222-T325
Dimension Front-to-Back: 10 3/8”
Dimension Side-to-Side: 18”
Material: Stainless steel
Weight: 2.4

$37.43

Qty


==> All Broil King Heat Plates.






543-24 Igniter Components

10342-247
Click for photos
Genuine OEM Broil King electronic push-button 4-spade igniter.
  • Uses AAA battery (not included)
  • Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-247
Weight: 0.5

$18.49

Qty


10342-T301
Click for photos
Genuine OEM Broil King collector box and electrode assembly. Includes:
  • burner mounted box with mounting screw
  • ceramic electrode and 17” wire with round connector and protective sleeve
  • Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T301
Weight: 0.05

$10.95

Qty


==> All Broil King Igniter Components.






543-24 Grease Trays

S15111
Click for photos
Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

$3.11

Qty


==> All Broil King Grease Trays.






543-24 Knobs and Handles

10472-K40
Click for photos
Genuine OEM Broil King rotary igniter knob.

Part Number: 10472-K40
Weight: 0.1

$5.15

Qty


10239-7
Click for photos
Triangular handle washer. 1/8 in thick. Made of heat resistant compressed material.

Part Number: 10239-7
Dimensions: 1 1/2” x 1 1/4”
Weight: 0.05

$1.95

Qty


==> All Broil King Knobs and Handles.






543-24 Regulators and Hoses

HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B
Dimensions: 22
Weight: 0.8

$34.71

Qty


==> All Broil King Regulators and Hoses.






543-24 Wheels and Castors

10892-7G
Click for photos
Genuine OEM Broil King 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

$13.19

Qty


10892-13
Click for photos
Genuine OEM Broil King twin wheel swivel castor, approximately 2 3/8 inch.

Part Number: 10892-13
Weight: 0.35

$7.27

Qty


10240-13
Click for photos
Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

$2.23

Qty


==> All Broil King Wheels and Castors.






543-24 Valves, Orifices, and Manifolds

10440-E36
Click for photos
Genuine OEM Broil King LP twin valve assembly. Includes orifices. (CONTROL ASSEMBLY 44M 2V LP T35)

Part Number: 10440-E36
Material: brass/aluminum
Weight: 0.7

$30.14

Qty


==> All Broil King Valves, Orifices, and Manifolds.






543-24 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.77

Qty


==> All Broil King Heat indicators and Meat Thermometers.






543-24 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


Y-6616
Click for photos
Bolt

Part Number: Y-6616
Weight: 0.02

$1.08

Qty


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08

Qty


==> All Broil King Miscellaneous Repair Parts.






543-24 Shelves

10184-E461
Click for photos
SHELF SUPPORT LH BLK

Part Number: 10184-E461
Weight: 1.0

$7.02

Qty


==> All Broil King Shelves.






543-24 Accessories

BP-5
Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

$9.75

Qty


40269
Click for photos
20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

SALE  $14.95
Qty


==> All 543-24 Accessories.
