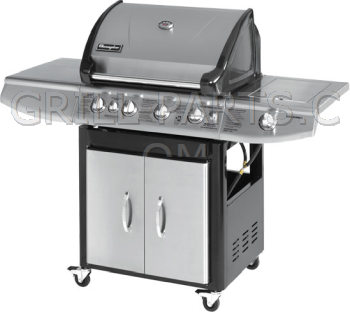

Brinkmann 810-8530-S Grill Parts

Adjustable universal front-to-back tube burner with top-ported flame holes for Brinkmann model 810-8530-S. This burner may not work with existing ignition electrodes and back burner cross-overs.

• Variable length burner adjusts from 13 1/2” to 17 1/2”.
• Includes extra hardware and mounting brackets to accommodate almost all grills.
• Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

Premium grade 304 stainless burner for Brinkmann model 810-8530-S.


Part Number: CTB3
Dimensions: 15 7/8
Material: stainless steel
Weight: 1.0

Cast iron cooking grids for Brinkmann model 810-8530-S. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 19 1/8” x 12 3/8”
• Overall dimensions: 19 1/8” x 24 3/4”

Part Number: CG-58P-CI-X2
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 16.7

Premium quality heavy duty stainless steel cooking grid for Brinkmann model 810-8530-S. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 8 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 19 1/4” x 12 1/2”
• Made in USA.
• Sold individually.

Part Number: CLA-GS0190
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 12 1/2”
Material: stainless steel
Weight: 8.0

Cast iron cooking grid for Brinkmann model 810-8530-S. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-58P-CI (Replaces Brinkmann 115-2300-0)
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 8.35

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-8530-S. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0159-X4
Dimension Front-to-Back: 17 9/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 4.48

SET OF FIVE (5) PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-8530-S. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0159-X5
Dimension Front-to-Back: 17 9/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 5.6

Stainless steel heat plate/Flame Tamer for Brinkmann model 810-8530-S.


Part Number: CHMBHP1
Dimension Front-to-Back: 17 11/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 1.0

Lower heat shield. Made in USA

Part Number: CLA-MS0273
Dimensions: 12 3/16” x 22 1/16”
Material: stainless steel
Weight: 2.30

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007 (Replaces Brinkmann 119-4400-5)
Weight: 0.2

Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-23B (Replaces Brinkmann 600-7419-B)
Weight: 0.3

Stainless steel grease tray. Includes handle, grease shield and hardware; unassembled. Made in USA.

Part Number: CLA-DS0275
Dimensions: 20 1/4” x 23 1/4”
Material: stainless steel
Weight: 8.10

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B (Replaces Brinkmann 155-7600-0)
Weight: 0.8

Universal four piece mini thermometer set. Great gift idea.

• 2 calibrated for steak, and 2 for chicken
• Mini thermometers for testing doneness of individual cuts of meat
• Silicone bezels for easy removal when hot
• Always use caution when handling hot objects

Part Number: 11381
Weight: .25

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Part Number: 00185
Material: stainless
Weight: .3

Rib & Roast Rack.

Reversible rib rack and roast support. Made of stainless steel with a frame that holds 6 racks of ribs and a roast support for large cuts of meat.

Part Number: 41616
Material: stainless steel
Weight: 0.5

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
