Brinkmann 810-6650-T Grill Parts

Brinkmann 810-6650-T

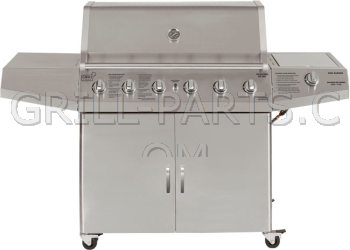

Grill Zone 6650 6-Burner LP gas grill with side burner

Highest quality replacement parts for your Brinkmann 810-6650-T - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-6650-T owners manual and diagrams

Diagrams & owners manual not available for grill model# 810-6650-T. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement BBQ grill parts for Brinkmann model: 810-6650-T

All of the parts we have for Brinkmann 810-6650-T are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-6650-T BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-6650-T Burners

154-2500-0-X6 / 154-2500-0-R-X6

Click for photos

154-2500-0-R-X6 Cast iron burners for Brinkmann model 810-6650-T. Set of six (6). Fits some Brinkman and Grill Zone 6-Burner gas grills. May fit other grill models. This aftermarket burner replaces original burner part# 154-2500-0.

This a 6-pack of burners.

Part Number: 154-2500-0-R-X6 (Replaces Brinkmann 154-2500-0-X6)
Dimensions: 12 7/8” x 2 1/8”
Material: cast iron
Weight: 13.2

154-2500-0 / 154-2500-0-R

Click for photos

154-2500-0-R Cast iron burner for some Brinkmann and Grill Zone 3, 4, and 6 burner grills for Brinkmann model 810-6650-T. Sold individually.

This aftermarket part replaces original Brinkmann part# 154-2500-0.

Part Number: 154-2500-0-R (Replaces Brinkmann 154-2500-0)
Dimensions: 12 7/8” x 2 1/8”
Material: cast iron
Weight: 2.2

==> All Brinkmann Burners.

810-6650-T Burner Brackets and Carryovers

CLA-MS0069

Click for photos

Main burner support bracket with carryovers; made of stainless steel. Replaces Brinkmann OEM part# 600-4600-0. Made in USA.

Part Number: CLA-MS0069
Dimensions: 36 1/4
Material: stainless steel
Weight: 1.3

==> All Brinkmann Burner Brackets and Carryovers.

810-6650-T Cooking Grids

115-4425-B / CG-63P-CI

Click for photos

Cast iron cooking grid for Brinkmann model 810-6650-T. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-63P-CI (Replaces Brinkmann 115-4425-B)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 11 3/4”
Material: cast iron
Weight: 7.15

==> All Brinkmann Cooking Grids.

810-6650-T Heat Plates

CLA-TS0001-X4

Click for photos

SET OF FOUR/4 PACK Stainless steel Flame Tamer for Brinkmann model 810-6650-T. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0001-X4
Dimension Front-to-Back: 13 1/2”
Dimension Side-to-Side: 4 1/2”
Material: stainless steel
Weight: 2.8

CLA-TS0001

Click for photos

Stainless steel Flame Tamer for Brinkmann model 810-6650-T. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0001
Dimension Front-to-Back: 13 1/2”
Dimension Side-to-Side: 4 1/2”
Material: stainless steel
Weight: 0.7

==> All Brinkmann Heat Plates.

810-6650-T Igniter Components

IGEIB6-B

Click for photos

Battery powered push button igniter.

Has six (6) spade type male connectors.
Uses 1 AA battery (not supplied)
Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB6-B
Weight: 0.3

IG-30B

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

IG-48B

Click for photos

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

==> All Brinkmann Igniter Components.

810-6650-T Accessories

00270

Click for photos

Maple wood chips.

All natural wood smoke flavor
Great for use in BBQ's or smokers.
170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00270
Weight: 1.3

43108

Click for photos

Polished stainless steel turner with an ergonomic soft grip grey handle and red accents. Great for flipping burgers or turning delicate fish fillets.

Part Number: 43108
Dimensions: 16
Material: stainless steel
Weight: 0.10

41338

Click for photos

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

BB-5

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

RR-3

Click for photos

Roast holder. This holder is an ideal way to cook and also carry a roast from the grill. Made of heavy, bright nickel-plated steel, 15 1/4” L x 10 1/2” W.

Part Number: RR-3
Dimensions: 19 1/2
Weight: 1.0

WB-7

Click for photos

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2

==> All 810-6650-T Accessories.
