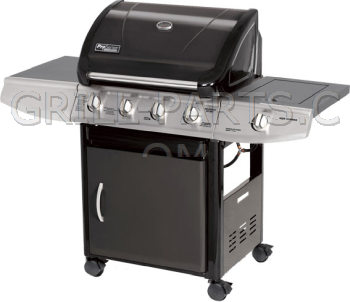

Brinkmann Pro Series 7451 810-7451-S Grill Parts

Adjustable universal front-to-back tube burner with top-ported flame holes for Brinkmann model 810-7451-S. This burner may not work with existing ignition electrodes and back burner cross-overs.

• Variable length burner adjusts from 13 1/2” to 17 1/2”.
• Includes extra hardware and mounting brackets to accommodate almost all grills.
• Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

Stainless steel tube burners for Brinkmann model 810-7451-S. SET OF THREE (3). Fits Brinkmann and Brinkmann-made 3-burner grills from Lowes, Home Depot, Academy Sports, Bass Pro, Kenmore and more.
Includes:

• SS tube burner
• Spider exclusion screen
• Adjustable air shutter.

Part Number: 14011-X3
Dimensions: 16 3/16” x 1”
Material: stainless steel
Weight: 2.4

Stainless steel tube burners for Brinkmann model 810-7451-S. SET OF FOUR (4). Fits Brinkmann and Brinkmann-made 4-burner grills from Lowes, Home Depot, Academy Sports, Bass Pro, Kenmore and more.
Includes:

• SS tube burner
• Spider exclusion screen
• Adjustable air shutter.

Part Number: 14011-X4
Dimensions: 16 3/16” x 1”
Material: stainless steel
Weight: 0.8

Stainless steel tube burners for Brinkmann model 810-7451-S. SET OF FIVE (5). Fits Brinkmann and Brinkmann-made 5-burner grills from Lowes, Home Depot, Academy Sports, Bass Pro, Kenmore and more.
Includes:

• SS tube burner
• Spider exclusion screen
• Adjustable air shutter.

Part Number: 14011-X5
Dimensions: 16 3/16” x 1”
Material: stainless steel
Weight: 4.0

Stainless steel burner for OEM # 154-9520-0 for Brinkmann model 810-7451-S.


Part Number: BMTB3
Dimensions: 15 5/16
Material: stainless steel
Weight: .70

stainless steel burner for Brinkmann model 810-7451-S.

Part Number: CTB2 (Replaces Brinkmann 812-7140-0)
Dimensions: 16 1/4
Material: stainless steel
Weight: 1.0

Stainless steel cross over tube. Channels gas between burners.

Part Number: BMCO4
Dimensions: 2 3/8” x 7 9/16”
Material: stainless steel
Weight: 0.13

Stainless steel burner cross-over tube.

Part Number: 09423 (Replaces Brinkmann 600-7450-5)
Dimensions: 7 5/8” x 2 3/8”
Material: stainless steel
Weight: 0.2

Cast iron cooking grid for Brinkmann model 810-7451-S.

• Sold individually
• Number required varies, check your grill
• Porcelain enameled, glossy finish

Part Number: 22005-181-R
Dimension Front-to-Back: 19 1/16”
Dimension Side-to-Side: 12 1/2”
Material: Cast iron
Weight: 7.5

Cast iron cooking grid for Brinkmann model 810-7451-S. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-58P-CI
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 8.35

Cast iron cooking grids for Brinkmann model 810-7451-S. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 19 1/8” x 12 3/8”
• Overall dimensions: 19 1/8” x 24 3/4”

Part Number: CG-58P-CI-X2
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 16.7

Premium quality heavy duty stainless steel cooking grid for Brinkmann model 810-7451-S. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 8 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 19 1/4” x 12 1/2”
• Made in USA.
• Sold individually.

Part Number: CLA-GS0190
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 12 1/2”
Material: stainless steel
Weight: 8.0

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-7451-S. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0159-X4
Dimension Front-to-Back: 17 9/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 4.48

SET OF FIVE (5) PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-7451-S. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0159-X5
Dimension Front-to-Back: 17 9/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 5.6

Stainless steel heat plate/Flame Tamer for Brinkmann model 810-7451-S.


Part Number: CHMBHP1
Dimension Front-to-Back: 17 11/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 1.0

Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-22B
Weight: 0.3

Stainless steel grease tray. Includes handle, grease shield and hardware; unassembled. Made in USA.

Part Number: CLA-DS0275 (Replaces Brinkmann 600-7453-2)
Dimensions: 20 1/4” x 23 1/4”
Material: stainless steel
Weight: 8.10

Oval lid heat indicator. Three-hole mount with two threaded studs 1 1/2” offset on center. Requires 3/8” center hole for temperature sensor probe.

Part Number: 22551 (Replaces Brinkmann 072-7310-0)
Dimensions: 2 15/16” x 1 7/8”
Weight: 0.2

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
