Brinkmann Pro Series 2200 810-2200-0 Grill Parts

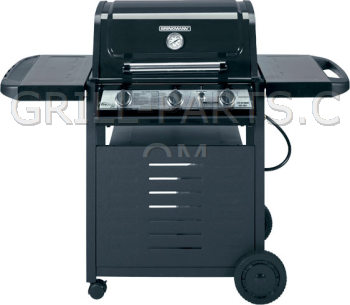

Brinkmann Pro Series 2200 Porcelain 3 Burner Gas Grill

Highest quality replacement parts for your Brinkmann Pro Series 2200 810-2200-0 - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-2200-0 owners manual and diagrams

Click the small images on the right to view Brinkmann 810-2200-0 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Brinkmann 810-2200-0-31899449999839-PartsExpS1.gif

Replacement grill parts for the Brinkmann Pro Series 2200 810-2200-0

All of the parts we have for Brinkmann 810-2200-0 are shown on this page. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-2200-0 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-2200-0 Burners

Click for photos

Cast iron burner for Brinkmann model 810-2200-0.

Part Number: CIT-L (Replaces Brinkmann 154-2300-5)
Dimensions: 16 1/4” x 2 3/8”
Material: cast iron
Weight: 4.0

==> All Brinkmann Burners.

810-2200-0 Cooking Grids

Click for photos

Cast iron cooking grid for Brinkmann model 810-2200-0. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-58P-CI (Replaces Brinkmann 115-2300-0)
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 8.35

==> All Brinkmann Cooking Grids.

810-2200-0 Heat Plates

Click for photos

Stainless steel heat tent for Brinkmann made grills for Brinkmann model 810-2200-0. These stainless steel replacement plates are far superior to porcelain coated steel originals. Sold individually, number required varies.

Part Number: BMHP2 (Replaces Brinkmann 600-2302-0)
Dimension Front-to-Back: 16 3/8”
Dimension Side-to-Side: 12”
Material: stainless steel
Weight: 2.10

==> All Brinkmann Heat Plates.

810-2200-0 Igniter Components

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Click for photos

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007 (Replaces Brinkmann 119-4400-5)
Weight: 0.2

Click for photos

Collector box with ceramic igniter electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-21B (Replaces Brinkmann 600-7541-B)
Weight: 0.2

==> All Brinkmann Igniter Components.

810-2200-0 Rotisserie components

Click for photos

Heavy duty stainless steel 6 1/4” x 4” x 2 1/8” cased universal rotisserie motor. On-off switch and 3 foot cord. Maximum 25 lb. balanced load. (120V, 9W, 50/60 HZ, RPM: 2.5/2.8)

Part Number: RO-6
Material: Stainless steel case
Weight: 2.0

==> All Brinkmann Rotisserie components.

810-2200-0 Heat indicators and Meat Thermometers

Click for photos

heat indicator

Part Number: 02351 (Replaces Brinkmann 072-2200-0)
Dimensions: 2 5/8” x 2 5/8”
Weight: 0.2

==> All Brinkmann Heat indicators and Meat Thermometers.

810-2200-0 Accessories

Click for photos

Apple wood chips.

All natural wood smoke flavor
Great for use in BBQ's or smokers.
170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00230
Weight: 2.0

Click for photos

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.

Part Number: 40269
Material: stainless steel
Weight: 0.14

Click for photos

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

Ideal for searving or grilling appetizers
Wide end for easy handling

Part Number: 11040
Dimensions: 7
Weight: 0.4

Click for photos

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

==> All 810-2200-0 Accessories.
