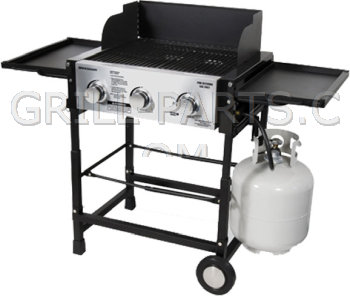

Brinkmann 810-9390-1 Grill Parts

Highest quality replacement parts for your Brinkmann 810-9390-1 - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-9390-1 owners manual and diagrams

Diagrams & owners manual not available for grill model# 810-9390-1. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts for Brinkmann model: 810-9390-1

On this page you'll find all of the parts that fit model Brinkmann 810-9390-1. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-9390-1 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-9390-1 Burners

Click for photos

Stainless steel burner for Brinkmann model 810-9390-1.

Part Number: BMGKTB1
Dimensions: 14 5/8
Material: stainless steel
Weight: 1.0

==> All Brinkmann Burners.

810-9390-1 Cooking Grids

Click for photos

Cast iron cooking grids for Brinkmann model 810-9390-1. SET OF TWO (2) panels.

Porcelain treated, matte finish
Each panel measures 17 5/8” x 10 3/8”
Overall dimensions: 17 5/8 x 20 3/4”

Part Number: CG-67P-CI-X2
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 20 3/4”
Material: cast iron
Weight: 13.9

Click for photos

Cast iron cooking grid for Brinkmann model 810-9390-1. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-67P-CI
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 6.95

==> All Brinkmann Cooking Grids.

810-9390-1 Heat Plates

Heat Plate/ Flame Tamer not known for Brinkmann model 810-9390-1. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

==> All Brinkmann Heat Plates.

810-9390-1 Igniter Components

Click for photos

Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-22B
Weight: 0.3

==> All Brinkmann Igniter Components.

810-9390-1 Accessories

Click for photos

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

Click for photos

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All 810-9390-1 Accessories.
