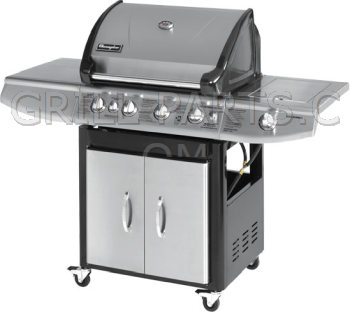

Brinkmann 810-8530-F Grill Parts

Adjustable universal front-to-back tube burner with top-ported flame holes for Brinkmann model 810-8530-F. This burner may not work with existing ignition electrodes and back burner cross-overs.

• Variable length burner adjusts from 13 1/2” to 17 1/2”.
• Includes extra hardware and mounting brackets to accommodate almost all grills.
• Comes with complete installation instructions and diagrams.

WARNING: Before ordering this universal burner, please verify that it will work in your grill per the specifications above. If you order this universal burner and it does not work in your grill, please review our Return Policy for ”Ordered Wrong Part.” You will be responsible for all shipping fees.


Part Number: FP-BR1001
Material: stainless steel
Weight: 0.7

Premium grade 304 stainless burner for Brinkmann model 810-8530-F.


Part Number: CTB3
Dimensions: 15 7/8
Material: stainless steel
Weight: 1.0

Cast iron cooking grids for Brinkmann model 810-8530-F. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 19 1/8” x 12 3/8”
• Overall dimensions: 19 1/8” x 24 3/4”

Part Number: CG-58P-CI-X2
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 16.7

Premium quality heavy duty stainless steel cooking grid for Brinkmann model 810-8530-F. Our USA-made premium stainless grids are simply the best obtainable. We have them manufactured here in the USA to our specifications and standards, which are high. Of course, they're not available anywhere else.

Unlike the standard issue stainless grids generally found today, which are typically low grade stainless and sometimes hollow, or coated carbon steel, our premium grids are made from solid high quality stainless steel rods. If you're looking for the best, you've found it. Just look at the weight of one of these grids, over 8 pounds of solid stainless each.

• 304 commercial grade stainless steel
• Large diameter 5/16” solid stainless rods
• Dimensions: 19 1/4” x 12 1/2”
• Made in USA.
• Sold individually.

Part Number: CLA-GS0190
Dimension Front-to-Back: 19 1/4”
Dimension Side-to-Side: 12 1/2”
Material: stainless steel
Weight: 8.0

Cast iron cooking grid for Brinkmann model 810-8530-F. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-58P-CI (Replaces Brinkmann 115-2300-0)
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 8.35

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-8530-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0159-X4
Dimension Front-to-Back: 17 9/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 4.48

SET OF FIVE (5) PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-8530-F. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0159-X5
Dimension Front-to-Back: 17 9/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 5.6

Stainless steel heat plate/Flame Tamer for Brinkmann model 810-8530-F.


Part Number: CHMBHP1
Dimension Front-to-Back: 17 11/16”
Dimension Side-to-Side: 6 5/16”
Material: stainless steel
Weight: 1.0

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007 (Replaces Brinkmann 119-4400-5)
Weight: 0.2

Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-23B (Replaces Brinkmann 600-7419-B)
Weight: 0.3

Stainless steel grease tray. Includes handle, grease shield and hardware; unassembled. Made in USA.

Part Number: CLA-DS0275
Dimensions: 20 1/4” x 23 1/4”
Material: stainless steel
Weight: 8.10

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B (Replaces Brinkmann 155-7600-0)
Weight: 0.8

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Extra long stainless steel fork with ergonomically correct handles. 20 1/2” long.

Part Number: ITF-2
Dimensions: 20 1/2
Material: stainless steel
Weight: 0.3

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

Cast iron smoker box with six oblong venting holes. Fill with water-soaked wood chips and add smoke flavor to you food. Designed to release wood smoke.

• Works with both charcoal and gas grills.
• Easy to use and refill.
• Long lasting cast iron.

Part Number: 00150
Dimensions: 5 1/4” x 8 3/8”
Material: cast iron
Weight: 3.90

Non-Stick Wing Rack.

A convenient non-stick coated wire wing rack with folding legs, the best way to roast chicken legs and wings on the grill without the hassle of flipping, turning or sticking. For wings and drumsticks.

Part Number: 41551
Weight: 0.5

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
