Brinkmann Pro Series 4425 810-4425-1 Grill Parts

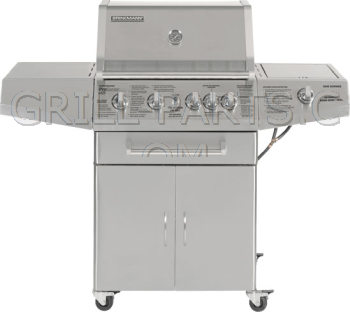

Brinkmann Pro Series 4425 - 4 Burner Gas Grill

Highest quality replacement parts for your Brinkmann Pro Series 4425 810-4425-1 - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-4425-1 owners manual and diagrams

Click the small images on the right to view Brinkmann 810-4425-1 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Brinkmann 810-4425-1-31899664448839-PartsExpS1.gif

Replacement grill parts to fit Brinkmann Pro Series 4425 810-4425-1

This page shows all of the parts we know fit model Brinkmann 810-4425-1. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Brinkmann grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Brinkmann 810-4425-1 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-4425-1 Burners

Click for photos

154-2500-0-R-X4 Cast iron burners for Brinkmann model 810-4425-1. Set of four (4). FIts some Brinkman and Grill Zone 4-Burner gas grills. May fit other grill models. This aftermarket burner replaces original burner part# 154-2500-0.

This a 4-pack of burners.

Part Number: 154-2500-0-R-X4 (Replaces Brinkmann 154-2500-0-X4)
Dimensions: 12 7/8” x 2 1/8”
Material: cast iron
Weight: 8.8

Click for photos

154-2500-0-R Cast iron burner for some Brinkmann and Grill Zone 3, 4, and 6 burner grills for Brinkmann model 810-4425-1. Sold individually.

This aftermarket part replaces original Brinkmann part# 154-2500-0.

Part Number: 154-2500-0-R (Replaces Brinkmann 154-2500-0)
Dimensions: 12 7/8” x 2 1/8”
Material: cast iron
Weight: 2.2

==> All Brinkmann Burners.

810-4425-1 Cooking Grids

Click for photos

Cast iron cooking grids for Brinkmann model 810-4425-1. SET OF TWO (2) panels.

Porcelain treated, matte finish
Each panel measures 16 15/16” x11 3/4”
Overall dimensions: 16 15/16” x23 1/2”

Part Number: CG-63P-CI-X2
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 11 3/4”
Material: cast iron
Weight: 14.30

Click for photos

Cast iron cooking grid for Brinkmann model 810-4425-1. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-63P-CI (Replaces Brinkmann 115-4425-B)
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 11 3/4”
Material: cast iron
Weight: 7.15

==> All Brinkmann Cooking Grids.

810-4425-1 Heat Plates

Click for photos

Stainless steel Flame Tamer for Brinkmann model 810-4425-1. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0001
Dimension Front-to-Back: 13 1/2”
Dimension Side-to-Side: 4 1/2”
Material: stainless steel
Weight: 0.7

Click for photos

SET OF FOUR/4 PACK Stainless steel Flame Tamer for Brinkmann model 810-4425-1. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0001-X4
Dimension Front-to-Back: 13 1/2”
Dimension Side-to-Side: 4 1/2”
Material: stainless steel
Weight: 2.8

==> All Brinkmann Heat Plates.

810-4425-1 Igniter Components

Click for photos

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007 (Replaces Brinkmann 119-4400-5)
Weight: 0.2

==> All Brinkmann Igniter Components.

810-4425-1 Heat indicators and Meat Thermometers

Click for photos

heat indicator

Part Number: 02351 (Replaces Brinkmann 072-2400-0)
Dimensions: 2 5/8” x 2 5/8”
Weight: 0.2

==> All Brinkmann Heat indicators and Meat Thermometers.

810-4425-1 Accessories

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

Click for photos

15” Stainless steel tong.

Soft comfort grip
Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Click for photos

Stainless steel chicken roaster. Commonly called Beer Can roasters.

The best way to roast poultry on the grill
For use in barbecues and ovens
Dishwasher safe
Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

==> All 810-4425-1 Accessories.
