Brinkmann 810-9520-S Grill Parts

Brinkmann logo



Brinkmann 810-9520-S

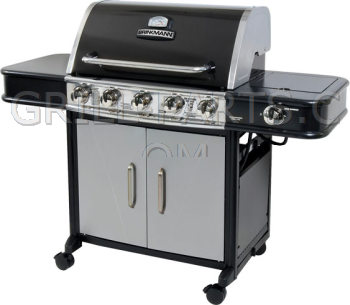

Brinkmann 5 Burner Porcelain-Coated Gas Grill



Highest quality replacement parts for your Brinkmann 810-9520-S - Free USA shipping $49 or more* - No Sales Tax*



Brinkmann 810-9520-S owners manual and diagrams
Diagrams & owners manual not available for grill model# 810-9520-S. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts for Brinkmann model: 810-9520-S
All of the parts we have for Brinkmann 810-9520-S are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-9520-S BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



810-9520-S Burners

BMTB3
Click for photos
Stainless steel burner for OEM # 154-9520-0 for Brinkmann model 810-9520-S.

Part Number: BMTB3
Dimensions: 15 5/16
Material: stainless steel
Weight: .70

$40.19


==> All Brinkmann Burners.






810-9520-S Burner Brackets and Carryovers

600-9520-4 / BMCO7
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: BMCO7 (Replaces Brinkmann 600-9520-4)
Dimensions: 2 3/8” x 6 15/16”
Material: stainless steel
Weight: 0.15

$14.82


==> All Brinkmann Burner Brackets and Carryovers.






810-9520-S Cooking Grids

69763-1PC
Click for photos
Cast iron cooking grid for Brinkmann model 810-9520-S. Porcelain enameled, glossy finish. Sold inidividually, number of pieces needed varies by grill.

Part Number: 69763-1PC
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 10 3/8”
Material: gloss cast iron
Weight: 12.7

$35.57


CG-67P-CI
Click for photos
Cast iron cooking grid for Brinkmann model 810-9520-S. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-67P-CI
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 10 3/8”
Material: cast iron
Weight: 6.95

$53.45


CG-73P-CI
Click for photos
Cast iron cooking grid for Brinkmann model 810-9520-S. Porcelain treated, matte finish. Fits Many Brinkman, Grill King, Kenmore, Master Forge and Other Import Grills. Sold individually, number required varies.

Part Number: CG-73P-CI
Dimension Front-to-Back: 17 5/8”
Dimension Side-to-Side: 8 3/4”
Material: cast iron
Weight: 5.55

$46.39


==> All Brinkmann Cooking Grids.






810-9520-S Heat Plates

CLA-TS0147-X4
Click for photos
SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates for Brinkmann model 810-9520-S. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0147-X4
Dimension Front-to-Back: 15 5/16”
Dimension Side-to-Side: 3 5/8”
Material: stainless steel
Weight: 2.16

$79.80


CLA-TS0147-X5
Click for photos
SET OF FIVE/5 PACK Stainless steel Heat Distribution Plates for Brinkmann model 810-9520-S. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0147-X5
Dimension Front-to-Back: 15 5/16”
Dimension Side-to-Side: 3 5/8”
Material: stainless steel
Weight: 2.7

$93.60


BMHP8
Click for photos
Stainless steel Heat Tent/ Flame Tamer for Brinkmann model 810-9520-S. Sold individually, number required varies.

Part Number: BMHP8
Dimension Front-to-Back: 15 3/8”
Dimension Side-to-Side: 3 9/16”
Material: stainless steel
Weight: 0.5

$22.94


==> All Brinkmann Heat Plates.






810-9520-S Igniter Components

600-7450-B / IG-22B
Click for photos
Collector box with ceramic electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-22B (Replaces Brinkmann 600-7450-B)
Weight: 0.3

$14.61


==> All Brinkmann Igniter Components.






810-9520-S Regulators and Hoses

155-7600-0 / HR-4B
Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs



Part Number: HR-4B (Replaces Brinkmann 155-7600-0)
Weight: 0.8

$35.70


==> All Brinkmann Regulators and Hoses.






810-9520-S Heat indicators and Meat Thermometers

072-7231-0 / 072-6800-0
Click for photos
Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0 (Replaces Brinkmann 072-7231-0)
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

$9.95


==> All Brinkmann Heat indicators and Meat Thermometers.






810-9520-S Accessories

BP-6
Click for photos
Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

$9.75


ITF-2
Click for photos
Extra long stainless steel fork with ergonomically correct handles. 20 1/2” long.

Part Number: ITF-2
Dimensions: 20 1/2
Material: stainless steel
Weight: 0.3

$13.80


24785
Click for photos
Deluxe non-stick flat spit basket. Attaches to 3/8” rotisserie rod with adjustable lid to secure food. 16”x7.5”x2”
WARNING: Before ordering, please verify that your rotisserie spit rod can fit through the .48 inch x .48 squared mounting holes. Our spit rod part numbers SR-5, SR-8 and SR-43 do fit.

Part Number: 24785
Dimensions: 7 1/2” x 16”
Weight: 1.5

$22.60


14913
Click for photos

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.



Part Number: 14913
Material: stailess steel
Weight: 0.5

$14.41


50426
Click for photos
Aluminum foil grilling trays. Package of three.
  • Heavy duty aluminum foil
  • Re-usable
  • Great for grilling delicate foods like fish and veggies


Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

$8.64


90963
Click for photos
Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most



Part Number: 90963
Weight: 0.2

$19.30


==> All 810-9520-S Accessories.
