Brinkmann Pro Series 2400 810-2400-2 Grill Parts

Brinkmann 810-2400-2

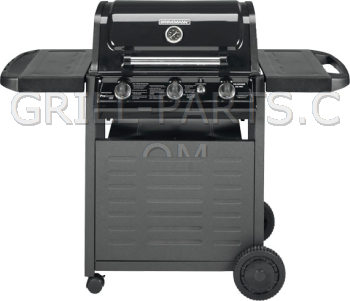

Brinkmann Pro Series 2400 Porcelain 3 Burner Gas Grill

Highest quality replacement parts for your Brinkmann Pro Series 2400 810-2400-2 - Free USA shipping $49 or more* - No Sales Tax*

Brinkmann 810-2400-2 owners manual and diagrams

Click the small images on the right to view Brinkmann 810-2400-2 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Brinkmann 810-2400-2-31899469994839-PartsExpS1.gif

Replacement gas grill parts for Brinkmann Pro Series 2400 810-2400-2

On this page you'll find all of the parts that fit model Brinkmann 810-2400-2. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a warming rack and there are none here, click the warming rack button to see all of the racks we have for Brinkmann grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Brinkmann 810-2400-2 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Brinkmann model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

810-2400-2 Burners

154-2300-5 / CIT-L

Click for photos

Cast iron burner for Brinkmann model 810-2400-2.

Part Number: CIT-L (Replaces Brinkmann 154-2300-5)
Dimensions: 16 1/4” x 2 3/8”
Material: cast iron
Weight: 4.0

==> All Brinkmann Burners.

810-2400-2 Cooking Grids

115-2300-0 / CG-58P-CI

Click for photos

Cast iron cooking grid for Brinkmann model 810-2400-2. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-58P-CI (Replaces Brinkmann 115-2300-0)
Dimension Front-to-Back: 19 1/8”
Dimension Side-to-Side: 12 3/8”
Material: cast iron
Weight: 8.35

==> All Brinkmann Cooking Grids.

810-2400-2 Heat Plates

CLA-TS0156-X3

Click for photos

SET OF THREE/3 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-2400-2. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.1

CLA-TS0156-X4

Click for photos

SET OF FOUR/4 PACK Stainless steel Heat Distribution Plates/Flame Tamers for Brinkmann model 810-2400-2. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.e.

Part Number: CLA-TS0156-X4
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 3 15/16”
Material: stainless steel
Weight: 2.8

600-2302-5 / BMHP1

Click for photos

Stainless steel heat distribution plate for Brinkmann model 810-2400-2.

Part Number: BMHP1 (Replaces Brinkmann 600-2302-5)
Dimension Front-to-Back: 16 3/4”
Dimension Side-to-Side: 3 7/8”
Material: stainless steel
Weight: 0.7

==> All Brinkmann Heat Plates.

810-2400-2 Igniter Components

TS-IG4010

Click for photos

Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: TS-IG4010
Weight: 0.2

IGEIB4-B

Click for photos

Battery powered push button igniter.

Has four (4) spade type male connectors.
Uses 1 AAA battery (not supplied)
Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB4-B
Weight: 0.3

IG-30B

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

IG-48B

Click for photos

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

IG-21B

Click for photos

Collector box with ceramic igniter electrode and wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-21B
Weight: 0.2

119-4400-5 / TS-IG3007

Click for photos

Push-button electronic igniter with three (3) spade connectors. Comes with sliver or black cap per availability. Needs (1) AA battery (not included); requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG3007 (Replaces Brinkmann 119-4400-5)
Weight: 0.2

==> All Brinkmann Igniter Components.

810-2400-2 Regulators and Hoses

155-7600-0 / HR-4B

Click for photos

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B (Replaces Brinkmann 155-7600-0)
Weight: 0.8

==> All Brinkmann Regulators and Hoses.

810-2400-2 Rotisserie components

RO-6

Click for photos

Heavy duty stainless steel 6 1/4” x 4” x 2 1/8” cased universal rotisserie motor. On-off switch and 3 foot cord. Maximum 25 lb. balanced load. (120V, 9W, 50/60 HZ, RPM: 2.5/2.8)

Part Number: RO-6
Material: Stainless steel case
Weight: 2.0

==> All Brinkmann Rotisserie components.

810-2400-2 Heat indicators and Meat Thermometers

02351

Click for photos

heat indicator

Part Number: 02351
Dimensions: 2 5/8” x 2 5/8”
Weight: 0.2

==> All Brinkmann Heat indicators and Meat Thermometers.

810-2400-2 Accessories

00281

Click for photos

Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

44070

Click for photos

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

SR-7B

Click for photos

Universal 6 piece chrome plated skewer set. Designed so food does not rotate. Great for kabobs! 19 1/2” long.

Part Number: SR-7B
Dimensions: 19 1/2
Material: chrome steel
Weight: 1.0

14950

Click for photos

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

WB-1

Click for photos

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All 810-2400-2 Accessories.
