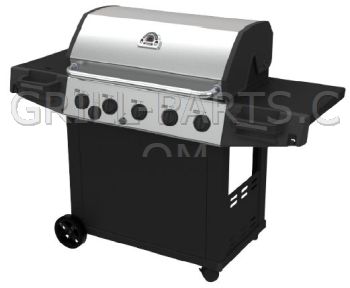

Sterling 5130-64 Grill Parts

Genuine OEM Sterling stainless steel burner replaces original part number 52904-144 (52904-144LP and 52904-144NG) for Sterling model 5130-64. For LP grills, adjust air shutter to about 1/3 opened and for NG adjust about 2/3 open or more as needed.

Part Number: 52924-144
Dimensions: 15 3/4
Material: stainless steel
Weight: 0.8

COVER SIDE BURNER BLACK for Sterling model 5130-64.

Part Number: 23000-251
Dimensions: 14 1/4” x 11 3/16”
Weight: 1.80

SIDE BURNER GRID BLK 330/440/550 for Sterling model 5130-64. Grid for side burner. 9” diameter round and has two support prongs. Porcelain coated, glossy finish.

Note: Some owners manuals incorrectly list this part as 53139-98.

Part Number: 53140-981
Weight: .8

Replacement for OEM part numbers 52002-181, 52005-281, 52007-181 cast iron cooking grids per the manufacturer for Sterling model 5130-64. SOLD INDIVIDUALLY.
NOTE: The number of pieces required varies by grill size. Check your grill's cooking grids support area to determine the number of panels needed.

Part Number: 11241
Dimension Front-to-Back: 17 7/16”
Dimension Side-to-Side: 6 3/16”
Material: cast iron
Weight: 5.5

Genuine OEM Sterling cooking grid for Sterling model 5130-64. Porcelain treated, matte finish. The number required varies, check your grill. SOLD INDIVIDUALLY.

Part Number: 52007-181
Dimension Front-to-Back: 17 3/8”
Dimension Side-to-Side: 6 5/16”
Material: cast iron
Weight: 3.10

Genuine OEM Sterling stainless steel Flav-R-Wave for Sterling model 5130-64.

Part Number: 52209-404
Dimension Front-to-Back: 15 7/8”
Dimension Side-to-Side: 6”
Material: stainless steel
Weight: 1.14

COLLECTOR BOX 550 UPPER 430SS

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 52216-014
Dimensions: 28
Weight: 0.2

Genuine OEM Sterling electronic push-button 4-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-247
Weight: 0.5

Genuine OEM Sterling electrode with 14” connector wire that has a spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E13
Weight: 0.05

Genuine OEM Sterling 32” wire for side burner and other applications. Both ends are female spade connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T18
Dimensions: 32
Weight: 0.05

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Sterling Porcelain Grease Pan.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

10472-K431 Control knob large. Black with stainless steel BA strip.

Genuine OEM control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 1/4”
• Socket diameter: 5/16”
• Knob stem: 1/2”

Part Number: 10472-K431
Weight: 0.1

Genuine OEM Sterling 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

CASTER BRACKET 440 BLK RESIN

Part Number: 51339-401
Weight: 0.1

Rubber castor, 3” w/plate, locking.

Part Number: 10892-23
Weight: 0.66

Genuine OEM Sterling Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

LID BUMPER

Part Number: Y-11231
Weight: 0.01

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

5-piece unique tennis oriented utensil set. Constructed of heavy stainless steel with ”tennis grips” on each utensil. Includes yellow tennis ball style salt & pepper shakers, along with spatula, fork and tong.

Makes a nice gift.for tennis-minded folks

Part Number: US10
Weight: 5.00

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Porcelain Coated Round Topper.
11” diameter x 2.5” deep porcelain coated wok with stainless steel handles and perforations. Rolled edge for rigidity and safety.

Part Number: 98130
Dimensions: 11
Material: porcelain steel
Weight: 1.0

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
