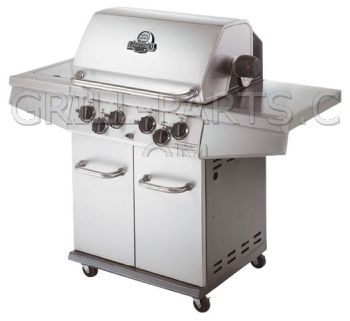

Sterling 586184 Grill Parts

Genuine OEM Sterling stainless steel Dual-Tube burner for Sterling model 586184. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

Side burner lid IR stainless steel for Sterling model 586184. Sometimes shipped with vinyl peel-off coating; remove before use.

Part Number: 23000-253
Dimensions: 14 1/4” x 11 3/16”
Material: stainless steel
Weight: 1.6

Cooking grid not known for Sterling model 586184. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Sterling cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

Genuine OEM Sterling stainless steel Flav-R-Wave heat plate / Vaporizer for Sterling model 586184. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM Sterling replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

Control panel heat shield. One required per grill.

Part Number: 22005-91
Weight: 1.3

Genuine OEM Sterling electronic push-button 4-spade igniter.

• Uses AAA battery (not included)
• Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-247
Weight: 0.5

Genuine OEM Sterling electrode with 11” connector wire that has a flat/spade female end; use with AA or AAA battery powered ignitors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 10342-E12
Weight: 0.05

A redesigned four burner one piece upper and lower collector box. Replaces 22225-014 and 22225-014A that are no longer available per manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22025-903
Dimensions: 19 1/8
Material: stainless steel
Weight: .50

Genuine OEM Sterling electrode and wire for side burner.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T10
Weight: 0.3

Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

Genuine OEM Sterling Porcelain Grease Pan.
This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

Genuine OEM Sterling Gas train - rear burner

Part Number: 20805-457
Weight: 0.3

Genuine OEM Sterling caster, locking.

Part Number: 10892-25
Weight: 0.85

Genuine OEM Sterling porcelain coated warming rack.

Part Number: 22006-991
Dimensions: 32 5/8” x 8 1/2”
Material: porcelain steel
Weight: 6.0

CONTROL ASSEMBLY LP 6V

Special order part. Orders for this part may not ship for 4 to 12 weeks

Part Number: 29005-474
Weight: 1.0

Genuine OEM Sterling Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

Washer

Part Number: S21255
Weight: 0.01

Genuine OEM Sterling caster bracket

Part Number: 21039-905
Dimensions: 22 5/8” x 4 1/2”
Weight: 2.6

LID BUMPER

Part Number: Y-11231
Weight: 0.01

LOWER BASE SMALL LP 500

Part Number: 21095-445
Weight: 8.8

Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

7” Bamboo BBQ Kabobs. Appetizer Server/Grilling Skewers - pack of 50. Limited to supplies on hand.

• Ideal for searving or grilling appetizers
• Wide end for easy handling

Part Number: 11040
Dimensions: 7
Weight: 0.4

Deluxe 13” basting mop with hardwood handle and cotton mop head. Great for spreading BBQ sauces, marinades, and glazes on meat and poultry.

Part Number: 42055
Dimensions: 13
Weight: 0.2

Porcelain Coated Square Wok Topper.
12” x 12” x 2” porcelain coated grilling wok with stainless steel handles and perforations. The single draw design improves functionality and rigidity, it also makes it much easier to clean.

Part Number: 98121
Dimensions: 12” x 12”
Material: porcelain steel
Weight: 1.6

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
