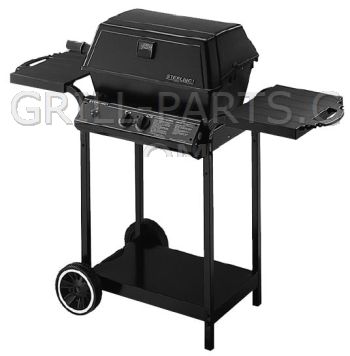

Sterling 802-4 Grill Parts

Genuine OEM Sterling stainless steel burner and venturi assembly for Sterling model 802-4.

Part Number: 10390-T301
Dimensions: 5 1/4” x 13 7/16”
Material: Stainless steel
Weight: 1.85

Genuine OEM Sterling cooking grid for Sterling model 802-4. Porcelain enameled, glossy finish. Sold individually,

Part Number: S12007
Dimension Front-to-Back: 12 1/8”
Dimension Side-to-Side: 19 1/8”
Material: porcelain steel
Weight: 3.73

Heat Plate/ Flame Tamer not known for Sterling model 802-4. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Push button igniter. For single wire for grills with no side burner. Wires not included. Comes in black or grey as available from manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-21
Weight: 0.05

Genuine OEM Sterling collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

Stainless steel wire grease cup holder for mini bucket #S15112 which has been discontinued and replaced with mini bucket # 4673-FC. This wire holder can also be used with tin cans for easy disposal of grease.

Part Number: S15111
Material: stainless steel
Weight: 0.02

Genuine OEM Sterling control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 1 5/8”
• Socket diameter: 5/16”
• Knob shaft: 1/2”

Part Number: 10472-K36
Weight: 0.05

Genuine OEM Sterling 7” cart wheel with 3/8” axel hole. Mini hub cap is # 00400251, sold separately.

Part Number: 10892-7G
Weight: .45

Wheel bolt 3.25” long; uses one hinge pin part number S21233 not included.

Part Number: 10240-13
Weight: .10

Genuine OEM Sterling warming rack.

Part Number: S12116
Weight: 3.8

Genuine OEM Sterling brass LP valve assembly. Includes:

• Left and right valves
• Center valve manifold
• Two LP Orifices

Part Number: 10440-T31
Material: brass
Weight: 1.0

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Leg end cap.

Part Number: S21346
Weight: 0.1

Washer

Part Number: S21255
Weight: 0.01

CONTROL COVER 18 5/8 BLACK

Part Number: 10194-T401
Weight: 1.0

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2
