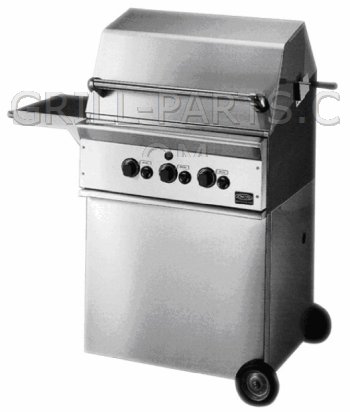

DCS DCS27-BQRS Grill Parts

304 Stainless steel 15,000 BTU infrared rotissierie burner for DCS model DCS27-BQRS. For use with both liquid propane (LP) and natural gas grills. Orifice not included. Use old orifice or purchase our orifice part# CLA-VL0251 for LP, or part# CLA-VB0246 for natural gas applications.

Dimensions:

• Maximum overall length, including mounting tab on one end: 20 7/8”
• Maximum width: 3 3/8”

Part Number: CLA-BS0250 (Replaces DCS DCS-210357)
Dimensions: 3 3/8” x 20”
Material: stainless steel and ceramic
Weight: 3.50

210358-R BURNER -27BBQ MAT PORC for DCS model DCS27-BQRS.
Cast iron replacement ”H” burner. Fits older DCS 27” Professional Series grills.

Replaces original DCS burner part# 210358.

NOTE: Also fits grills manufactured by Dynamic Cooking Systems (DCS) for other brands.

Air shutter included.


Part Number: DCS-210358-R2 (Replaces DCS DCS-210358)
Dimensions: 16” x 6 1/4”
Material: cast iron
Weight: 10.0

212425-SSHeavy duty stainless steel grill rack for DCS model DCS27-BQRS. Fits DCS27 and DCS27A Professional Series gas grills by Dynamic Cooking Systems. Sometimes referred to as GRILL RACK - 27 BBQ.

• Replaces DCS factory part# 212425.
• Large diameter 5/16” stainless steel rods.
• Commercial grade 304 stainless steel.
• Sold individally.

Part Number: DCS-212425-SS (Replaces DCS DCS-212425)
Dimension Front-to-Back: 18 1/2”
Dimension Side-to-Side: 12 3/4”
Weight: 1.0

213524-R LAVA ROCK SUPP,27BQ.
Stainless steel Lava Rock support. This is a rack/tray for holding Lava Rock (not included). Requires one per burner.

Fits DCS 27” DCS27 and DCS27A Professional Series grills by Fisher & Paykel. These grills have the smaller 16” cast iron H burners.

• Replaces original DCS part# 30709-020.
• See part# 210005-R for Lava Rock.
• Sometimes shipped with vinyl peel-off coating. Remove before use.
• Made in USA
• Sold individually.

Part Number: DCS-213524-R (Replaces DCS DCS-213524)
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 10 5/8”
Material: stainless steel
Weight: 2.2

210005-R LAVA ROCK.
Natural lava rock processed and screened for uniformity. For use with Support Rack/Radient 213524 and 213949.

NOTE: This is NOT a DCS product. The original DCS part was 4 pounds of Lava Rock. This is a 7lb bag manufactured by GrillPro.

Part Number: DCS-210005-R
Material: pumice
Weight: 7.5

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal push-button igniter. Round male connector. Includes locking nut.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-4B (Replaces DCS DCS-211551P)
Weight: 0.3

Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03199C
Weight: 0.05

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B (Replaces DCS DCS-210753)
Dimensions: 22
Weight: 0.8

Brass valve for DCS.

• For LP and natural gas grills (see below)
• Off position D-Value: 12 o'clock
• Stem diameter: 8mm
• Orifice not included

NOTE: There is a set screw in the stem that allows this valve to be used in both LP or natural gas grills. The valve is shipped with the screw set in LP position. Turn the screw counterclockwise about seven turns for natural gas use.

Part Number: 30171 (Replaces DCS DCS-210733)
Dimensions: 3 7/16” x 1 5/16”
Material: brass
Weight: 0.3

#55 orifice for infrared burners use on natural Gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VB0246
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

#59 brass orifice for rotisserie burner. Fits liquid propane (LP) gas grills. Includes brass elbow with 1/4” compression fitting.

Part Number: CLA-VL0251
Material: brass
Weight: 0.15

Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

Stainless steel chicken roaster. Commonly called Beer Can roasters.

• The best way to roast poultry on the grill
• For use in barbecues and ovens
• Dishwasher safe
• Includes rack, rack support, and basting brush

Part Number: 41333
Material: stainless steel
Weight: 0.10

Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8
