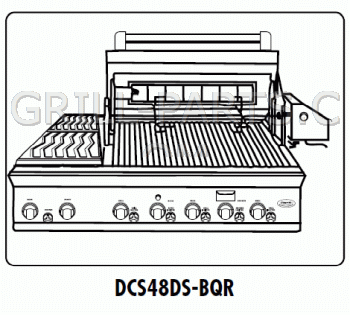

DCS DCS48DS-BQR Grill Parts

30639-1-R Smoker burner for DCS model DCS48DS-BQR.
Stainless steel replacement smoker burner.

Fits DCS BG36, BG48, BGGA36, BGA48, BGB36, and BGB48 Professional Series grills. Replaces original DCS part# 30639-1.

.

Part Number: DCS-30639-1-R1 (Replaces DCS DCS-30639-1)
Dimensions: 18” x 1”
Material: stainless steel
Weight: 1.0

32217-R SS GRILL BURNER for DCS model DCS48DS-BQR.
Premium quality stainless steel replacement tube burner.

Fits older BG27, BG36, BG48, BGA27, DCS27DS, DCS27FS, DCS36DS, DCS36E, and DCS48DS Professional Series grills by Dynamic Cooking Systems. Relaces original DCS part# 32217.

Part Number: DCS-32217-R (Replaces DCS DCS-32217)
Dimensions: 19 1/4” x 6”
Material: stainless steel
Weight: 3.9

304 Stainless steel 15,000 BTU infrared rotisserie burner for DCS model DCS48DS-BQR. For use with LP and natural gas grills. Orifice not included. Use old orifice or purchase our orifice part number CLA-VB0245 that can be drilled for natural gas or LP gas

Dimensions:

• Maximum overall length, including mounting tab on one end: 20 7/8”
• Maximum width: 3 3/8”

Part Number: CLA-BS0250 (Replaces DCS DCS-12021-2)
Dimensions: 3 3/8” x 20”
Material: stainless steel and ceramic
Weight: 3.50

304 Stainless steel 15,000 BTU infrared rotissierie burner for DCS model DCS48DS-BQR. For use with both liquid propane (LP) and natural gas grills. Includes collector box. Orifice not included. Use old orifice or purchase our orifice part number CLA-VB0245 that can be drilled for for natural gas or LP.

Dimensions:

• Maximum overall length, including mounting tab on one end: 20 7/8”
• Maximum width: 3 3/8”

Part Number: CLA-BS0358
Dimensions: 3 3/8” x 20”
Material: stainless steel and ceramic
Weight: 3.50

Cooking grid not known for DCS model DCS48DS-BQR. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the DCS cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

32218-R Radiant.
Stainless steel Radiant. Sometimes called Radiant Tray. Fits BG27, DCS27FS, DCS36DS, DCS36E and DCS48DS Professional Series grills by Dynamic Cooking Systems.

• Replaces factory part# DCS-32218
• Includes 32264 Radiant Cap/Lock & Hardware
• Premium grade 304 stainless steel
• Holds 18 ceramic rods
• Sold individually, number required varies by grill

Part Number: DCS-32218-R (Replaces DCS DCS-32218)
Dimensions: 18 5/8” x 9 7/8”
Material: stainless steel
Weight: 3.3

32326-R Radiant 36DBQ/DBQR or radiant Tray.
Stainless steel Radiant. Sometimes called Radiant Tray or Radiant 36DBQ/DBQR. Fits BG36, BG48, DCS36DS Professional Series grills by Dynamic Cooking Systems.

• Replaces factory part# 32326
• Includes 32264 Radiant Cap/Lock & Hardware
• Premium grade 304 stainless steel
• Holds 18 ceramic rods
• Sold individually, number required varies by grill

Part Number: DCS-32326-R (Replaces DCS DCS-32326)
Dimensions: 18 5/8” x 9 7/8”
Material: stainless steel
Weight: 3.3

DCS Electrode with wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-37B (Replaces DCS DCS-13012-6)
Weight: 0.2

Gas collector box assembly. Includes collector box, ceramic electrode, and wire. Fits both left and right hand side.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-33B (Replaces DCS DCS-32210-01)
Weight: .05

16190-R KIT, ROTARY IGNITER & KNOB BBQ. Single outlet rotary igniter for DCS Professional Series grills by Dynamic Cooking Systems.

• Replaces factory part# 16190
• Includes Igniter, knob, and mounting screws

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: DCS-16190-R (Replaces DCS DCS-16190)
Weight: 0.2

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B (Replaces DCS DCS-13230)
Weight: 0.8

Brass valve for DCS.

• For LP and natural gas grills (see below)
• Off position D-Value: 12 o'clock
• Stem diameter: 8mm
• Orifice not included

NOTE: There is a set screw in the stem that allows this valve to be used in both LP or natural gas grills. The valve is shipped with the screw set in LP position. Turn the screw counterclockwise about seven turns for natural gas use.

Part Number: 30171 (Replaces DCS DCS-13017)
Dimensions: 3 7/16” x 1 5/16”
Material: brass
Weight: 0.3

Orifice for infrared burners with starter hole #63 if you need to drill the hole. Includes brass elbow with 1/4” compression fitting.

NOTE: If you need the orifice pre-drilled for Natural Gas or LP Gas, during check-out, in the message box, please state that you need the orifice drilled for Natural Gas #55 or for LP Gas #59.

Part Number: CLA-VB0245
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

Cedar grilling planks adds a delicious wood-smoke flavor to foods grilled on them. Great for salmon! 11 7/8” x 5 1/4” x 5/16” 100% natural cedar. Two planks per pack.

Part Number: 00281
Dimensions: 11 7/8
Weight: .45

Meat Claws.

Shredding pork, chicken, or beef has never been easier. Spare the fork these meat shedding claws can hold with the larger outside tines and shred fine strands of meat with the smaller inside tines. Crafted of stainless steel with an easy to use grip that can be held multiple ways.
Each claw is 8.25 in. in overall length.

Part Number: 44070
Dimensions: 8 1/4
Material: stainless steel
Weight: 0.5

Set of six 22” stainless steel V skewers with wood handles and silicone bezels. Silicone bezel helps the handle stay cool longer. V-shaped skewers keep food from spinning on shaft.

Part Number: 40538
Material: chrome steel
Weight: 1.1

Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

Porcelain Coated Round Topper.
11” diameter x 2.5” deep porcelain coated wok with stainless steel handles and perforations. Rolled edge for rigidity and safety.

Part Number: 98130
Dimensions: 11
Material: porcelain steel
Weight: 1.0

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
