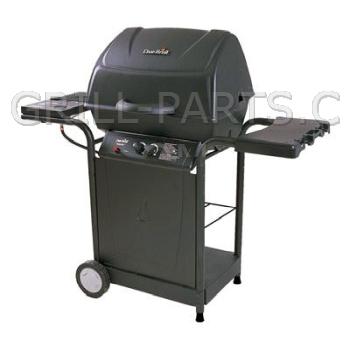

Charbroil Quickset Traditional 463731705 Grill Parts

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

ONE PANEL for Charbroil model 463731705. Genuine OEM cast iron cooking grid, single panel.

• Sold individually
• Number required varies
• Porcelain treated, flat matte finish.

Part Number: 10225-T406
Dimension Front-to-Back: 14 1/8”
Dimension Side-to-Side: 12 1/4”
Material: Cast iron
Weight: 4.75

Premium quality stainless steel cooking grid for Charbroil model 463731705. Far superior to the porcelain coated steel grids it replaces.

• Made in USA
• 304 commercial grade stainless steel
• Solid .225 diameter stainless rods
• Sold individually

Part Number: 55701-SS (Replaces Charbroil 4152739)
Dimension Front-to-Back: 14”
Dimension Side-to-Side: 24”
Material: stainless steel
Weight: 5.0

Commercial grade 304 stainless steel cooking grid with 1/4” diameter rods for Charbroil model 463731705. Made in USA.

Part Number: CG-45SS (Replaces Charbroil 4152739)
Dimension Front-to-Back: 14”
Dimension Side-to-Side: 24”
Material: Stainless steel
Weight: 6.0

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-38
Dimension Front-to-Back: 10 3/4”
Dimension Side-to-Side: 22 1/4”
Material: carbon steel
Weight: 3.5

Heat Plate/ Flame Tamer not known for Charbroil model 463731705. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

21” wire for side burner or other applications. One female spade connector, one female round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T14
Dimensions: 21
Weight: 0.05

Collector Box and electrode for Charbroil top ported TBBC & TLBBC burners.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-28B (Replaces Charbroil 4500278)
Weight: 0.2

Universal push-button piezo igniter. External grounding tab for use as ground or to power a side burner igniter.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-7B (Replaces Charbroil 5156113)
Weight: 0.3

20” igniter wire with female spade and round connector.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-7B
Weight: 0.02

20” igniter wire with two (2) female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-18B
Weight: 0.03

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Snap In Piezo Ignitor. Fits Weber Genesis Silver A,B,C and Newer Spirit E310 & E320.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-9B
Weight: 0.2

Chrome steel bottom warming rack for Charbroil 7000 series U-burner grills.

Part Number: 02124 (Replaces Charbroil 4152124)
Dimensions: 23 1/2” x 10 1/2”
Material: chrome steel wire
Weight: 1.10

Universal four piece mini thermometer set. Great gift idea.

• 2 calibrated for steak, and 2 for chicken
• Mini thermometers for testing doneness of individual cuts of meat
• Silicone bezels for easy removal when hot
• Always use caution when handling hot objects

Part Number: 11381
Weight: .25

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Maple wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00270
Weight: 1.3

15” Stainless steel tong.

• Soft comfort grip
• Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

Deluxe non-stick flat spit basket. Attaches to 3/8” rotisserie rod with adjustable lid to secure food. 16”x7.5”x2”
WARNING: Before ordering, please verify that your rotisserie spit rod can fit through the .48 inch x .48 squared mounting holes. Our spit rod part numbers SR-5, SR-8 and SR-43 do fit.

Part Number: 24785
Dimensions: 7 1/2” x 16”
Weight: 1.5

Non-Stick Aluminum Griddle. 19 in. x 10.75 in. Non-stick cast aluminum double sided griddle. One flat side for frying, and a ridge side for grilling.

Part Number: 91652
Dimensions: 19 1/2” x 10 3/4”
Material: aluminum
Weight: 3.0

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30
