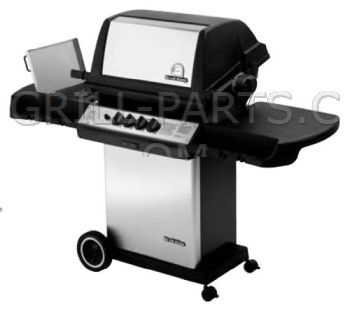

Broil King Regal XL90 960-97 Grill Parts

Genuine OEM Broil King stainless steel Infinity burner assembly for Broil King model 960-97. This burner assembly does not include the electrodes. Includes:

• One stainless steel Infinity burner
• Twin venturi with spider exclusion screens

Part Number: 10390-T501
Dimensions: 8” x 20”
Material: Stainless steel
Weight: 3.2

Cast iron cooking grids for Broil King model 960-97. SET OF THREE (3) panels.

• Porcelain treated, matte finish
• Each panel measures 16 7/8” x 8 1/4”
• Overall dimensions: 16 7/8 x 23 3/4”

Part Number: CG-74P-CI-X3
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

Genuine OEM Broil King cast iron cooking grid, SOLD INDIVIDUALLY for Broil King model 960-97.

• Sold individually.
• Number required varies.
• Porcelain enameled cast iron, flat matte finish.

Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

Cast iron cooking grid for Broil King model 960-97. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

Cast iron cooking grid for Broil King model 960-97. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

Genuine OEM Broil King stainless steel Flav-R-Wave heat plate for Broil King model 960-97. Also replaces porcelain-steel part# 10222-T424, which has been discontinued by the manufacturer.

Part Number: 10222-T425
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 23”
Material: Stainless steel
Weight: 3.0

Radiation shield.

Part Number: 10184-R80
Dimensions: 9 1/4” x 20 3/4”
Material: stainless steel
Weight: 1.72

Genuine OEM Broil King electronic push-button 3-spade igniter.

• Uses AAA battery (not included)
• .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-246
Weight: 0.6

Genuine OEM Broil King collector box and electrode assembly. Includes:

• burner mounted box with mounting screw
• ceramic electrode and 17” wire with round connector and protective sleeve
• Use with burners 10390-T401 (14102) and 10390-T501 (14212)

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 10342-T301
Weight: 0.05

NG side burner hose no longer available separately.
Now sold only as entire valve assembly. Please verify your model number per the certification tag on your gas grill.

Part Number: S13467-132
Weight: 2.8

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B
Dimensions: 22
Weight: 0.8

Genuine OEM Broil King NG gas hose.

Part Number: 10111-K45
Weight: 2.1

Genuine OEM Broil King warming rack

Part Number: 10225-T528
Dimensions: 7 3/4” x 24 3/4”
Weight: 4.5

Genuine OEM Broil King Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

Hinge pin clip.

Part Number: S21233
Weight: 0.01

Cotter pin

Part Number: Y-11230
Weight: 0.01

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0
