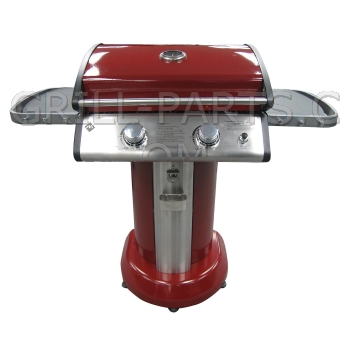

Member's Mark GR2001402-MM-00 Grill Parts

Stainless steel burner for Member's Mark model GR2001402-MM-00.

Part Number: 120L1
Dimensions: 12 1/4” x 4 5/8”
Material: stainless steel
Weight: 1.0

Stainless steel burner for Member's Mark model GR2001402-MM-00.

Part Number: 120R1
Dimensions: 12 1/4” x 4 5/8”
Material: stainless steel
Weight: 1.0

1-piece chrome plated cooking grid for Member's Mark model GR2001402-MM-00.

Part Number: CG-27
Dimension Front-to-Back: 14 1/2”
Dimension Side-to-Side: 22”
Material: Chrome steel
Weight: 3.4

Premium quality stainless steel cooking grids for Member's Mark model GR2001402-MM-00. SET OF TWO (2). Far superior to the porcelain coated steel grids it replaces.

• Made in USA
• 304 commercial grade stainless steel
• .225 diameter solid stainless rods

• Each panel measures 14 1/2” x 10 1/2”
• Overall dimensions: 14 1/2” x 21”

.

Part Number: CG-50SS-X2
Dimension Front-to-Back: 14 1/2”
Dimension Side-to-Side: 21”
Material: stainless steel
Weight: 5.6

Commercial 304 grade stainless steel cooking grid with 1/4” diameter rods for Member's Mark model GR2001402-MM-00. Sold individually. Made in USA.

Part Number: CG-53SS
Dimension Front-to-Back: 14 3/4”
Dimension Side-to-Side: 21 1/2”
Material: Stainless steel
Weight: 5

Cooking Grid Stainless Steel Prochef for Member's Mark model GR2001402-MM-00.

Part Number: CG-50SS
Dimension Front-to-Back: 14 1/2”
Dimension Side-to-Side: 10 1/2”
Material: stainless steel
Weight: 2.80

Stainless steel heat plate for Member's Mark model GR2001402-MM-00.

Part Number: SCHP6
Dimension Front-to-Back: 11 13/16”
Dimension Side-to-Side: 8 7/16”
Material: stainless steel
Weight: 1.0

Porcelain steel Heat Diffuser for Member's Mark model GR2001402-MM-00. Sold individually.

Part Number: 92021-X2
Dimension Front-to-Back: 11 13/16”
Dimension Side-to-Side: 8 7/16”
Material: porcelain steel
Weight: 2.6

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-31B
Weight: .05

Small AA battery powered push button spark generator.

• 1.5 volt
• Has two (2) terminals (male spade connector)
• Uses a single AA battery (not included)
• 03610 and 03620 wires are commonly used with this igniter (not included)
• Requires 7/8” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03342
Weight: 0.3

Burner mounted electrodes with male spade connectors. SET OF TWO (2). Includes small mounting bolts and nuts.

• Wire not included. Commonly used with wire part# 03610.
• Female spade connector on wire connects to male spade connector of electrode.
• If used with existing wire, confirm connecting end of wire is a female spade connector
• Usually, one electrode required per burner

NOTE: Electrodes provide the spark that ignites the gas when the ignitor button is depressed, or the knob is turned. They're the spark plug of the grill. ==> For more information on grill ignition systems, including how to connect electrodes to spark generators/ignitors, see article Ignition 101 in our help center.

Part Number: 04022-X2
Material: ceramic
Weight: 0.2

Oval lid heat indicator. Mounts to grill with single 1.25” long threaded temperature probe in center.

Part Number: 072-6800-0
Dimensions: 2 15/16” x 1 7/8”
Material: stainless steel
Weight: 0.2

Stainless steel smoker box with cover. For use with all grills. Insert moistened wood chips (not included) for your favorite smoke flavor, 8 3/4” x 3 1/2” x 1 1/2”.


Part Number: SSST
Material: stainless steel
Weight: 1.5

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
