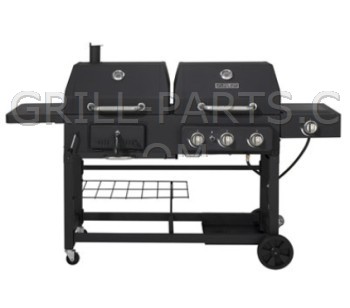

Master Forge MFJ810CSB Grill Parts

403-07001-10-R-X3 Main Burner for Master Forge model MFJ810CSB. Set of three (3). Stainless steel. Fits Master Forge MFJ810CSB series grills. May fit other models.

This part replaces original Master Forge burner # 403-07001-10.

Part Number: MF1-403-07001-10-R-X3 (Replaces Master Forge MF-403-07001-10-X3)
Dimensions: 17 11/16” x 1”
Material: stainless steel
Weight: 0.6

403-07001-10-R Main Burner for Master Forge model MFJ810CSB. Stainless steel. Fits Master Forge MJ810CSB series grills. May fit other models.

This part replaces original Master Forge burner # 403-07001-10.

Part Number: MF1-403-07001-10-R (Replaces Master Forge MF-403-07001-10)
Dimensions: 17 11/16” x 1”
Material: stainless steel
Weight: 0.6

403-07005-01-R Cooking Grate for Master Forge model MFJ810CSB. Porcelain enameled glossy finish cast iron grates. SET OF TWO (2)

Fits Master Forge MFJ810 series grills. May fit other models.

This grate replaces original Master Forge part 403-07005-01.

Part Number: MF1-403-07005-01-R (Replaces Master Forge MF-403-07005-01)
Dimension Front-to-Back: 17 3/4”
Dimension Side-to-Side: 22 1/8”
Material: gloss cast iron
Weight: 8.8

Heat Plate/ Flame Tamer not known for Master Forge model MFJ810CSB. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG4010
Weight: 0.2

Battery powered push button igniter.

• Has four (4) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB4-B
Weight: 0.3

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Burner-mounted ceramic igniter electrode with mounting bracket and hardware.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-20B
Weight: 0.05

Stainless steel grease pan with mini grease cup & holder. Made in USA. NOTE: Sometimes shipped with protective vinyl peel-off coating. Remove before use.

Part Number: CLA-DS0328 (Replaces Master Forge MF-403-04000-02)
Dimensions: 9 1/2” x 20 1/2”
Material: stainless steel
Weight: 2.15

Universal premium quality stainless steel warming rack. You simply can't buy a better quality warming rack than this, which weighs in at almost 5lbs of solid 304 grade stainless steel. This super heavy-duty warming rack was made to replace the porcelain coated steel racks found on BBQ grills made by The Great Outdoors Grill Company, but can be used in many other different grills.

• Far superior to the original porcelain coated steel rack
• Rests on your existing cooking grids.
• Solid 1/4” 304 stainless steel rods.
• Stands 3.75 inches tall.
• Made in USA.

WARNING: Before ordering this universal rack, please verify your grill has enough space to accommodate it. If you need to return, you will be responsible for return shipping, and the original out bound shipping fee will be deducted from the refund. What's required?

• Your grill needs to be at least 24” wide on the inside . The warming rack is 6.25” front to back and stands 3.75” tall.
• Notice the shape of the warming rack. Determine if the lid of your grill can easily close with the warming rack inside along with food placed on top of the rack.

  Part Number: CLA-WS0040
  Dimensions: 6 1/4” x 22 7/8”
  Material: stainless steel
  Weight: 4.8

Round heat indicator.

• Single probe
• 3” diameter
• Requires 3/8” mounting hole

Part Number: 00016
Dimensions: 3” x 3”
Weight: 0.2
