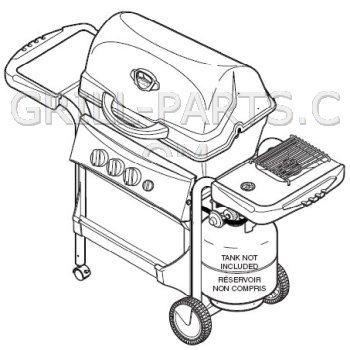

Fiesta Dynasty XT40077 Grill Parts

Stainless steel burner and venturi assembly kit for Fiesta model XT40077. Comes with all necessary gaskets and screws.

Part Number: 19202-79402 (Replaces Fiesta SM207A-12)
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 3.5

Stainless steel H burner for Fiesta model XT40077. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19202
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 2.4

L-shaped venturi pair. Includes all necessary gaskets and screws/nuts.

Part Number: 79402
Dimensions: 5 1/2” x 3 1/8”
Material: zinc plated steel
Weight: 0.9

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

Porcelain steel cooking grids for Fiesta model XT40077. Porcelain enameled, glossy finish. Sold as a set of two (2).

Part Number: 54302
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 26”
Material: porcelain steel wire
Weight: 5.0

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-2 (Replaces Fiesta SP109-3)
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 22 3/4”
Material: carbon steel
Weight: 3.9

Heat Plate/ Flame Tamer not known for Fiesta model XT40077. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

KNOB VALVE LARGE

Part Number: SP11-7
Weight: 0.1

Side burner knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 5/16”
• Knob shaft: 1/8”

Part Number: SP9-7
Weight: 0.1

Small locking caster with a slide-on mounting stud that is 5/16” in diameter. The caster wheel diameter is 1 1/2”.

Part Number: SP6-22
Weight: .10

LOGO GUAGE FIESTA A/T LID

Part Number: SP23A-30
Weight: 0.5

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

GrillPro Texas hickory BBQ wood chips. 800g. For use in all BBQ Grill and smoker applications.

Part Number: 00220
Weight: 2.0

15” Stainless steel tong.

• Soft comfort grip
• Locking mechanism

Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

Marinade Injector.

For injecting flavor and marinades into meat. Great for use with chicken, beef, pork, lamb etc. Disassembles for cleaning. Stainless steel injector tip. Graduated injection chamber. Easy to use and clean.

Part Number: 14950
Material: stailess steel
Weight: 0.5

Porcelain Coated Grill Topper.
11” x 16” Single draw construction for improved rigidity. Stainless steel handles and raised contours for improved functionality.

Part Number: 97122
Dimensions: 16” x 11 1/2”
Material: porcelain steel
Weight: 1.10

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3
