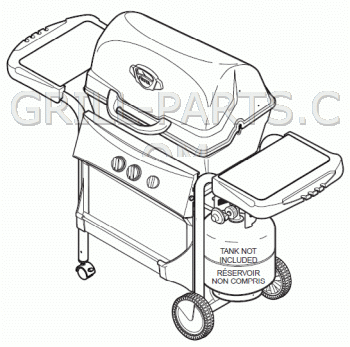

Fiesta Dynasty XT40046 Grill Parts

Stainless steel burner and venturi assembly kit for Fiesta model XT40046. Comes with all necessary gaskets and screws.

Part Number: 19202-79402 (Replaces Fiesta SM207-12)
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 3.5

Stainless steel H burner for Fiesta model XT40046. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19202
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 2.4

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

L-shaped venturi pair. Includes all necessary gaskets and screws/nuts.

Part Number: 79402
Dimensions: 5 1/2” x 3 1/8”
Material: zinc plated steel
Weight: 0.9

Porcelain steel cooking grids for Fiesta model XT40046. Porcelain enameled, glossy finish. Sold as a set of two (2).

Part Number: 54302 (Replaces Fiesta SP121-3)
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 26”
Material: porcelain steel wire
Weight: 5.0

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-2
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 22 3/4”
Material: carbon steel
Weight: 3.9

Stainless steel version replacement for original Smart Bar SP25-9G for Fiesta model XT40046. NOTE: The original part was porcelain coated steel. Far superior to the original, this aftermarket part is made of corrosion-resistant stainless steel for longer life.

Part Number: SP25-9G-SS
Dimension Front-to-Back: 10 1/2”
Dimension Side-to-Side: 23 3/4”
Material: stainless steel
Weight: 3.0

SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Fiesta model XT40046. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0234-X3
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 5 1/8”
Material: stainless steel
Weight: 3.0

Universal extention wire, male spade end & female round end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

Electrode kit.

• Mounting bracket
• Electrode with ceramic insulator
• Wire with round connector
• Protective sleeve

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04300
Material: ceramic
Weight: 0.1

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

Genuine OEM Fiesta rotary 2-outlet spark generator; includes knob, not shown in photo.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: SP14A-20
Weight: 0.08

KNOB VALVE LARGE

Part Number: SP11-7
Weight: 0.1

Small locking caster with a slide-on mounting stud that is 5/16” in diameter. The caster wheel diameter is 1 1/2”.

Part Number: SP6-22
Weight: .10

SWING RACK 400 WIRE PORC 145 9

Part Number: SP106-3
Material: porcelain steel
Weight: 1.0

VHR ASSEMBLY 40046

Part Number: SP182A-4
Weight: 1.0

SMART ROD 345/400/450

Part Number: SM68-6
Dimensions: 12
Weight: 0.3

Durable 2 5/16” round briquettes

• Self-cleaning
• Control flare-ups while holding an even heat pattern.
• About 53 pieces, covers approximately 275 sq. inches.
• Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4
