Fiesta XT40062 Grill Parts

Fiesta logo

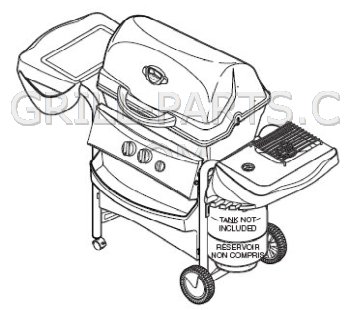

Fiesta XT40062



Highest quality replacement parts for your Fiesta XT40062 - Free USA shipping $49 or more* - No Sales Tax*



Fiesta XT40062 owners manual and diagrams
Diagrams & owners manual not available for grill model# XT40062. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts for Fiesta model: XT40062
This page shows all of the parts we know fit model Fiesta XT40062. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Fiesta grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Fiesta XT40062 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Fiesta model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



XT40062 Burners

SM207A-12 / 19202-79402
Click for photos
Stainless steel burner and venturi assembly kit for Fiesta model XT40062. Comes with all necessary gaskets and screws.

Part Number: 19202-79402 (Replaces Fiesta SM207A-12)
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 3.5

$71.75

Qty


19202
Click for photos
Stainless steel H burner for Fiesta model XT40062. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19202
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 2.4

$65.76

Qty


==> All Fiesta Burners.






XT40062 Venturis

SG-B
Click for photos
Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

$7.25

Qty


79402
Click for photos
L-shaped venturi pair. Includes all necessary gaskets and screws/nuts.

Part Number: 79402
Dimensions: 5 1/2” x 3 1/8”
Material: zinc plated steel
Weight: 0.9

$20.78

Qty


==> All Fiesta Venturis.






XT40062 Cooking Grids

SP144-3 / 54302
Click for photos
Porcelain steel cooking grids for Fiesta model XT40062. Porcelain enameled, glossy finish. Sold as a set of two (2).

Part Number: 54302 (Replaces Fiesta SP144-3)
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 26”
Material: porcelain steel wire
Weight: 5.0

$72.98

Qty


==> All Fiesta Cooking Grids.






XT40062 Rock/Briquette Grates

BG-2
Click for photos
Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-2
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 22 3/4”
Material: carbon steel
Weight: 3.9

$28.14

Qty


==> All Fiesta Rock/Briquette Grates.






XT40062 Heat Plates

SP56-9-SS
Click for photos
Stainless steel version of SP56-9 Smart Bar for Fiesta model XT40062.
NOTE: The original part was porcelain coated steel. Far superior to the original, this aftermarket part is made of corrosion-resistant stainless steel for longer life.

Part Number: SP56-9-SS
Dimension Front-to-Back: 10 1/2”
Dimension Side-to-Side: 23 3/4”
Material: stainless steel
Weight: 3.0

$74.78

Qty


==> All Fiesta Heat Plates.






XT40062 Igniter Components

IG-46B
Click for photos
Universal extention wire, male spade end & female round end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.37

Qty


04300
Click for photos
Electrode kit.
  • Mounting bracket
  • Electrode with ceramic insulator
  • Wire with round connector
  • Protective sleeve

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04300
Material: ceramic
Weight: 0.1

$8.81

Qty


IG-15B
Click for photos
Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-15B
Weight: 0.3

$13.71

Qty


==> All Fiesta Igniter Components.






XT40062 Knobs and Handles

KNOB VALVE LARGE

Part Number: SP11-7
Weight: 0.1

$5.15

Qty


SP9-7
Click for photos
Side burner knob.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2 3/16”
  • Socket diameter: 5/16”
  • Knob shaft: 1/8”


Part Number: SP9-7
Weight: 0.1

$5.15

Qty


==> All Fiesta Knobs and Handles.






XT40062 Wheels and Castors

Small locking caster with a slide-on mounting stud that is 5/16” in diameter. The caster wheel diameter is 1 1/2”.

Part Number: SP6-22
Weight: .10

$5.02

Qty


==> All Fiesta Wheels and Castors.






XT40062 Valves, Orifices, and Manifolds

VHR ASSEMBLY 40062

Part Number: SP151A-4
Weight: 1.0

$67.01

Qty


==> All Fiesta Valves, Orifices, and Manifolds.






XT40062 Heat indicators and Meat Thermometers

SP23A-30
Click for photos
LOGO GUAGE FIESTA A/T LID

Part Number: SP23A-30
Weight: 0.5

$5.08

Qty


==> All Fiesta Heat indicators and Meat Thermometers.






XT40062 Accessories

BQ-5
Click for photos
Durable 2 5/16” round briquettes
  • Self-cleaning
  • Control flare-ups while holding an even heat pattern.
  • About 53 pieces, covers approximately 275 sq. inches.
  • Fits all gas grills


Part Number: BQ-5
Weight: 7.2

$31.19

Qty


45887
Click for photos
Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

$24.48

Qty


00030
Click for photos
EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

$7.60

Qty


WB-8
Stainless steel straight handle grill brush with replaceable head. Brass bristles and scarper. See part# WB-8RH for replacement grill brush heads. 18 1/2” long.
This part is currently out of stock, but more are already on the way and expected to arrive SPRING 23

Part Number: WB-8
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.8

$18.95

Qty


==> All XT40062 Accessories.
