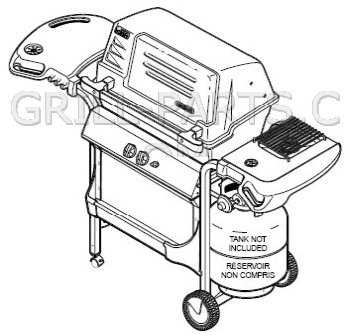

Fiesta Fiesta Classic Series LP gas BBQ grill with side burner EH34552 Grill Parts

Stainless steel burner and venturi assembly kit for Fiesta model EH34552. Comes with all necessary gaskets and screws.

Part Number: 19202-79202 (Replaces Fiesta SM30A-12)
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 3.5

Stainless steel H burner for Fiesta model EH34552. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19202
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 2.4

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

L-shaped twin venturi. Includes all necessary gaskets and screws/nuts.

Part Number: 79202
Dimensions: 4 1/2” x 2 7/8”
Material: zinc plated steel
Weight: 0.8

Cooking grid not known for Fiesta model EH34552. Our parts information for this grill model is incomplete, and we really don't know with certainty which cooking grid fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the Fiesta cooking grids we carry. If we don't have the exact fit grid for your grill, we may have a suitable replacement part. Measure your existing part as well as the the grid support area of the grill so you'll know exactly what size grids will fit.

If you have this grill model and know the number and dimensions of your original cooking grids, please share this information with us. Click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: CG-DUMMY
Weight: 1.0

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-2
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 22 3/4”
Material: carbon steel
Weight: 3.9

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-41
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 19”
Material: carbon steel
Weight: 4.1

Heat Plate/ Flame Tamer not known for Fiesta model EH34552. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-15B
Weight: 0.3

ELECTRODE CLIP-ON

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: SP9A-20
Weight: 0.4

Electrode kit.

• Mounting bracket
• Electrode with ceramic insulator
• Wire with round connector
• Protective sleeve

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 04300
Material: ceramic
Weight: 0.1

Genuine OEM Fiesta control knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2”
• Socket diameter: 5/16”
• Knob shaft: None (flat)

Part Number: SP7-7
Weight: 0.1

Side burner knob.

• Off position D-Value: 6 o'clock
• Knob diameter: 2 3/16”
• Socket diameter: 5/16”
• Knob shaft: 1/8”

Part Number: SP9-7
Weight: 0.1

Durable 2 5/16” round briquettes

• Self-cleaning
• Control flare-ups while holding an even heat pattern.
• About 53 pieces, covers approximately 275 sq. inches.
• Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0
