Fiesta XD40077 Grill Parts

Fiesta logo



Fiesta XD40077

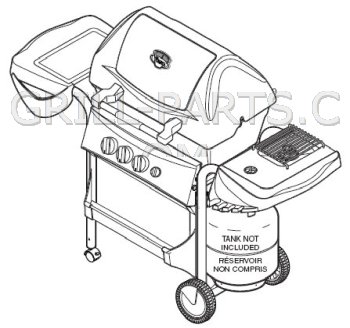

Fiesta dual-burner LP gas grill with side and rotisserie burners



Highest quality replacement parts for your Fiesta XD40077 - Free USA shipping $49 or more* - No Sales Tax*



Fiesta XD40077 owners manual and diagrams
Diagrams & owners manual not available for grill model# XD40077. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement grill parts to fit Fiesta model: XD40077
This page shows all of the parts we know fit model Fiesta XD40077. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Fiesta grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Fiesta XD40077 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Fiesta model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



XD40077 Burners

SM207A-12 / 19202-79402
Click for photos
Stainless steel burner and venturi assembly kit for Fiesta model XD40077. Comes with all necessary gaskets and screws.

Part Number: 19202-79402 (Replaces Fiesta SM207A-12)
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 3.5

$101.35


19202
Click for photos
Stainless steel H burner for Fiesta model XD40077. Burner consists of two pieces, which are held together by the venturi.

Part Number: 19202
Dimensions: 22” x 7 7/8”
Material: stainless steel
Weight: 2.4

$85.35


==> All Fiesta Burners.






XD40077 Venturis

79402
Click for photos
L-shaped venturi pair. Includes all necessary gaskets and screws/nuts.

Part Number: 79402
Dimensions: 5 1/2” x 3 1/8”
Material: zinc plated steel
Weight: 0.9

$24.00


SG-B
Click for photos
Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

$7.65


==> All Fiesta Venturis.






XD40077 Cooking Grids

SP144-3 / 54302
Click for photos
Porcelain steel cooking grids for Fiesta model XD40077. Porcelain enameled, glossy finish. Sold as a set of two (2).

Part Number: 54302 (Replaces Fiesta SP144-3)
Dimension Front-to-Back: 14 1/4”
Dimension Side-to-Side: 26”
Material: porcelain steel wire
Weight: 5.0

$84.54


==> All Fiesta Cooking Grids.






XD40077 Rock/Briquette Grates

BG-2
Click for photos
Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-2
Dimension Front-to-Back: 12”
Dimension Side-to-Side: 22 3/4”
Material: carbon steel
Weight: 3.9

$31.08


==> All Fiesta Rock/Briquette Grates.






XD40077 Heat Plates

SP56-9-SS
Click for photos
Stainless steel version of SP56-9 Smart Bar for Fiesta model XD40077.
NOTE: The original part was porcelain coated steel. Far superior to the original, this aftermarket part is made of corrosion-resistant stainless steel for longer life.

Part Number: SP56-9-SS
Dimension Front-to-Back: 10 1/2”
Dimension Side-to-Side: 23 3/4”
Material: stainless steel
Weight: 3.0

$74.78


==> All Fiesta Heat Plates.






XD40077 Igniter Components

IG-46B
Click for photos
Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

$4.30


IG-15B
Click for photos
Universal collector box with electrode and wire. Fits most H burners, cast iron and stainless. Mounts to burner using venturi screws. Slotted construction allow universal adjustment of electrode position.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-15B
Weight: 0.3

$14.41


==> All Fiesta Igniter Components.






XD40077 Knobs and Handles

KNOB VALVE LARGE

Part Number: SP11-7
Weight: 0.1

$5.15


SP9-7
Click for photos
Side burner knob.
  • Off position D-Value: 6 o'clock
  • Knob diameter: 2 3/16”
  • Socket diameter: 5/16”
  • Knob shaft: 1/8”


Part Number: SP9-7
Weight: 0.1

$5.15


==> All Fiesta Knobs and Handles.






XD40077 Wheels and Castors

Small locking caster with a slide-on mounting stud that is 5/16” in diameter. The caster wheel diameter is 1 1/2”.

Part Number: SP6-22
Weight: .10

$5.02


==> All Fiesta Wheels and Castors.






XD40077 Accessories

45887
Click for photos
Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

$24.95


BP-7
Click for photos
Wundersmoke Maple Chips. These unique maple wood smoking chips add distinctive maple wood flavoring to your food. For use will all grills. One 1lb bag. Comes with reusable puck.

Part Number: BP-7
Weight: 1.0

$10.42


SF-1
Click for photos
Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

$15.90


40538
Click for photos
Set of six 22” stainless steel V skewers with wood handles and silicone bezels. Silicone bezel helps the handle stay cool longer. V-shaped skewers keep food from spinning on shaft.

Part Number: 40538
Material: chrome steel
Weight: 1.1

$15.59


BB-5
Click for photos
Basting brush with angled oak handle. 18” overall length.

Part Number: BB-5
Dimensions: 18
Weight: 0.8

$9.36


98130
Click for photos
Porcelain Coated Round Topper.
11” diameter x 2.5” deep porcelain coated wok with stainless steel handles and perforations. Rolled edge for rigidity and safety.

Part Number: 98130
Dimensions: 11
Material: porcelain steel
Weight: 1.0

$19.15


24795
Click for photos

Stuffed Burger Press

The stuffed burger press is the best way to make gourmet stuffed and regular burger patties right at home. Easy to disassemble and clean.



Part Number: 24795
Weight: .3

$13.25


==> All XD40077 Accessories.
