Charbroil Performance 463366506 Grill Parts

Charbroil logo



Charbroil 463366506

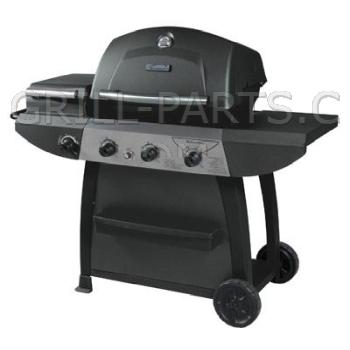

Kenmore 3-Burner LP gas grill



Highest quality replacement parts for your Charbroil Performance 463366506 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463366506 owners manual and diagrams
Diagrams & owners manual not available for grill model# 463366506. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!




Replacement gas grill parts for Charbroil Performance 463366506
All of the parts we have for Charbroil 463366506 are shown on this page. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463366506 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463366506 Burners

7000083 / CBP1
Click for photos
Stainless steel burner for Charbroil Performance and Advantage series grills for Charbroil model 463366506. Interchangable with the cast iron version.

Part Number: CBP1 (Replaces Charbroil 7000083)
Dimensions: 13 3/4” x 3 1/4”
Material: stainless steel
Weight: 2.0

$47.74


7001802 / CBP1-CI
Click for photos
Cast iron burner for Charbroil Performance and Advantage series grills for Charbroil model 463366506. Interchangable with the stainless steel version.

Part Number: CBP1-CI (Replaces Charbroil 7001802)
Dimensions: 13 3/4” x 3 3/8”
Material: cast iron
Weight: 6.0

$43.10


==> All Charbroil Burners.






463366506 Burner Brackets and Carryovers

7000278 / CLA-MS0045
Click for photos
Heavy 20 gauge stainless steel burner mounting bracket. Also called a cross over channel. Made in USA. Replaces Charbroil OEM part# 7000278. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-MS0045 (Replaces Charbroil 7000278)
Dimensions: 17 5/16
Material: stainless steel
Weight: 0.2

$23.38


==> All Charbroil Burner Brackets and Carryovers.






463366506 Cooking Grids

7000025 / CG-62P-CI
Click for photos
Cast iron cooking grid for Charbroil model 463366506. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-62P-CI (Replaces Charbroil 7000025)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 7 7/8”
Material: cast iron
Weight: 4.75

$39.89


CG-61P-CI
Click for photos
Cast iron cooking grid for Charbroil model 463366506. Porcelain treated, matte finish. Sold individually, number required varies by grill model

Part Number: CG-61P-CI
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12”
Material: cast iron
Weight: 6.45

$59.87


CG-61P-CI-X2
Click for photos
Cast iron cooking grids for Charbroil model 463366506. SET OF TWO (2) panels.
  • Porcelain treated, matte finish
  • Each panel measures 15” x12”
  • Overall dimensions: 15” x24”


Part Number: CG-61P-CI-X2
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 24”
Material: cast iron
Weight: 12.9

$105.78


==> All Charbroil Cooking Grids.






463366506 Heat Plates

7000045 / CBHP1
Click for photos
Stainless steel VapoRiser Tent for Charbroil model 463366506. Fully functional replacement without the louvered slots.

Part Number: CBHP1 (Replaces Charbroil 7000045)
Dimension Front-to-Back: 11 3/4”
Dimension Side-to-Side: 5 5/8”
Material: stainless steel
Weight: 0.7

$24.42


CLA-TS0144-X3
Click for photos
SET OF THREE/3 PACK Stainless steel heat plate for Charbroil model 463366506. Made in USA.

Note: Not identical to original, but a fully functional replacement.

Note: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0144-X3
Dimension Front-to-Back: 11 3/4”
Dimension Side-to-Side: 5 9/16”
Material: stainless steel
Weight: 1.8

$66.39


==> All Charbroil Heat Plates.






463366506 Igniter Components

IG-24B
Click for photos
Ceramic electrode for use with CBP1-CI cast iron burner.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-24B
Weight: 0.3

$8.32


==> All Charbroil Igniter Components.






463366506 Heat indicators and Meat Thermometers

G431-0020-W1 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil G431-0020-W1)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$18.21


11381
Click for photos
Universal four piece mini thermometer set. Great gift idea.
  • 2 calibrated for steak, and 2 for chicken
  • Mini thermometers for testing doneness of individual cuts of meat
  • Silicone bezels for easy removal when hot
  • Always use caution when handling hot objects


Part Number: 11381
Weight: .25

$16.45


==> All Charbroil Heat indicators and Meat Thermometers.






463366506 Accessories

00230
Click for photos
Apple wood chips.
  • All natural wood smoke flavor
  • Great for use in BBQ's or smokers.
  • 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00230
Weight: 2.0

$8.47


40269
Click for photos
20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.

Part Number: 40269
Material: stainless steel
Weight: 0.14

$21.26


40538
Click for photos
Set of six 22” stainless steel V skewers with wood handles and silicone bezels. Silicone bezel helps the handle stay cool longer. V-shaped skewers keep food from spinning on shaft.

Part Number: 40538
Material: chrome steel
Weight: 1.1

$15.59


41616
Click for photos
Rib & Roast Rack.

Reversible rib rack and roast support. Made of stainless steel with a frame that holds 6 racks of ribs and a roast support for large cuts of meat.



Part Number: 41616
Material: stainless steel
Weight: 0.5

$24.00


24795
Click for photos

Stuffed Burger Press

The stuffed burger press is the best way to make gourmet stuffed and regular burger patties right at home. Easy to disassemble and clean.



Part Number: 24795
Weight: .3

$13.25


==> All 463366506 Accessories.
