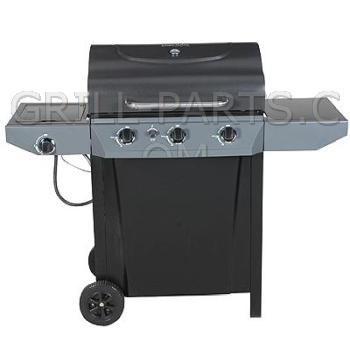

Char-Broil LP gas outdoor BBQ grill with side burner



Highest quality replacement parts for your Charbroil 463470109 - Free USA shipping $49 or more* - No Sales Tax*



Charbroil 463470109 owners manual and diagrams
Click the small images on the right to view Charbroil 463470109 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Charbroil 463470109-463562989030-PartsExpS1.jpg

Replacement grill parts to fit Charbroil model: 463470109
On this page you'll find all of the parts that fit model Charbroil 463470109. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a cooking grid and there are none here, click the cooking grids button to see all of the cooking grids we have for Charbroil grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Charbroil 463470109 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



463470109 Burners

80009947 / CBP6
Click for photos
Stainless steel burner for Charbroil model 463470109.

Part Number: CBP6 (Replaces Charbroil 80009947)
Dimensions: 14 3/8” x 1”
Material: stainless steel
Weight: 1.0

$38.24


==> All Charbroil Burners.






463470109 Burner Brackets and Carryovers

80011637 / CBCO1
Click for photos
Stainless steel cross over tube. Channels gas between burners.

Part Number: CBCO1 (Replaces Charbroil 80011637)
Dimensions: 7
Material: stainless steel
Weight: 0.05

$15.90


==> All Charbroil Burner Brackets and Carryovers.






463470109 Cooking Grids

504S3-1PC
Click for photos
Commerical grade 304 stainless steel cooking grid with 1/4” diameter rods for Charbroil model 463470109.

Part Number: 504S3-1PC
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 7/8”
Material: stainless steel wire
Weight: 4.0

$72.28


66124-1PC
Click for photos
Cast iron cooking grid for Charbroil model 463470109. Porcelain treated, matte finish. Sold individually, number required varies.

Part Number: 66124-1PC
Dimension Front-to-Back: 16 15/16”
Dimension Side-to-Side: 8 5/16”
Material: cast iron
Weight: 3.75

$37.52


CG-74P-CI
Click for photos
Cast iron cooking grid for Charbroil model 463470109. Porcelain treated, matte finish. FIts Kenmore And Other Import Grills. Sold individually, number required varies.

Part Number: CG-74P-CI
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 8 1/4”
Material: cast iron
Weight: 8.90

$43.61


10225-T536
Click for photos
cast iron cooking grid, SOLD INDIVIDUALLY for Charbroil model 463470109.
  • Sold individually.
  • Number required varies.
  • Porcelain enameled cast iron, flat matte finish.


Part Number: 10225-T536
Dimension Front-to-Back: 17”
Dimension Side-to-Side: 8 1/4”
Material: Cast iron
Weight: 7.6

$56.52


80012098 / CG-74P-CI-X3
Click for photos
Cast iron cooking grids for Charbroil model 463470109. SET OF THREE (3) panels.
  • Porcelain treated, matte finish
  • Each panel measures 16 7/8” x 8 1/4”
  • Overall dimensions: 16 7/8 x 23 3/4”


Part Number: CG-74P-CI-X3 (Replaces Charbroil 80012098)
Dimension Front-to-Back: 16 7/8”
Dimension Side-to-Side: 24 3/4”
Material: cast iron
Weight: 26.7

$113.25


==> All Charbroil Cooking Grids.






463470109 Heat Plates

80008530 / CBHP6
Click for photos
Stainless steel vented heat plate/Flame Tamer for Charbroil model 463470109.

Part Number: CBHP6 (Replaces Charbroil 80008530)
Dimension Front-to-Back: 14 5/8”
Dimension Side-to-Side: 4 1/4”
Material: stainless steel
Weight: 0.7

$23.47


==> All Charbroil Heat Plates.






463470109 Igniter Components

TS-IG2006
Click for photos
Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG2006
Weight: 0.2

$19.40


IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$8.29


80000030 / IGEIB2-B
Click for photos
Battery powered push button igniter.
  • Has two (2) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB2-B (Replaces Charbroil 80000030)
Weight: 0.3

$34.11


80009029 / 04430
Click for photos
Burner mounted electrode for use with 15591 and 15491 burners.
  • 39” wire with female spade connector
  • Includes adapter wire part 03198 for applications needing male spade connector on electrode.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 04430 (Replaces Charbroil 80009029)
Material: ceramic
Weight: 0.1

$12.47


IG-19B
Click for photos
Burner-mounted ceramic electrode, wire, and mounting bracket.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-19B
Weight: 0.1

$12.93


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.35


==> All Charbroil Igniter Components.






463470109 Heat indicators and Meat Thermometers

4157171 / 00018
Click for photos
Round heat indicator.
  • Single probe
  • 1 13/16” diameter
  • Requires 3/8” mounting hole


Part Number: 00018 (Replaces Charbroil 4157171)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

$18.21


11381
Click for photos
Universal four piece mini thermometer set. Great gift idea.
  • 2 calibrated for steak, and 2 for chicken
  • Mini thermometers for testing doneness of individual cuts of meat
  • Silicone bezels for easy removal when hot
  • Always use caution when handling hot objects


Part Number: 11381
Weight: .25

$16.45


==> All Charbroil Heat indicators and Meat Thermometers.






463470109 Accessories

00220
Click for photos
GrillPro Texas hickory BBQ wood chips. 800g. For use in all BBQ Grill and smoker applications.

Part Number: 00220
Weight: 2.0

$6.87


40259
Click for photos
15” Stainless steel tong.
  • Soft comfort grip
  • Locking mechanism


Part Number: 40259
Dimensions: 15
Material: stainless steel
Weight: 0.14

$9.92


76745
Click for photos

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.



Part Number: 76745
Material: stainless
Weight: .2

$7.74


41616
Click for photos
Rib & Roast Rack.

Reversible rib rack and roast support. Made of stainless steel with a frame that holds 6 racks of ribs and a roast support for large cuts of meat.



Part Number: 41616
Material: stainless steel
Weight: 0.5

$24.00


WB-3
Click for photos
18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59

$13.66


==> All 463470109 Accessories.
