Kenmore 119.162310 Grill Parts

Kenmore logo



Kenmore 119.162310

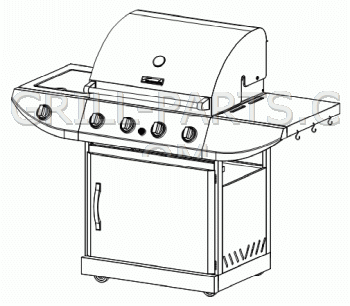

Kenmore 4-Burner LP Gas Grill



Highest quality replacement parts for your Kenmore 119.162310 - Free USA shipping $49 or more* - No Sales Tax*



Kenmore 119.162310 owners manual and diagrams
Click the small images on the right to view Kenmore 119.162310 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



Kenmore 119.162310-38800834589839-PartsExpS1.gif  Kenmore 119.162310-38800834589839-PartsLstS1.gif  Kenmore 119.162310-38800834589839-PartsLstS2.gif

Replacement grill parts for Kenmore model: 119.162310
This page shows all of the parts we know fit model Kenmore 119.162310. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Kenmore grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Kenmore 119.162310 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your Kenmore model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



119.162310 Burners

SD0012-1 / SCTB1
Click for photos
Stainless steel burner for Kenmore model 119.162310.

Part Number: SCTB1 (Replaces Kenmore SD0012-1)
Dimensions: 15 3/8
Material: stainless steel
Weight: 0.43

$39.38

Qty


==> All Kenmore Burners.






119.162310 Cooking Grids

59501
Click for photos
Porcelain steel cooking grid for Kenmore model 119.162310. Porcelain enameled, glossy finish. Sold individually.

Part Number: 59501
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 6 1/16”
Material: porcelain steel wire
Weight: 2.6

$38.84

Qty


CG-71P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.162310. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-71P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 7 5/8”
Material: cast iron
Weight: 5.55

$33.23

Qty


CG-72P-CI
Click for photos
Cast iron cooking grid for Kenmore model 119.162310. Porcelain treated, matte finish. Sold individually, number required varies by grill model.

Part Number: CG-72P-CI
Dimension Front-to-Back: 18 3/4”
Dimension Side-to-Side: 9 1/2”
Material: cast iron
Weight: 6.45

$51.52

Qty


56S43
Click for photos
Stainless steel cooking grid for Kenmore model 119.162310. Like the originals these replace, these grids are made of hollow stainless tubes.

Part Number: 56S43
Dimension Front-to-Back: 18 5/8”
Dimension Side-to-Side: 26 1/2”
Material: stainless steel tubes
Weight: 8.0

$130.14

Qty


==> All Kenmore Cooking Grids.






119.162310 Heat Plates

SA0376 / BBQHP1
Click for photos
Stainless steel heat plate for Kenmore model 119.162310.


Part Number: BBQHP1 (Replaces Kenmore SA0376)
Dimension Front-to-Back: 16 1/8”
Dimension Side-to-Side: 3 1/2”
Material: stainless steel
Weight: 0.7

$30.60
SALE  $16.99
Qty


==> All Kenmore Heat Plates.






119.162310 Igniter Components

IG-30B
Click for photos
46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-30B
Dimensions: 46
Weight: 0.1

$7.10

Qty


IG-48B
Click for photos
16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-48B
Dimensions: 16
Weight: 0.05

$6.00

Qty


SE9009 / IG-31B
Click for photos
Electrode to Fit Many Import Grills Including some Kenmore, BBQ Pro, Sam's Club, K-Mart, Etc….

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IG-31B (Replaces Kenmore SE9009)
Weight: .05

$7.10

Qty


SE0010 / IGEIB4-B
Click for photos
Battery powered push button igniter.
  • Has four (4) spade type male connectors.
  • Uses 1 AAA battery (not supplied)
  • Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB4-B (Replaces Kenmore SE0010)
Weight: 0.3

$31.52

Qty


SE0078 / IGEIB6-B
Click for photos
Battery powered push button igniter.
  • Has six (6) spade type male connectors.
  • Uses 1 AA battery (not supplied)
  • Requires 7/8” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: IGEIB6-B (Replaces Kenmore SE0078)
Weight: 0.3

$31.52

Qty


TS-IG4010
Click for photos
Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: TS-IG4010
Weight: 0.2

$18.49

Qty


==> All Kenmore Igniter Components.






119.162310 Heat indicators and Meat Thermometers

SE0076 / 00012
Click for photos
Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.
  • Requires minimum 3/8” mounting hole
  • Single 1 3/8” probe
  • Threaded portion of probe stops at 1/2” from base
  • See photo for details


Part Number: 00012 (Replaces Kenmore SE0076)
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

$15.16

Qty


==> All Kenmore Heat indicators and Meat Thermometers.






119.162310 Accessories

VTC-B
Click for photos
Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

$4.93

Qty


==> All 119.162310 Accessories.
