Charbroil Quickset Traditional 463840704 Grill Parts

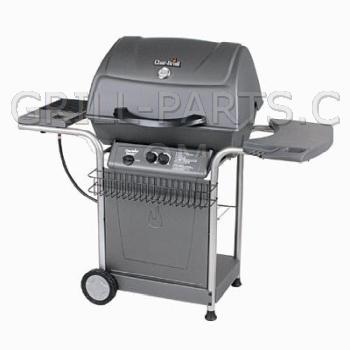

Char-Broil Quickset Traditional 8000 series 2-burner LP gas grill with side burner

Highest quality replacement parts for your Charbroil Quickset Traditional 463840704 - Free USA shipping $49 or more* - No Sales Tax*

Charbroil 463840704 owners manual and diagrams

Diagrams & owners manual not available for grill model# 463840704. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Replacement grill parts for the Charbroil Quickset Traditional 463840704

This page shows all of the parts we know fit model Charbroil 463840704. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for Charbroil grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Charbroil 463840704 BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Charbroil model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

463840704 Cooking Grids

Click for photos

Porcelain steel cooking grid for Charbroil model 463840704. Porcelain enameled, glossy finish. Sold individually.

Part Number: 55801 (Replaces Charbroil 4152778)
Dimension Front-to-Back: 14 23/32”
Dimension Side-to-Side: 26 5/8”
Material: porcelain steel wire
Weight: 6.2

==> All Charbroil Cooking Grids.

463840704 Rock/Briquette Grates

Click for photos

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-39
Dimension Front-to-Back: 11”
Dimension Side-to-Side: 25”
Material: carbon steel
Weight: 4.0

==> All Charbroil Rock/Briquette Grates.

463840704 Heat Plates

Click for photos

Stainless steel Flame Tamers for Charbroil model 463840704. Sold individually, number required varies. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0035 (Replaces Charbroil 4500291)
Dimension Front-to-Back: 25 7/8”
Dimension Side-to-Side: 5 1/2”
Material: stainless steel
Weight: 1.4

==> All Charbroil Heat Plates.

463840704 Igniter Components

Click for photos

Collector Box and electrode for Charbroil top ported TBBC & TLBBC burners.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-28B
Weight: 0.2

==> All Charbroil Igniter Components.

463840704 Knobs and Handles

Click for photos

Black control knob.

Off position D-Value: 9 o'clock
Knob diameter: 1 3/4”
Socket diameter: 8mm
Knob shaft: None

Part Number: 04470 (Replaces Charbroil 4154470)
Dimensions: 1 7/8” x 1 7/8”
Material: plastic
Weight: 0.1

==> All Charbroil Knobs and Handles.

463840704 Warming Racks

Click for photos

Universal warming rack. For use on grills with at least 22” inside dimension.

Part Number: AP-6A
Dimensions: 6” x 21 1/2”
Material: Chrome steel
Weight: 1.3

Click for photos

Chrome steel bottom warming rack for Charbroil 8000 series U-burner grills. Was used with top rack 06449 that is no longer available.
Warning:No longer made to work with upper warming rack. Does not have eyelet holes on right and left sides of warming rack to support the upper warming rack.

Part Number: 02125 (Replaces Charbroil 4152125)
Dimensions: 26 1/4” x 10 1/2”
Material: chrome steel wire
Weight: 1.14

==> All Charbroil Warming Racks.

463840704 Heat indicators and Meat Thermometers

Click for photos

Round heat indicator.

Single probe
1 13/16” diameter
Requires 3/8” mounting hole

Part Number: 00018 (Replaces Charbroil 4157171)
Dimensions: 1 13/16” x 1 13/16”
Weight: 0.1

==> All Charbroil Heat indicators and Meat Thermometers.

463840704 Accessories

Click for photos

BBQ'er choice porcelain grill briquets. The finest available.

Self-Cleaning Porcelain Briquettes.
Made of fired porcelain for even heat transfer.
Virtually indestructible.
About 56 pieces covers approximately 310 square inches.
Made in USA.

NOTE: MHP model TJK requires two (2) bags.

Part Number: BQ-3A
Weight: 4.2

Click for photos

Durable 2 5/16” round briquettes

Self-cleaning
Control flare-ups while holding an even heat pattern.
About 53 pieces, covers approximately 275 sq. inches.
Fits all gas grills

Part Number: BQ-5
Weight: 7.2

Click for photos

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

Click for photos

EZ Check Gas level indicator. Accurate from -22° to 104°F. Magnetic back. Works on all sizes of tanks.

Part Number: 00030
Weight: 0.1

12” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-1
Dimensions: 12
Weight: 0.4

==> All 463840704 Accessories.

BBQ Part Categories

Charbroil grill model 463840704 - Monday, May 20 2024
