Patio Master 415 PT415H Grill Parts

Patio Master PT415H

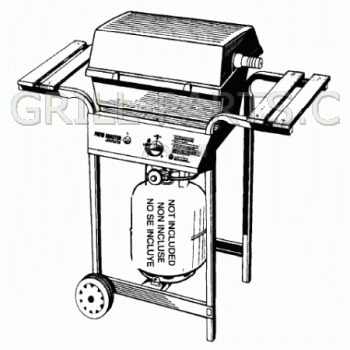

Patio Master LP gas grill with side burner, Eng code LL1111-2

Highest quality replacement parts for your Patio Master 415 PT415H - Free USA shipping $49 or more* - No Sales Tax*

Patio Master PT415H owners manual and diagrams

Click the small images on the right to view Patio Master PT415H exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Patio Master PT415H-504684F33-PartsExpS1.gif

Patio Master PT415H-504684F33-PartsExpS2.gif

Patio Master PT415H-504684F33-PartsLstS1.gif

Replacement BBQ grill parts for Patio Master 415 PT415H

All of the parts we have for Patio Master PT415H are shown on this page. We might not show the part you need here but we may still have it, or a functional equivalent. In this case, try the category buttons on the right. For example, if your looking for a heat indicator and there are none here, click the heat indicator button to see all we have for Patio Master grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Patio Master PT415H BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Patio Master model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

PT415H Venturis

L-shaped single venturi. Includes all necessary gaskets and screws/nuts.

Part Number: 71111 (Replaces Patio Master 35420110)
Dimensions: 7 1/8” x 4 1/2”
Material: zinc plated steel
Weight: 0.4

35420110 / V-12

Click for photos

Stainless steel corrugated tubing to resist rust and corrosion single venturi. O-Ring seat for positive gas seal. Flexible and adjustable from 8” to 11”. Gasket & screws not included, see part # SHK4, sold individually.

Part Number: V-12 (Replaces Patio Master 35420110)
Dimensions: 11
Material: stainless steel
Weight: .3

SHK4

Click for photos

Single Gasket Kit Economy Burners

Part Number: SHK4
Weight: 0.01

SG-B

Click for photos

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

==> All Patio Master Venturis.

PT415H Cooking Grids

04160147 / CG-31

Click for photos

Chrome plated cooking grid for Patio Master model PT415H. Made in USA.

Part Number: CG-31 (Replaces Patio Master 04160147)
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 19 1/2”
Material: Chrome steel
Weight: 2.1

==> All Patio Master Cooking Grids.

PT415H Rock/Briquette Grates

30660015 / BG-25

Click for photos

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-25 (Replaces Patio Master 30660015)
Dimension Front-to-Back: 10”
Dimension Side-to-Side: 18 1/2”
Material: carbon steel
Weight: 3.3

==> All Patio Master Rock/Briquette Grates.

PT415H Igniter Components

36110128 / UP-4B

Click for photos

Universal push-button igniter. Round male connector. Includes locking nut. Color can varies gray or black by manufacturer.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: UP-4B (Replaces Patio Master 36110128)
Weight: 0.3

03750

Click for photos

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

03751

Click for photos

Universal adapter wire with male round and female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03751
Weight: 0.05

IG-46B

Click for photos

Universal 2 1/2” adaptor wire with a round female end and a male spade end.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-46B
Dimensions: 2 1/2
Weight: 0.10

IG-5B

Click for photos

Tongue style collector box for burner mounted applications. Includes preinstalled electrode with round female connector end and 20” wire. Fits on all of our Deluxe stainless H burners (LB, SB, DLB, DSB) using special mounting bracket on these burners. Will not fit on cast iron burners (see part IG-15B for cast iron burner applications).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-5B
Weight: 0.3

IG-30B

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

IG-48B

Click for photos

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

==> All Patio Master Igniter Components.

PT415H Heat indicators and Meat Thermometers

11381

Click for photos

Universal four piece mini thermometer set. Great gift idea.

2 calibrated for steak, and 2 for chicken
Mini thermometers for testing doneness of individual cuts of meat
Silicone bezels for easy removal when hot
Always use caution when handling hot objects

Part Number: 11381
Weight: .25

==> All Patio Master Heat indicators and Meat Thermometers.

PT415H Accessories

45887

Click for photos

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

00270

Click for photos

Maple wood chips.

All natural wood smoke flavor
Great for use in BBQ's or smokers.
170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00270
Weight: 1.3

43108

Click for photos

Polished stainless steel turner with an ergonomic soft grip grey handle and red accents. Great for flipping burgers or turning delicate fish fillets.

Part Number: 43108
Dimensions: 16
Material: stainless steel
Weight: 0.10

76745

Click for photos

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

41616

Click for photos

Rib & Roast Rack.

Reversible rib rack and roast support. Made of stainless steel with a frame that holds 6 racks of ribs and a roast support for large cuts of meat.

Part Number: 41616
Material: stainless steel
Weight: 0.5

CGT

Click for photos

Cannon Grill Towel.

Part Number: CGT
Dimensions: 16” x 25”
Weight: 0.30

==> All PT415H Accessories.
