Patio Master 430 PG430HWB Grill Parts

Patio Master PG430HWB

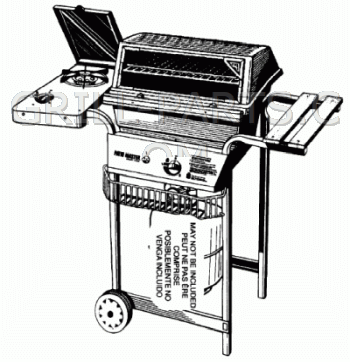

Patio Master LP gas grill with side burner, Eng code PL1934-3,PL1964-3

Highest quality replacement parts for your Patio Master 430 PG430HWB - Free USA shipping $49 or more* - No Sales Tax*

Patio Master PG430HWB owners manual and diagrams

Click the small images on the right to view Patio Master PG430HWB exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Patio Master PG430HWB-50E659FF631-PartsExpS1.gif

Patio Master PG430HWB-50E659FF631-PartsExpS2.gif

Patio Master PG430HWB-50E659FF631-PartsLstS1.gif

Replacement grill parts for Patio Master 430 PG430HWB

All of the parts we have for Patio Master PG430HWB are shown on this page. If the part you need is not shown below, try clicking the appropriate category button on the right side of the page. For example, if your looking for a Flame Tamer/Heat Plate and there are none here, click the Heat Plate button to see all of the Heat Plates we have for Patio Master grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct Patio Master PG430HWB BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Patio Master model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

PG430HWB Venturis

SG-B

Click for photos

Universal Spider Guards. Helps prevent dangerous flashback fires caused by spider webs in venturi tubes.Stainless steel spider guards slip over the air shutter on most venturi tubes to help keep the spiders out. For 3/4” venturi tubes.

Part Number: SG-B
Material: stainless steel
Weight: 0.1

L-shaped single venturi. Includes all necessary gaskets and screws/nuts.

Part Number: 71111 (Replaces Patio Master 35420110)
Dimensions: 7 1/8” x 4 1/2”
Material: zinc plated steel
Weight: 0.4

35420110 / V-12

Click for photos

Stainless steel single venturi. Flexible and adjustable from 8” to 11”. Gasket & screws not included, see part # SHK4. Sold individually.

Part Number: V-12 (Replaces Patio Master 35420110)
Dimensions: 11
Material: stainless steel
Weight: .3

SHK4

Click for photos

Single Gasket Kit Economy Burners

Part Number: SHK4
Weight: 0.01

==> All Patio Master Venturis.

PG430HWB Cooking Grids

CG-31

Click for photos

Chrome plated cooking grid for Patio Master model PG430HWB. Made in USA.

Part Number: CG-31
Dimension Front-to-Back: 11 1/4”
Dimension Side-to-Side: 19 1/2”
Material: Chrome steel
Weight: 2.1

==> All Patio Master Cooking Grids.

PG430HWB Rock/Briquette Grates

00853001 / BG-25

Click for photos

Rock grate for holding lava rock or ceramic briquettes.

Part Number: BG-25 (Replaces Patio Master 00853001)
Dimension Front-to-Back: 10”
Dimension Side-to-Side: 18 1/2”
Material: carbon steel
Weight: 3.3

==> All Patio Master Rock/Briquette Grates.

PG430HWB Igniter Components

IG-30B

Click for photos

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

IG-48B

Click for photos

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

IG-5B

Click for photos

Tongue style collector box for burner mounted applications. Includes preinstalled electrode with round female connector end and 20” wire. Fits on all of our Deluxe stainless H burners (LB, SB, DLB, DSB) using special mounting bracket on these burners. Will not fit on cast iron burners (see part IG-15B for cast iron burner applications).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-5B
Weight: 0.3

UP-9B

Click for photos

Snap In Piezo Ignitor. Fits Weber Genesis Silver A,B,C and Newer Spirit E310 & E320.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: UP-9B
Weight: 0.2

36110126 / 03120

Click for photos

Push-Button self-grounding piezo spark generator; requiers 3/4” mounting hole. Primary connector is a round male connector, so connecting wire needs to be female round connector. If needed, see part# 03199C for a short adapter wire that converts flat female spade connectors to female round. Secondary connector is a flat male spade connector used to conduct spark to a secondary electrode, such as a side burner, or used as a ground in some applications. See ground wire part# 03620. For more information, see our article Ignition 101.

Part Number: 03120 (Replaces Patio Master 36110126)
Weight: 0.1

03199C

Click for photos

Universal 2 3/4” adaptor wire with a round female end and a male spade end that has a protective cover.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03199C
Weight: 0.05

03750

Click for photos

20” Ignitor adapter wire with female spade connector and male round connector. Used primarily on Ducane models 7100 and 7200 to extend the wire from the 03758 collector box and electrode to the electronic spark generator (igniter).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03750
Dimensions: 1/16
Weight: 0.05

03751

Click for photos

Universal adapter wire with male round and female spade connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03751
Weight: 0.05

==> All Patio Master Igniter Components.

PG430HWB Accessories

BQ-5

Click for photos

Durable 2 5/16” round briquettes

Self-cleaning
Control flare-ups while holding an even heat pattern.
About 53 pieces, covers approximately 275 sq. inches.
Fits all gas grills

Part Number: BQ-5
Weight: 7.2

45887

Click for photos

Natural lava rock processed and screened for uniformity. 7 lb. bag is enough for all full sized grills. Click the photo to find easy steps for installing lava rocks.

Part Number: 45887
Material: pummise
Weight: 7.0

BP-5

Wundersmoke Mesquite Chips. These unique mesquite wood smoking chips add distinctive flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-5
Weight: 1.0

40240

Click for photos

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Material: chrome steel
Weight: 0.9

BRGG

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

WB-8RH

Click for photos

Replacement brass bristle brush head for WB-8 brush. Screws included.

Part Number: WB-8RH
Dimensions: 18 1/2
Material: stainless steel
Weight: 0.2

==> All PG430HWB Accessories.
