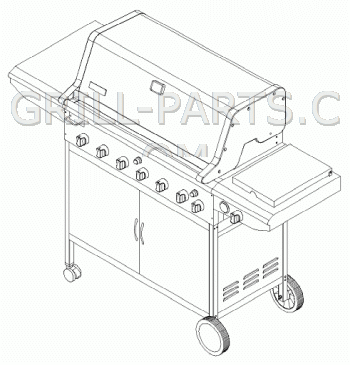

Kenmore 141.153373 Grill Parts

Cast iron burner for Kenmore model 141.153373. Fits Sears/Kenmore premium grills with rail style burners.


Part Number: CIKR (Replaces Kenmore P02001006C)
Dimensions: 12 7/8” x 2 1/8”
Material: cast iron
Weight: 2.0

Cast iron cooking grids for Kenmore model 141.153373. SET OF TWO (2) panels.

• Porcelain treated, matte finish
• Each panel measures 16 1/2” x 11 3/8”
• Overall dimensions: 16 1/2” x 22 3/4”

Part Number: CG-92P-CI-X2 (Replaces Kenmore P01615027E)
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 22/4”
Material: cast iron
Weight: 20

Cooking Grid 304 Grade Stainless Steel for Kenmore model 141.153373.225” Rods.

Part Number: CG-51SS
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 1/4”
Material: stainless steel
Weight: 3.50

Cast Iron cooking grid for Kenmore model 141.153373.

Part Number: CG-92P-CI
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 11 3/8”
Material: cast iron
Weight: 7.15

Premium quality stainless steel cooking grids for Kenmore model 141.153373. SET OF TWO (2). Far superior to the porcelain coated steel grids it replaces.

• Made in USA
• 304 commercial grade stainless steel
• .225 diameter solid stainless rods

• Each panel measures 16 1/2” x 11 1/4”
• Overall dimensions: 16 1/2” x 22 1/2”

.

Part Number: CG-51SS-X2
Dimension Front-to-Back: 16 1/2”
Dimension Side-to-Side: 22 1/2”
Material: stainless steel
Weight: 7.0

Stainless steel heat plate/ Flame Tamer for Kenmore model 141.153373.

Part Number: KENHP1 (Replaces Kenmore P01705016E)
Dimension Front-to-Back: 13 1/8”
Dimension Side-to-Side: 10 9/16”
Material: stainless steel
Weight: 1.0

SET OF THREE/3 PACK Stainless steel heat plate/Flame Tamer for Kenmore model 141.153373. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0154-X3
Dimension Front-to-Back: 13 3/16”
Dimension Side-to-Side: 10 5/8”
Material: stainless steel
Weight: 5.76

Stainless steel heat plate/Flame Tamer for Kenmore model 141.153373. Made in USA.

NOTE: Sometimes shipped with vinyl peel-off coating. Remove before use.

Part Number: CLA-TS0154
Dimension Front-to-Back: 13 3/16”
Dimension Side-to-Side: 10 5/8”
Material: stainless steel
Weight: 1.92

Collector box and electrode assembly. fits many kenmore models usinf rail style cast iron burners (Command Flame and Command Flame II systems). The collector box is 4”.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-16B (Replaces Kenmore P02605013C)
Dimensions: 4
Weight: 0.2

Battery powered push button igniter.

• Has four (4) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB4-B (Replaces Kenmore P02502024C)
Weight: 0.3

Battery powered push button igniter.

• Has two (2) spade type male connectors.
• Uses 1 AAA battery (not supplied)
• Requires 3/4” or 13/16” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IGEIB2-B (Replaces Kenmore P02502012C)
Weight: 0.3

Push-button electronic igniter with two (2) spade connectors. Black cap. 1 AAA battery (not included).

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: TS-IG2006
Weight: 0.2

Push-button electronic igniter with four (4) spade connectors. Black cap. Uses one AAA battery (not included). Requires a 3/4” mounting hole.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

This part is currently out of stock, but more are already on the way and expected to arrive late May

Part Number: TS-IG4010
Weight: 0.2

46” Wire with female spade connectors and square plastic connectors.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-30B
Dimensions: 46
Weight: 0.1

16” Universal Ignitor Wire

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-48B
Dimensions: 16
Weight: 0.05

Black control knob to fit Kenmore models.

Part Number: 03430 (Replaces Kenmore P03412331C)
Dimensions: 2 3/16” x 2 3/16”
Material: plastic
Weight: 0.2

Clamp-on brass gas valve with straight outlet. Includes orifice.

• D-Value: 12 o'clock
• Stem diameter: 6mm
• Stem length: 1 3/4”

Includes orifice with #72 starter hole. Must be drilled to proper drill size.

Part Number: 3700C (Replaces Kenmore Y0060094)
Dimensions: 4 15/16” x 2 1/8”
Material: brass
Weight: 0.5

Neoprene valve gasket for clamp-on gas control valves. 19mm.

Part Number: 00019
Dimensions: 0 1/2” x 0 1/4”
Material: neoprene
Weight: 0.01

Brass orifice. 6mm x 3/4” cone shaped orifice with #64 drill size starter hole. For Electec and other clamp-on valves. Must be drilled to proper drill size.

If you would like us to drill the orifice(s) for you, there is a single $15 fee for this service, which will be added to the order when processed. Please tell us the number of burners in your grill and the total BTUs of your grill (less side burner and rotisserie burner, if any). BTU rating information can usually be found on the grill's CSA certification tag, located somewhere on the grill. Please furnish this, along with any other information you deem relevant, in the Message to CLA box during checkout.

Part Number: 31400
Dimensions: 0 3/4” x 0 5/16”
Material: brass
Weight: 0.01

Apple wood chips.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with portk, lamb, poultry, and fish.

Part Number: 00230
Weight: 2.0

20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.

Part Number: 40269
Material: stainless steel
Weight: 0.14

Shish-ke-bab set. 6 chrome plated 14” skewers with convenient folding rack; folds out to 10” x 13 3/4”.

Part Number: 41338
Weight: 1.1

Deluxe 13” basting mop with hardwood handle and cotton mop head. Great for spreading BBQ sauces, marinades, and glazes on meat and poultry.

Part Number: 42055
Dimensions: 13
Weight: 0.2

Porcelain Coated Square Wok Topper.
12” x 12” x 2” porcelain coated grilling wok with stainless steel handles and perforations. The single draw design improves functionality and rigidity, it also makes it much easier to clean.

Part Number: 98121
Dimensions: 12” x 12”
Material: porcelain steel
Weight: 1.6

Grill Mitt With Neoprene Palm.

16 in. silicone mitt diffuses heat away from the hand and washes easily. Black palm / red colored cuff. Cotton lined.
*One Size Fits Most

Part Number: 90963
Weight: 0.2
