GrillPro 286164 Grill Parts

GrillPro logo

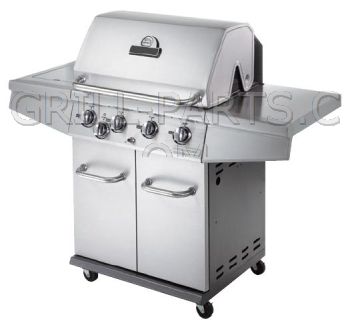

GrillPro 286164



Highest quality replacement parts for your GrillPro 286164 - Free USA shipping $49 or more* - No Sales Tax*



GrillPro 286164 owners manual and diagrams
Click the small images on the right to view GrillPro 286164 exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!



GrillPro 286164-441383633-PartsExpS1.gif  GrillPro 286164-441383633-PartsExpS2.gif  GrillPro 286164-441383633-PartsLstS1.gif  GrillPro 286164-441383633-PartsLstS2.gif

Replacement grill parts for the GrillPro model: 286164
This page shows all of the parts we know fit model GrillPro 286164. If the part you're shopping for isn't included below, you might find it using the category buttons on the right side of the page. For example, if your looking for a burner and there are none here, click the burner button to see all the burners we have for GrillPro grills. You will need to know the dimensions of your existing grids to help you find the right part.

To get the correct GrillPro 286164 BBQ parts
  • You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
  • Verify your GrillPro model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.



286164 Burners

22909-104
Click for photos
Genuine OEM GrillPro stainless steel Dual-Tube burner for GrillPro model 286164. This part has been slightly changed by the manufacturer to include a small bend at the end that does not affect the fit on existing grills that use this part.

Note: The adjustable air shutter on this burner should be set to 1/3 open for LP grills, 2/3 open for natural gas grills. The burner ships with the air shutter set 1/3 open for LP grills.

This burner is the same part as 22909-104NG and 22909-104LP. There is no difference in the parts, 22909-104NG has the air shutter set to 2/3 open for natural gas, 22909-104LP has the air shutter set to 1/3 open for LP.

Part Number: 22909-104
Dimensions: 17 1/8” x 1 1/4”
Material: Stainless steel
Weight: 1.0

$34.10

Qty


Side burner lid IR stainless steel for GrillPro model 286164. Sometimes shipped with vinyl peel-off coating; remove before use.

Part Number: 23000-253
Dimensions: 14 1/4” x 11 3/16”
Material: stainless steel
Weight: 1.6

$19.17

Qty


==> All GrillPro Burners.






286164 Cooking Grids

22005-181-R
Click for photos
Cast iron cooking grid for GrillPro model 286164.
  • Sold individually
  • Number required varies, check your grill
  • Porcelain enameled, glossy finish


Part Number: 22005-181-R
Dimension Front-to-Back: 19 1/16”
Dimension Side-to-Side: 12 1/2”
Material: Cast iron
Weight: 7.5

$59.36

Qty


==> All GrillPro Cooking Grids.






286164 Heat Plates

22209-904
Click for photos
Genuine OEM GrillPro stainless steel Flav-R-Wave heat plate / Vaporizer for GrillPro model 286164. The manufacturer has redesigned this Flav-R-Wave. It is still the functional OEM GrillPro replacement part, and it is sometimes marketed as part number 18433.

Part Number: 22209-904
Dimension Front-to-Back: 17 1/2”
Dimension Side-to-Side: 5 7/8”
Material: Stainless steel
Weight: 1.15

$21.50

Qty


==> All GrillPro Heat Plates.






286164 Igniter Components

10342-246
Click for photos
Genuine OEM GrillPro electronic push-button 3-spade igniter.
  • Uses AAA battery (not included)
  • .Requires 3/4” mounting hole

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-246
Weight: 0.6

$18.49

Qty


22205-024
Click for photos
Genuine OEM GrillPro rear collector box.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 22205-024
Dimensions: 27 1/8”
Material: stainless steel
Weight: 0.9

$17.31

Qty


22225-014A
Click for photos
Genuine OEM GrillPro front collector box, top & bottom combo. Includes top 22215-014 and bottom 22225-014. This part has been redesigned by the manufacturer and is now a little shorter but still fully functional in the original grills. Fits 4-Burner grills.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 22225-014A
Dimensions: 21 5/8
Material: stainless steel
Weight: 1.2

$28.90

Qty


10342-T10
Click for photos
Genuine OEM GrillPro electrode and wire for side burner.

For more information about ignition systems and components, please see article Ignition 101 in our help center.



Part Number: 10342-T10
Weight: 0.3

$10.01

Qty


==> All GrillPro Igniter Components.






286164 Grease Trays

27249-904
Click for photos
Small grease shield used in-between each burner. Four of these replaces one grease shield # 27245-904. Four of these also replaces one grease shield # 22245-901and five of these replaces one grease shield # 27246-904. Refer to your model number and owner's manual. SOLD INDIVIDUALLY

Part Number: 27249-904
Dimensions: 6 1/2” x 6”
Material: stainless steel
Weight: .35

$7.60

Qty


22009-901
Click for photos
Genuine OEM GrillPro Porcelain Grease Pan.

Part Number: 22009-901
Dimensions: 6 1/2” x 5 1/8”
Weight: .45

$15.12

Qty


==> All GrillPro Grease Trays.






286164 Knobs and Handles

24005-12A
Click for photos
LID-HANDLE BENT 500 430 SS. NOTE: The mounting holes, center to center, are 23 1/2” apart.

Part Number: 24005-12A
Dimensions: 25
Weight: .85

$25.87

Qty


==> All GrillPro Knobs and Handles.






286164 Wheels and Castors

10892-25
Click for photos
Genuine OEM GrillPro caster, locking.

Part Number: 10892-25
Weight: 0.85

$12.71

Qty


==> All GrillPro Wheels and Castors.






286164 Warming Racks

22006-991
Click for photos
Genuine OEM GrillPro porcelain coated warming rack.

Part Number: 22006-991
Dimensions: 32 5/8” x 8 1/2”
Material: porcelain steel
Weight: 6.0

$50.08

Qty


==> All GrillPro Warming Racks.






286164 Heat indicators and Meat Thermometers

10571-6
Click for photos
Genuine OEM GrillPro Heat indicator. About 2 3/8” wide and 2” high. The threaded stem is about 5 /16” diameter and 1 1/8” long.

Part Number: 10571-6
Weight: 0.12

$17.77

Qty


==> All GrillPro Heat indicators and Meat Thermometers.






286164 Miscellaneous Repair Parts

S21233
Click for photos
Hinge pin clip.

Part Number: S21233
Weight: 0.01

$1.08

Qty


Y-11230
Click for photos
Cotter pin

Part Number: Y-11230
Weight: 0.01

$1.08

Qty


22005-91
Click for photos
Control panel heat shield. One required per grill.

Part Number: 22005-91
Weight: 1.3

$13.06

Qty


S21255
Click for photos
Washer

Part Number: S21255
Weight: 0.01

$1.08

Qty


21039-905
Click for photos
Genuine OEM GrillPro caster bracket

Part Number: 21039-905
Dimensions: 22 5/8” x 4 1/2”
Weight: 2.6

$16.60

Qty


==> All GrillPro Miscellaneous Repair Parts.






286164 Hardware

Y-11231
Click for photos
LID BUMPER

Part Number: Y-11231
Weight: 0.01

$1.08

Qty


==> All GrillPro Hardware.






286164 Cart Parts

21095-445
Click for photos
LOWER BASE SMALL LP 500

Part Number: 21095-445
Weight: 8.8

$48.68

Qty


==> All GrillPro Cart Parts.






286164 Accessories

40269
Click for photos
20” Professional Extra Long Tong.
20” Stainless steel tong with red soft grip rubber inserts. Grip your food on the grill with ease. Manual lock saves on storage space.


Part Number: 40269
Material: stainless steel
Weight: 0.14

SALE  $14.95
Qty


==> All 286164 Accessories.
