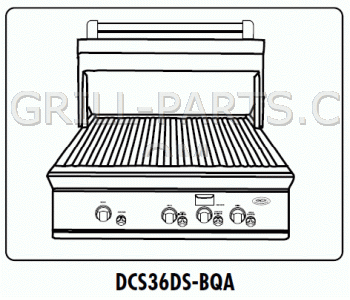

DCS DCS36DS-BQA Grill Parts

30639-1-R Smoker burner for DCS model DCS36DS-BQA.
Stainless steel replacement smoker burner.

Fits DCS BG36, BG48, BGGA36, BGA48, BGB36, and BGB48 Professional Series grills. Replaces original DCS part# 30639-1.

.

Part Number: DCS-30639-1-R1 (Replaces DCS DCS-30639-1)
Dimensions: 18” x 1”
Material: stainless steel
Weight: 1.0

32217-R SS GRILL BURNER for DCS model DCS36DS-BQA.
Premium quality stainless steel replacement tube burner.

Fits older BG27, BG36, BG48, BGA27, DCS27DS, DCS27FS, DCS36DS, DCS36E, and DCS48DS Professional Series grills by Dynamic Cooking Systems. Relaces original DCS part# 32217.

Part Number: DCS-32217-R (Replaces DCS DCS-32217)
Dimensions: 19 1/4” x 6”
Material: stainless steel
Weight: 3.9

304 Stainless steel 15,000 BTU infrared rotisserie burner for DCS model DCS36DS-BQA. For use with LP and natural gas grills. Orifice not included. Use old orifice or purchase our orifice part number CLA-VB0245 that can be drilled for natural gas or LP gas

Dimensions:

• Maximum overall length, including mounting tab on one end: 20 7/8”
• Maximum width: 3 3/8”

Part Number: CLA-BS0250 (Replaces DCS DCS-12021-2)
Dimensions: 3 3/8” x 20”
Material: stainless steel and ceramic
Weight: 3.50

304 Stainless steel 15,000 BTU infrared rotissierie burner for DCS model DCS36DS-BQA. For use with both liquid propane (LP) and natural gas grills. Includes collector box. Orifice not included. Use old orifice or purchase our orifice part number CLA-VB0245 that can be drilled for for natural gas or LP.

Dimensions:

• Maximum overall length, including mounting tab on one end: 20 7/8”
• Maximum width: 3 3/8”

Part Number: CLA-BS0358
Dimensions: 3 3/8” x 20”
Material: stainless steel and ceramic
Weight: 3.50

18197-01-R Heavy duty stainless steel cooking grate for DCS model DCS36DS-BQA. Fits 36DBQ and DCS36DS Professional Series gas grills by Dynamic Cooking Systems. Sometimes referred to asGrate 36 S/S.

• Replaces DCS factory part# 18197-01.
• Large diameter 5/16” stainless steel rods.
• C ommercial grade 304 stainless steel.
• Sold individally.

Part Number: DCS-18197-01-R (Replaces DCS DCS-18197-01)
Dimension Front-to-Back: 20 1/2”
Dimension Side-to-Side: 10 3/8”
Material: stainless steel
Weight: 10.2

32218-R Radiant.
Stainless steel Radiant. Sometimes called Radiant Tray. Fits BG27, DCS27FS, DCS36DS, DCS36E and DCS48DS Professional Series grills by Dynamic Cooking Systems.

• Replaces factory part# DCS-32218
• Includes 32264 Radiant Cap/Lock & Hardware
• Premium grade 304 stainless steel
• Holds 18 ceramic rods
• Sold individually, number required varies by grill

Part Number: DCS-32218-R (Replaces DCS DCS-32218)
Dimensions: 18 5/8” x 9 7/8”
Material: stainless steel
Weight: 3.3

DCS Electrode with wire.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-37B (Replaces DCS DCS-13012-6)
Weight: 0.2

Gas collector box assembly. Includes collector box, ceramic electrode, and wire. Fits both left and right hand side.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: IG-33B (Replaces DCS DCS-32210-01)
Weight: .05

16190-R KIT, ROTARY IGNITER & KNOB BBQ. Single outlet rotary igniter for DCS Professional Series grills by Dynamic Cooking Systems.

• Replaces factory part# 16190
• Includes Igniter, knob, and mounting screws

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: DCS-16190-R (Replaces DCS DCS-16190)
Weight: 0.2

Type 1 LP Regulator with 22” Pressure Hose and 3/8” Female Flare Fitting.FITS: Up to 60,000 BTUs

Part Number: HR-4B (Replaces DCS DCS-13230)
Weight: 0.8

Brass valve for DCS.

• For LP and natural gas grills (see below)
• Off position D-Value: 12 o'clock
• Stem diameter: 8mm
• Orifice not included

NOTE: There is a set screw in the stem that allows this valve to be used in both LP or natural gas grills. The valve is shipped with the screw set in LP position. Turn the screw counterclockwise about seven turns for natural gas use.

Part Number: 30171 (Replaces DCS DCS-13017)
Dimensions: 3 7/16” x 1 5/16”
Material: brass
Weight: 0.3

Orifice for infrared burners with starter hole #63 if you need to drill the hole. Includes brass elbow with 1/4” compression fitting.

NOTE: If you need the orifice pre-drilled for Natural Gas or LP Gas, during check-out, in the message box, please state that you need the orifice drilled for Natural Gas #55 or for LP Gas #59.

Part Number: CLA-VB0245
Dimensions: 3 3/8” x 17 1/4”
Material: stainless steel and ceramic
Weight: 0.3

Universal durable battery operated rotisserie motor. Conveniently eliminates the need for electric cords. Runs on 2 D cells (not included).

Part Number: RO-4
Weight: 1.0

GrillPro Wood chips from genuine oak whiskey barrels.

• All natural wood smoke flavor
• Great for use in BBQ's or smokers.
• 170 cubic inches (2 lbs. approx) in resealable bag

Try with beef, burgers, pork, lamb, poultry, and fish.

Part Number: 00215
Weight: 2.0

16” Stainless Steel Tong/Turner Combination. 16” multi-use tool with red soft grip rubber inserts. Can be used as a turner, tong or both. Manual lock saves on storage space.

Part Number: 40240
Dimensions: 16” x 4”
Material: chrome steel
Weight: 0.9

GrillPro ® grid lifter removes both cast and stainless cooking grids.

One set of tines to remove cast and another to remove stainless cooking grids.

Stainless tip, resin handle.

Part Number: 76745
Material: stainless
Weight: .2

Stainless Steel Basting Set.

Measurements inside the stainless steel bowl for accurate sauce preparation. Includes silicone basting brush.

Part Number: 14913
Material: stailess steel
Weight: 0.5

18” long wood handle brass bristle grid brush with scraper and leather hang strap.

Part Number: WB-3
Dimensions: 18
Weight: 0.59
