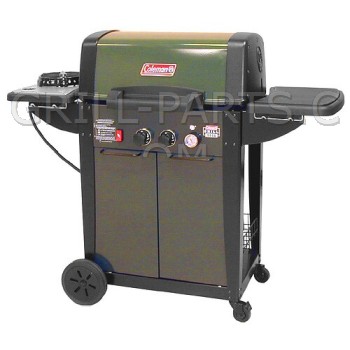

Coleman 2000 LG200-EDB Grill Parts

Highest quality replacement parts for your Coleman 2000 LG200-EDB - Free USA shipping $49 or more* - No Sales Tax*

Coleman LG200-EDB owners manual and diagrams

Click the small images on the right to view Coleman LG200-EDB exploded parts diagrams and parts lists. Owners manual not available. If you have a manual you're willing to share, please click here to send us an email with the attached manual. Thank You!

Coleman LG200-EDB-4CE4999CB630-PartsExpS1.jpg

Coleman LG200-EDB-4CE4999CB630-PartsLstS1.jpg

Replacement grill parts to fit Coleman 2000 LG200-EDB

This page shows all of the parts we know fit model Coleman LG200-EDB. If you can't find the part you need below, click on the appropriate category button on the right side of the page. For example, if your looking for an ignitor, or other ignition components, and there are none here, click the ignition button to see what we have for Coleman grills. Knowing the dimensions of your existing part will help you find the right part.

To get the correct Coleman LG200-EDB BBQ parts

You should measure your existing parts and compare them to what we show here. This is best done with them removed from the grill.
Verify your Coleman model number by checking the CSA appliance tag on your grill to make sure you have the correct model number. Do not rely solely on the owners manual as these are frequently mixed up at retail stores when the grills are assembled. You'd be surprised at how many folks have the wrong owners manual.

LG200-EDB Burners

Click for photos

Standard stainless steel burner and venturi assembly for Coleman model LG200-EDB.

Part Number: SBT-21 (Replaces Coleman 10030-5611)
Dimensions: 21”
Material: stainless steel
Weight: 3.0

==> All Coleman Burners.

LG200-EDB Cooking Grids

Click for photos

Cast iron cooking grids for Coleman model LG200-EDB. SET OF TWO (2) panels.

Porcelain treated, matte finish
Each panel measures 15” x12”
Overall dimensions: 15” x24”

Part Number: CG-61P-CI-X2 (Replaces Coleman 10020-5441)
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 24”
Material: cast iron
Weight: 12.9

Click for photos

Cast iron cooking grid for Coleman model LG200-EDB. Porcelain treated, matte finish. Sold individually, number required varies by grill model

Part Number: CG-61P-CI
Dimension Front-to-Back: 15”
Dimension Side-to-Side: 12”
Material: cast iron
Weight: 6.45

Click for photos

Stainless steel steel cooking grid for Coleman model LG200-EDB. Made in USA.

Part Number: CG-52SS
Dimension Front-to-Back: 15 1/16”
Dimension Side-to-Side: 25 1/4”
Material: stainless steel
Weight: 6.9

==> All Coleman Cooking Grids.

LG200-EDB Heat Plates

Heat Plate/ Flame Tamer not known for Coleman model LG200-EDB. Our parts information for this grill model is incomplete, and we really don't know with certainty which heat plate fits this model. It may be that we have the part but don't show it here due to data or other error.

If you know the original OEM part number, try searching for it in the search box at the top of this page.

You can also browse through all of the heat plates we carry for your brand grill. If we don't have the exact fit for your grill, we may have a suitable replacement part. Measure your existing part so you'll know exactly what size is needed.

If you have this grill model and know the number and dimensions of your original heat plates, click here to send an email to our GrillDr that includes this information. We greatly appreciate your help.

Part Number: HP-DUMMY
Weight: 1.0

==> All Coleman Heat Plates.

LG200-EDB Accessories

Click for photos

Universal Grid Lifting Tool

Part Number: BRGG
Weight: 1.0

Click for photos

Venturi Tube 12” Brush. Recommended by all grill manufacturers. Specially designed flexible brush to clean venturis of spider webs and other obstructions that can cause flashback fires. Stainless steel.

Part Number: VTC-B
Material: stainless steel
Weight: 0.3

==> All LG200-EDB Accessories.
