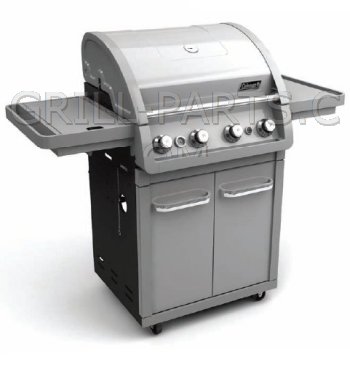

Coleman Even Heat G52212 Grill Parts

Cast iron cooking grids for Coleman model G52212. Porcelain treated, flat matte finish. Sold as a set of three (3).

Part Number: 65253
Dimension Front-to-Back: 18 3/8”
Dimension Side-to-Side: 26 7/16”
Material: matte cast iron
Weight: 16.5

Porcelain steel Heat Distribution Plate for Coleman model G52212. Sold individually.

Part Number: 93331
Dimension Front-to-Back: 16”
Dimension Side-to-Side: 5 13/16”
Material: porcelain steel
Weight: 1.4

Ignition module switch for spark generators that accept wired remote (button) trigger switches. Fits our spark generator part numbers 03322, 03332, 03344, 03352, 03356, 03387 and 03388.
Includes:

• Push-button ignition module switch with two male spade connectors on back
• Two 20” wires with female spade connectors
• One plastic mounting nut

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03152
Dimensions: 17 3/4” x 1”
Weight: 0.1

round trigger switch for AA and AAA spark generators; use original wires

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03153
Dimensions: 17 3/4” x 1”
Weight: 0.1

Battery powered ignitor/spark generator for Surefire electronic ignition systems using remote button/trigger switch.

Note: Some original ignitors (spark generators) that 03352 replaces had an integrated/built-in ground wire which is not present on this part (03352). If the ignitor you are replacing has an integrated/built-in ground wire, you will also need our ground wire part 03621. Inspect your system.

• 1.5 volt
• Has five (5) spark outlets (male spade connector)
• Has two (2) male spade connectors for the button/trigger switch part 03152 (sold separately)
• Uses a single AA battery (not included)
• Requires 7/8” mounting hole
• Overall dimensions: 2” x 3 3/8” x 2 5/8”

NOTE: The battery cap is not a push button. The ignitor is fired by a remote button/trigger switch.

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 03352
Dimensions: 3 3/8” x 2”
Weight: 0.7

electrode

For more information about ignition systems and components, please see article Ignition 101 in our help center.

Part Number: 05223
Material: ceramic
Weight: 0.1

Round 2 3/8” diameter heat indicator, includes one wing nut and one locking nut.

• Requires minimum 3/8” mounting hole
• Single 1 3/8” probe
• Threaded portion of probe stops at 1/2” from base
• See photo for details

Part Number: 00012
Dimensions: 2 3/8” x 2 3/8”
Weight: 0.1

Wundersmoke Hickory Chips. These unique hickory wood smoking chips add distinctive hickory wood flavoring to your food. For use will all grills. Comes with reusable puck. One 1lb bag.

Part Number: BP-6
Weight: 1.0

Stainless steel flipper. The ultimate spatula tool, specially curved for perfect flips every time. 18” overall.

Part Number: SF-1
Dimensions: 18
Material: stainless steel
Weight: 0.4

Aluminum foil grilling trays. Package of three.

• Heavy duty aluminum foil
• Re-usable
• Great for grilling delicate foods like fish and veggies

Part Number: 50426
Dimensions: 9” x 13”
Weight: 0.4

Scrub brushes. Plastic grill scrubber. Cleans all types of cooking grids. Plastic grip handle.

Part Number: WB-7
Dimensions: 6” x 3 1/2”
Weight: 0.2
